Chapter 9: Installing, Removing, and Replacing Components
Removing and Replacing a Tape Drive
290 Quantum Scalar i40 and Scalar i80 User’s Guide

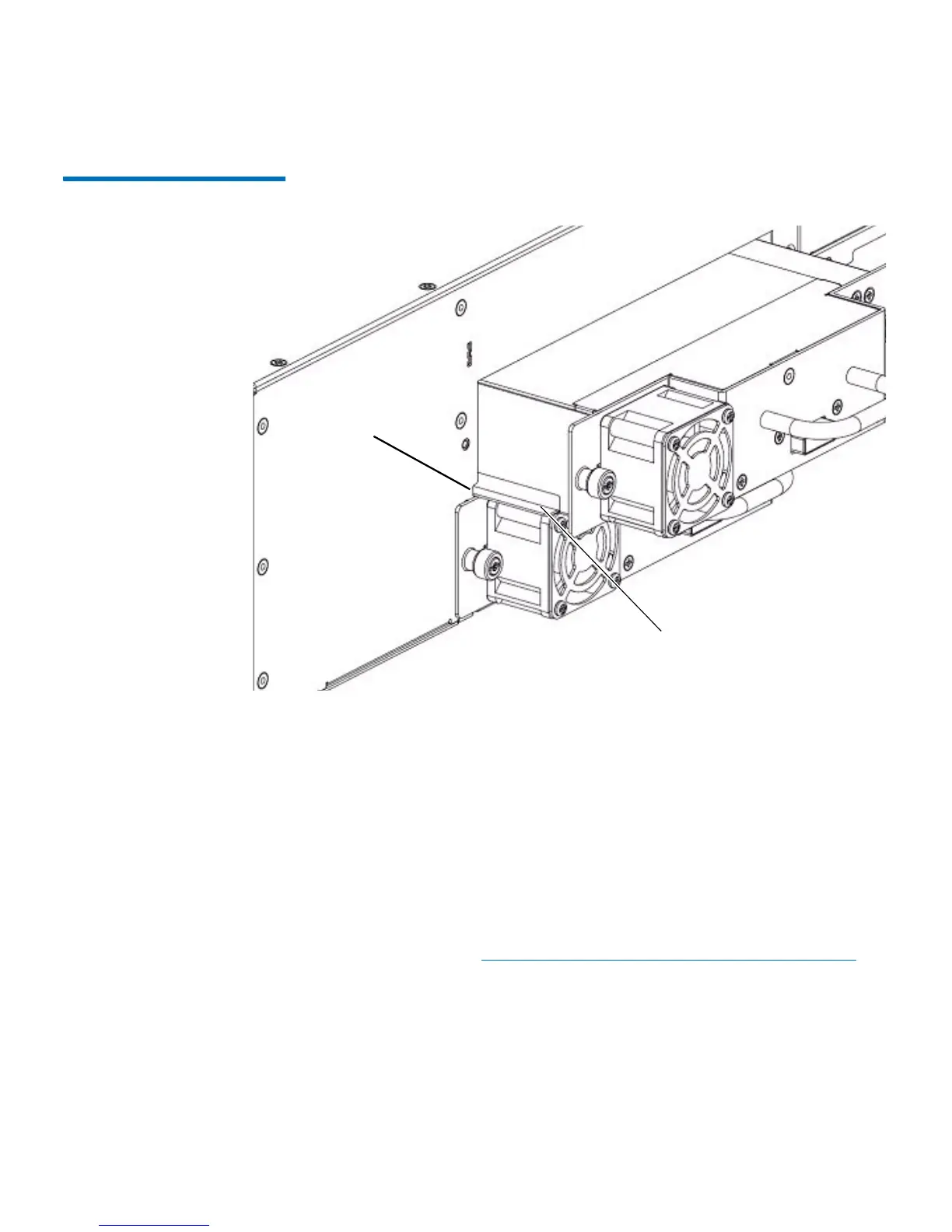

Figure 72 Installing a Tape
Drive
Notch in library
chassis
Drive sled “shelf”
slides in notch
3 Tighten the tape drive’s captive thumbscrews finger tight to secure
the tape drive to the library chassis.
The tape drive LED illuminates red for up to 30 seconds. Then the
tape drive
fan starts and the LED turns amber, indicating the tape
drive is offline. If this is a new installation (not a replacement), the
tape drive will come online automatically.
4 Conne
ct the tape drive cable from the tape drive to the host.
5 If
the firmware on the newly installed tape drive is different from
the standard configured on the library, the library will automatically
autolevel the new tape drive’s firmware upon installation (for more
information, see
Updating and Autoleveling Tape Drive Firmware on
page 303).
Autoleveling takes about 7 minutes. A message
displays on the
operator panel indicating autoleveling is taking place.
If autoleveling is not required, the tape drive takes about 2 minutes
to come r
eady.

Quantum Scalar i80 Specifications

General

Power supply type	AC
Power requirements	100 – 240V, 50/60Hz
Power consumption (typical)	200 W
Dimensions (WxDxH)	445 x 793 x 264 mm
Media types supported	2x LTO-4
Maximum supported storage capacity	128 TB
Storage temperature (T-T)	-40 - 60 °C
Operating temperature (T-T)	10 - 35 °C
Operating relative humidity (H-H)	20 - 80 %
Media type	Tape Cartridge
Form factor	6U
Product type	Storage auto loader & library
Certification	IEC 60950, Class A / FCC part 15, ICES-003, CISPR 22, EN55022 Class A, VCCI, CNS 13438, KN22, AS/NZS CISPR 22, EN61000-3-2, EN61000-3-3 EN55024, KN24 CE, VCCI, GS, FCC, ICES, NRTL, GOST, BSMI, KCC
Product color	Black
Standard interfaces	Fiber Channel

Weight and Dimensions

Weight	23800 g
