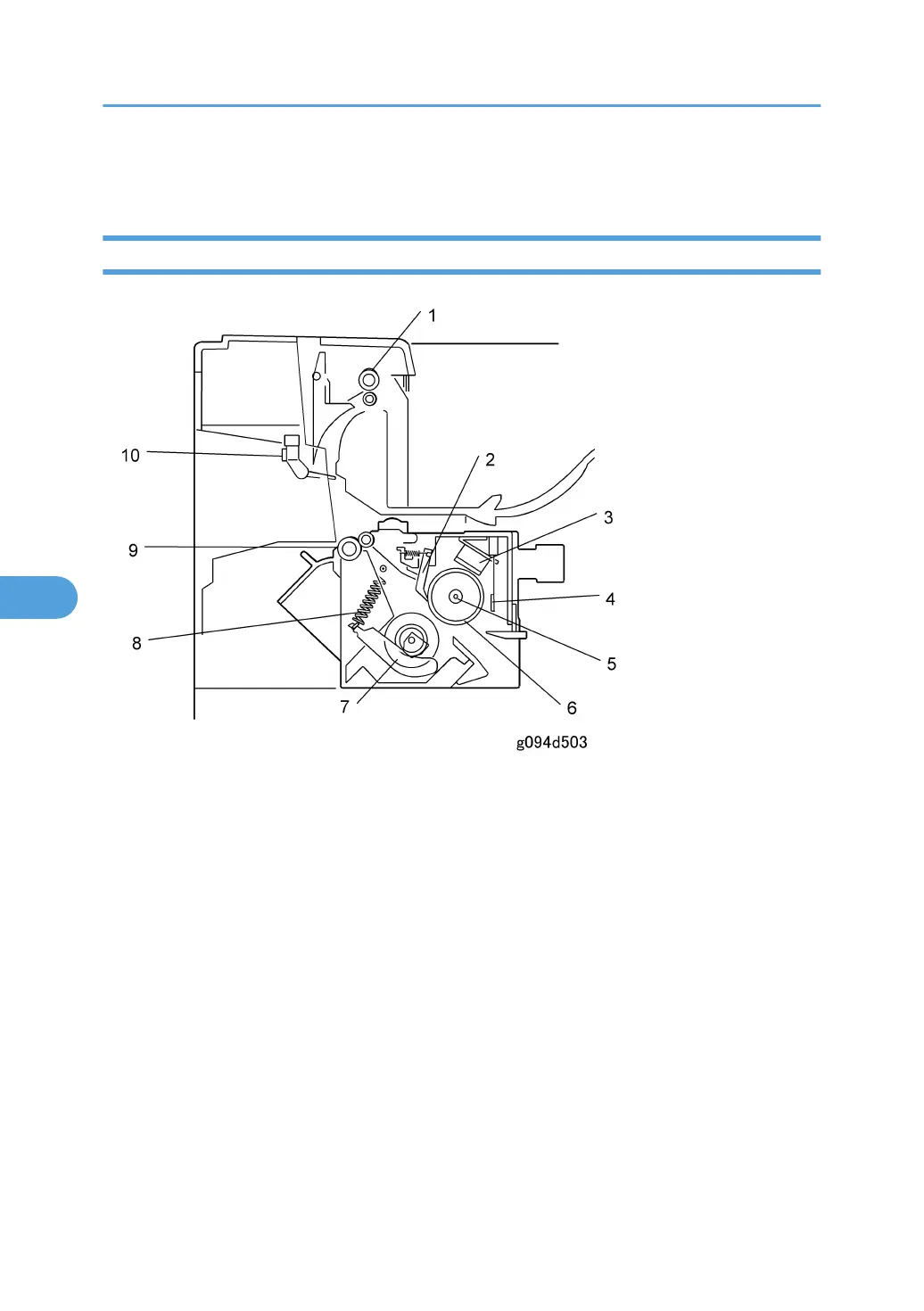

Image Fusing and Paper Exit
Overview
1. Paper exit roller
2. Hot roller strippers
3. Thermostat
4. Thermistor
5. Fusing lamp
6. Hot roller
7. Fusing pressure roller
8. Pressure spring
9. Fusing exit roller
10. Paper exit sensor
6. Details
188
6
