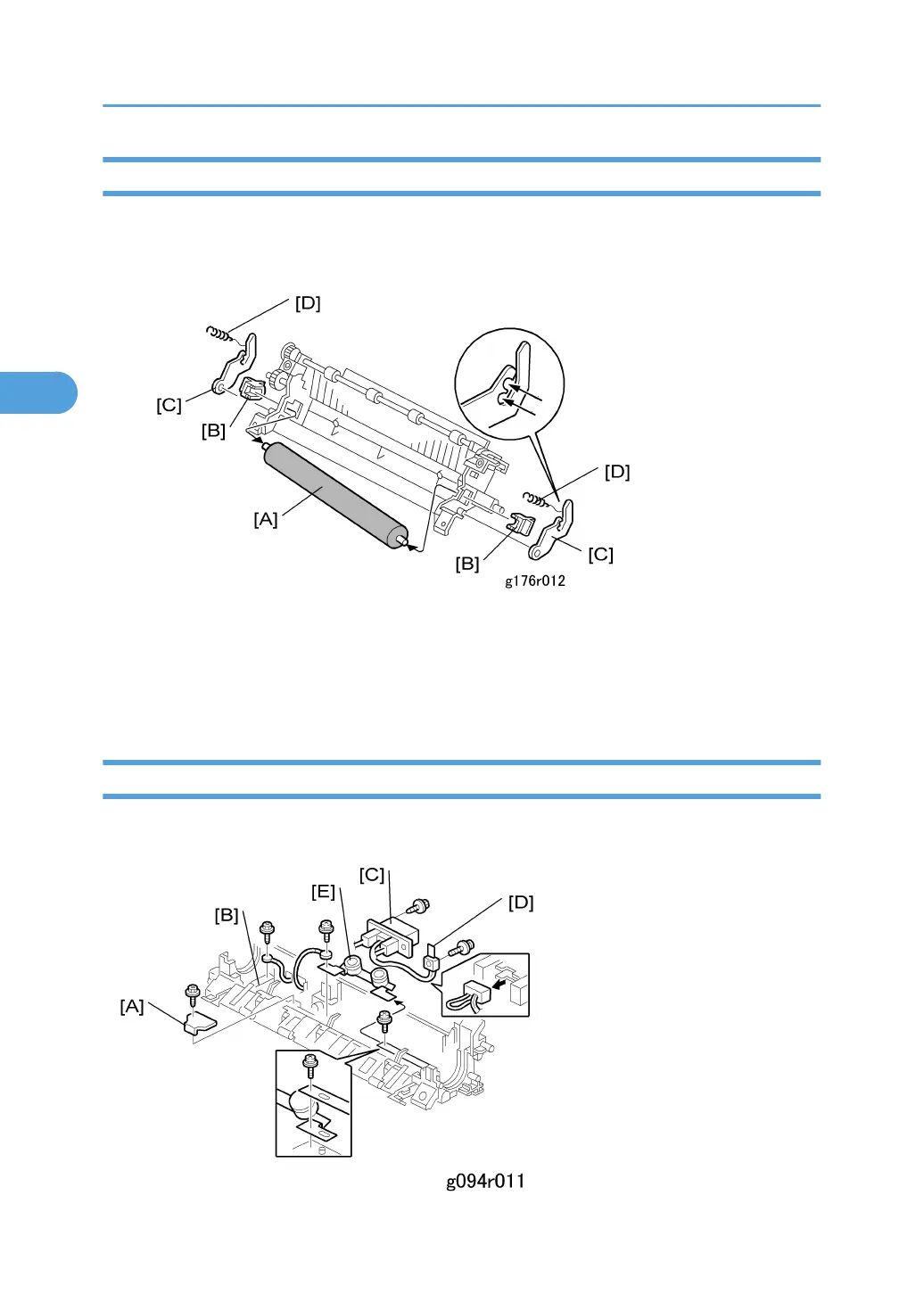

Pressure Roller
1.
Fusing Unit (
*
Fusing Unit)
2.
Hot roller and fusing lamp (
*
Hot Roller and Fusing Lamp)
3.
Pressure roller [A]
4.
Bushing [B]
5.
Pressure roller lever [C]
6.
Spring [D]
Thermistor and Thermostat
1.
Hot roller and fusing lamp (
*
Hot Roller and Fusing Lamp)
3. Replacement and Adjustment
40
3
41
43
Table of Contents
Default Chapter
1
Service Manual
1
Safety, Conventions, Trademarks
3
Safety
3
Caution Labels
4
Conventions and Trademarks
5
Table of Contents
7
1 Installation
13
Installation Requirements
13
Environment
13
Machine Level
14
Required Space
14
Power Supply
14
Machine Installation
16
Data Overwrite Security Unit Installation
17
Installation
17
Checking and Completing the Installation
18
2 Preventive Maintenance
19
User Maintenance
19
Service Maintenance
20
3 Replacement and Adjustment
23
General
23
Precautions on Disassembly
23
Releasing Plastic Latches
24
After Servicing the Machine
24
Special Tools
26
Covers
27
Upper Cover
27
Left Cover
28
By-Pass Tray Unit
28
Front Cover
29
Right Cover
30
Laser Unit
31
Caution Decal Locations
31
Polygon Mirror Motor
31
Laser Synchronization Detector
32
Laser Unit
33
Laser Diode Unit
34
Laser Beam Pitch Adjustment
35
Transfer Roller
37
Toner End Sensor
38
Fusing
39
Fusing Unit
39
Hot Roller and Fusing Lamp
39
Pressure Roller
42
Thermistor and Thermostat
42
Hot Roller Strippers
43
Paper Feed
44
Paper Feed Roller
44
Friction Pad
45
By-Pass Tray
46
Printer Controller Board
47
Engine Board
48
Main Motor
49
Clutches
50
By-Pass Feed Clutch and Relay Clutch
50
Paper Feed Clutch and Registration Clutch
51
Psu, Hvps
53
Fans
55
Cooling Fan
55
PSU Fan
55
4 Troubleshooting
57
Service Call Conditions
57
Summary
57
SC Code Descriptions
57
Error Messages
71
General Troubleshooting
77
Image Adjustment
77
Electrical Defects
77
Skew Adjustment
80
Streaks in the Sub Scan Direction
80
Miscellaneous Problems
81
5 Service Tables
83
Service Program Mode
83
Service Program Mode: Overview
83
Exiting Service Mode
84
Printer Controller Service Mode
85
Bit Switch Programming
85
Service Mode Menu ("1. Service Menu")
85
Printer Engine Service Mode
89
Service Mode Table
89
Firmware Update
147
Type of Firmware
147
Precautions
147
Machine Firmware Update
148
NVRAM Data Upload/Download
150
Uploading NVRAM Data
150
Downloading NVRAM Data
151
SD Card Application Move
153
Overview
153
Move Exec
153
Undo Exec
154
Controller Self Test at Power-On
156
Menu Mode
157
Controller Board DIP Switches
162
Card Save Function
163
Overview
163
Procedure
163
Error Messages
165
6 Details
167
Overview
167
Mechanical Component Layout
167
Paper Path
168
Board Structure
169
Printing Process
171
Laser Exposure
172
Cartridge Overview
175
Drum Charge
176
Toner Density Control
177
Toner End Detection
178
Main Motor Rotation Count
179
Toner Overflow Prevention
180
Paper Tray
184
By-Pass Tray
189
Image Fusing and Paper Exit
190
Fusing Drive
191
Pressure Roller
192
New Fusing Unit Detection
193
Fusing Temperature Control
194
Paper Exit
196
Controller Functions
198
7 Specifications
199
Basic Specifications
199
External Options
201
Paper Sizes
202
Operating Environment
205
Controller Specifications
207
Controller Board
208
Printing Functions
209
Supported Environments
211
Novell Netware
213
Controller Interface Specifications
214
Supported Utilities
215
Optional Utilties
216
Machine Configuration
217
