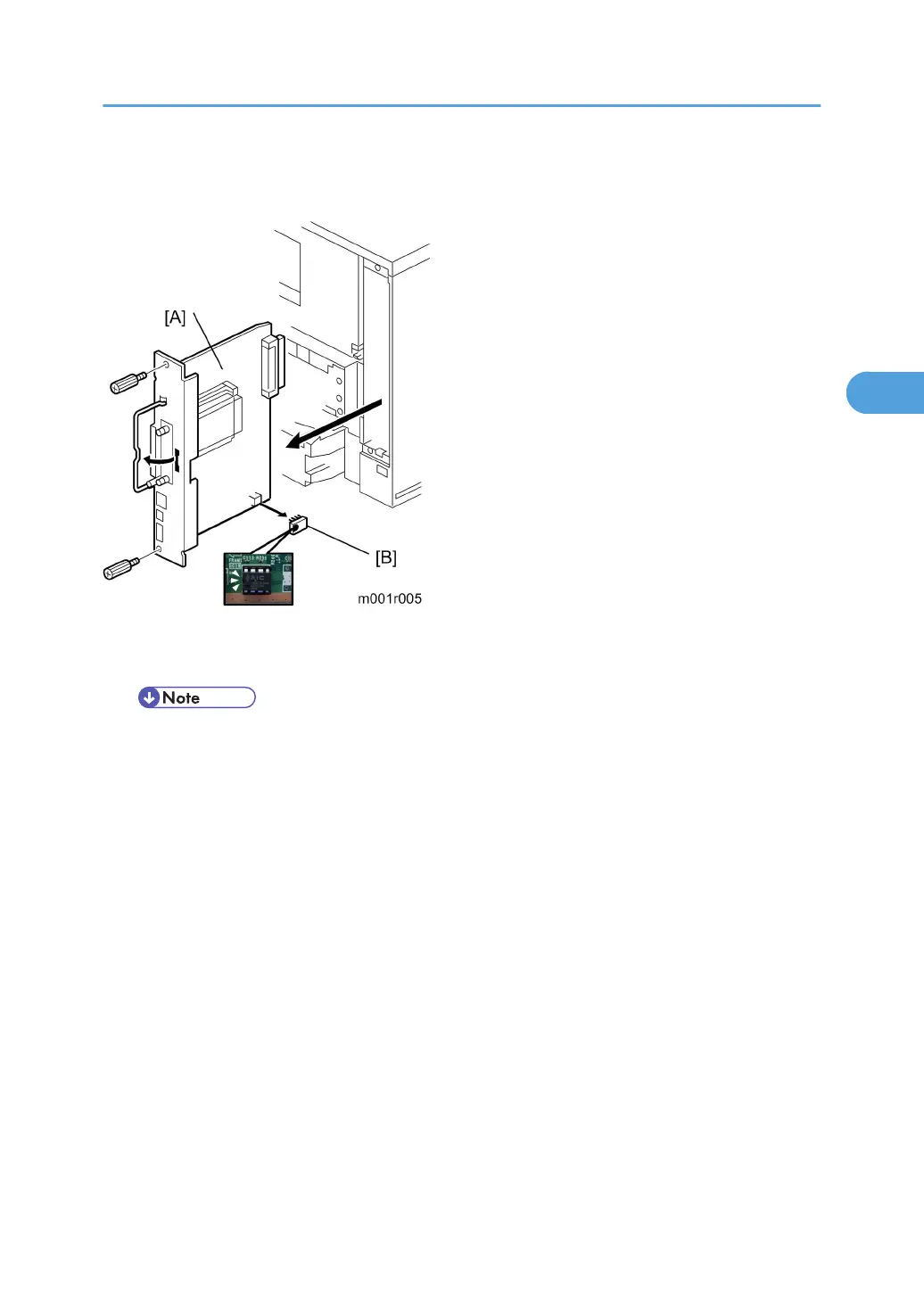

Printer Controller Board
1. Printer controller board [A] ( x 2)
2. NVRAM [B]
• Remove the NVRAM from the old printer controller board and insert it on the new board.
• The screws on the printer controller board are hand screws. Gently turn these screws when
removing the printer control board.
• Pull on the handle to remove the printer controller board from the machine.
Printer Controller Board
45
3
