Fusing Drive

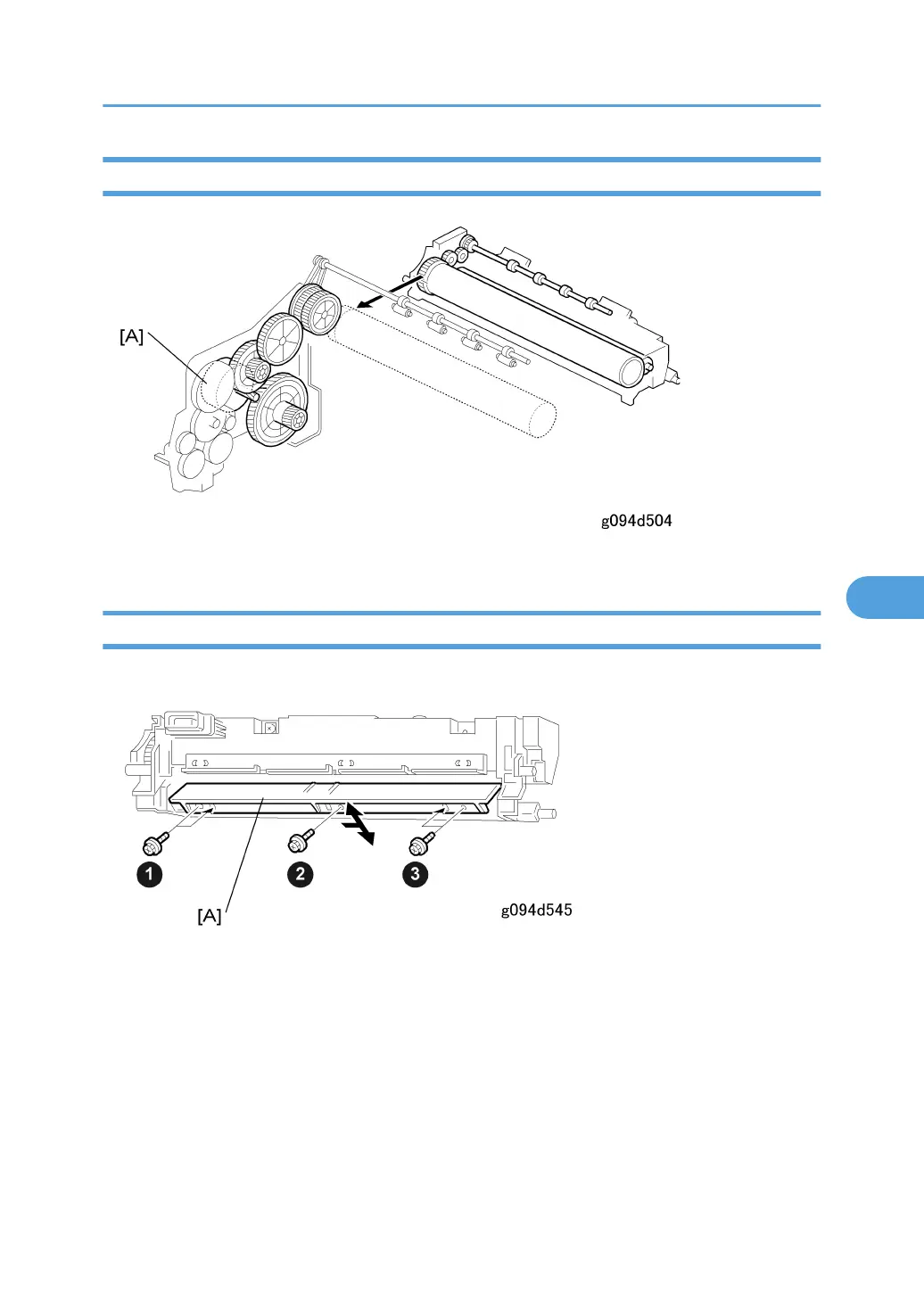

The main motor [A] drives the fusing unit through a gear train.
Fusing Entrance and Guide Shaft
The entrance guide [A] is adjustable for paper thickness to prevent creasing.
If creasing occurs frequently in the fusing unit, remove all screws (Ê Ë Ì) and slide the entrance guide to
the right. Replace the two end screws only. Do not replace the middle screw. This procedure allows paper
to have more direct access to the gap between the hot roller and the pressure roller.
