Ricoh S-P2 User Manual

Engine Board
1. Left cover (* "Left Cover")

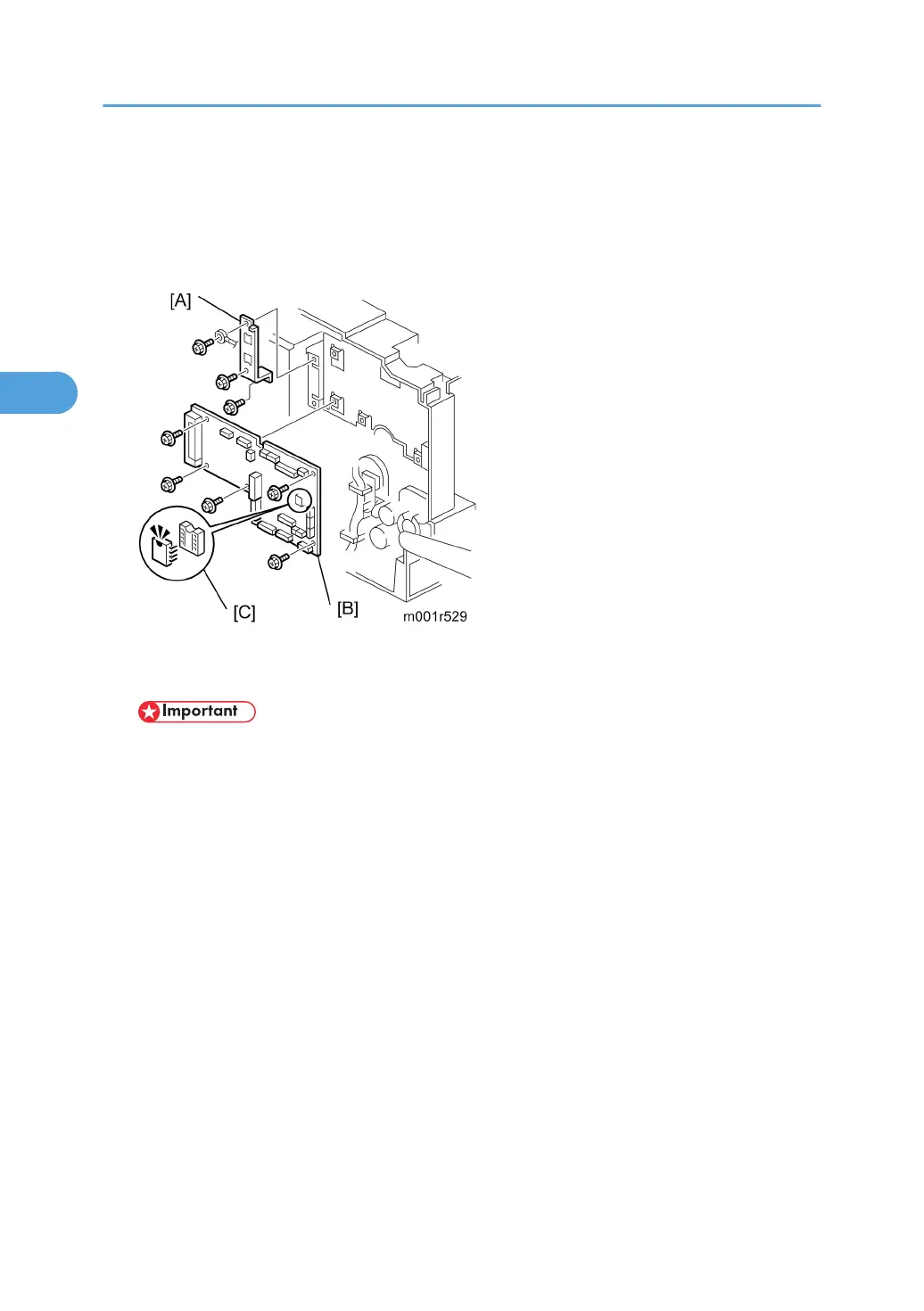

2. Printer controller board (* "Printer Controller Board")
3. Bracket [A] ( x 2, 1 grounding wire)
4. Engine board [B] ( x 5, all connectors)
• Remove the NVRAM [C] from the old engine board and install it on the new board.
