2. Polygon mirror cover (Ground screw x 1, x 1, x 2)

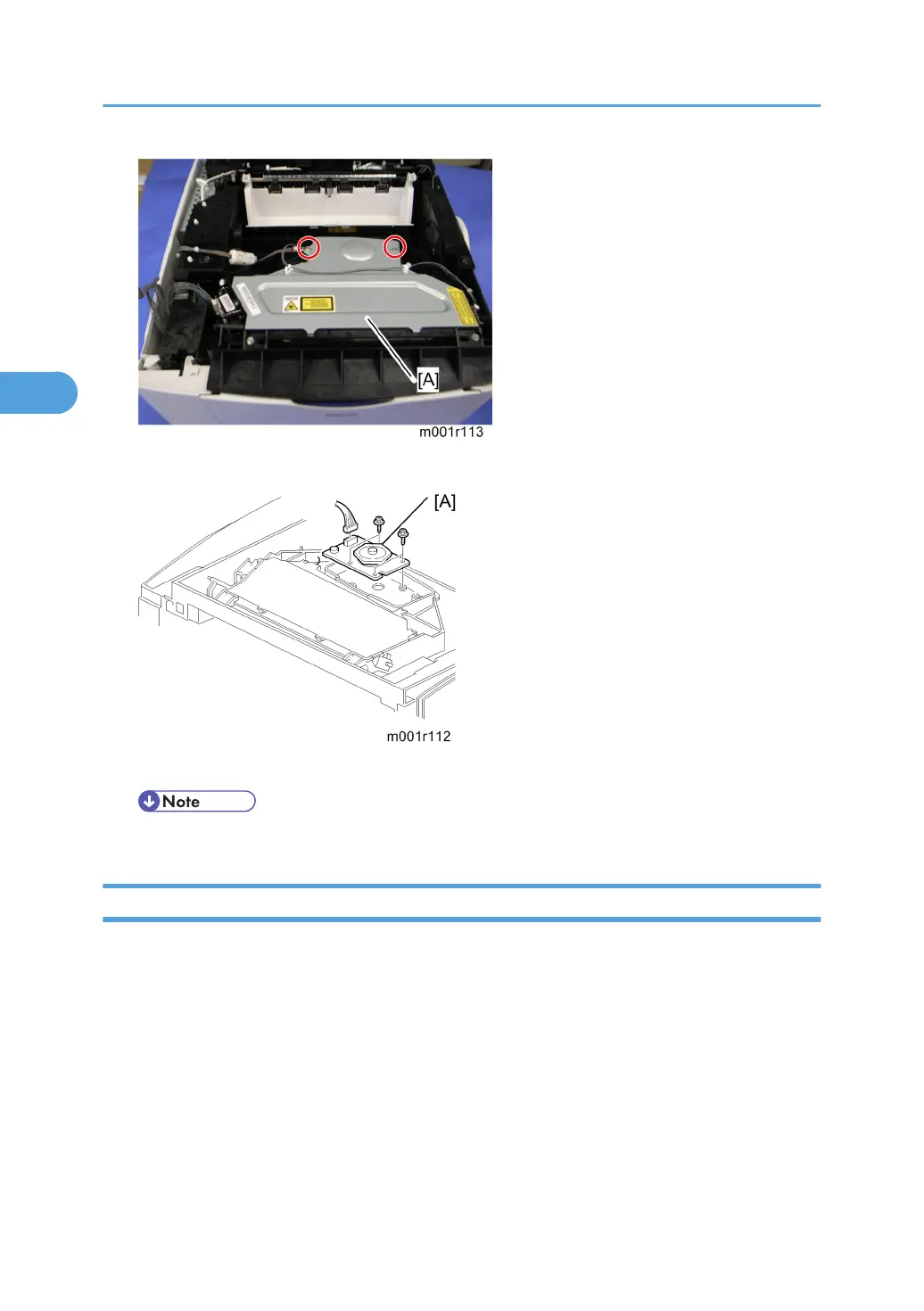

3. Polygon mirror motor [A] ( x 4, x 1)
• Never touch the surface of the mirror with bare hands.
Laser Synchronization Detector
1. Upper cover (* Upper Cover)
2. By-pass tray unit (* Bypass Tray Unit)
3. Left cover (* Left Cover)
4. Front cover (* Front Cover)
5. Right cover (* Right Cover)
3. Replacement and Adjustment
30
