SICK DT1000 User Manual

RS-422
SICK AG
D-79183 Waldkirch
Made in Germany
February 2016
MAC 00:06:77:AC:2E:08
Serial no. 1608 1234
DC 18...30 V class 2
Qx < 100 mA / < 30 V
Power cons. max. 35 W
Ambient max. +55 °C
Enclosure type 1
DT1000-S11101S01
Part no. 1075436
Power/RS-422/SSI
Ethernet Auxiliary
3
2
54
ß
â
á
6
ã
LASER
1
à
ä
E336916
25
1
9
8
7

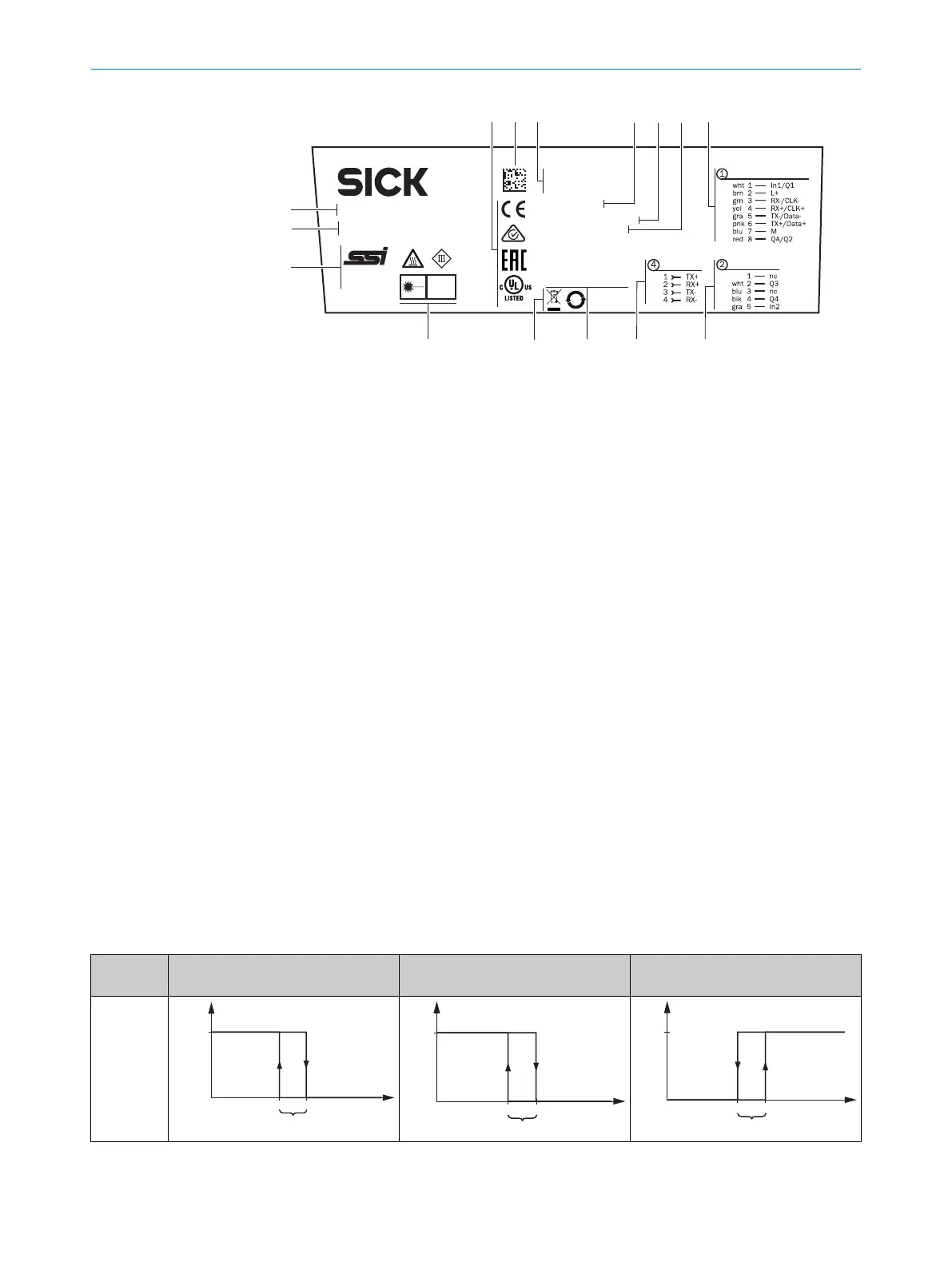

Figure 3: Dx1000 type label (example)
1
Conformity mark
2
2D code with part number and serial number
3
Manufacturer
4
Month and year of manufacture
5
MAC address
6
Serial number
7
Pin assignment connection 1
8
Pin assignment connection 2
9
Pin assignment connection 4
ß
Electrical data and environmental information
à
Mark according to electric device guidelines
á
Warning sings, protection class label
â
Interfaces
ã
Part number
ä
Type code
Device display
The following information can be called up using the info menu on the device display:
•
Type code
•
Part number, serial number
•
Interface version, firmware verification, firmware creation date
•
Hardware version
3.5
Switching functions
Table 2: Overview of switching functions
Switching
function
Switching state Voltage at Q
i
at active state = High Voltage at Q
i
at active state = Low
Distance
to object
Hysteresis
Inactive
Active
Output value
distance
Switching
state
SP
Hysteresis
Output value
distance
SP
Voltage
High
Low
Output value
distance
SP
Voltage
High
Low
Hysteresis
3 PRODUCT DESCRIPTION
16
O P E R A T I N G I N S T R U C T I O N S | DT1000 and DL1000 8019329/12TZ/2019-03-28 | SICK
Subject to change without notice
