11.1.2 Repeatability diagrams

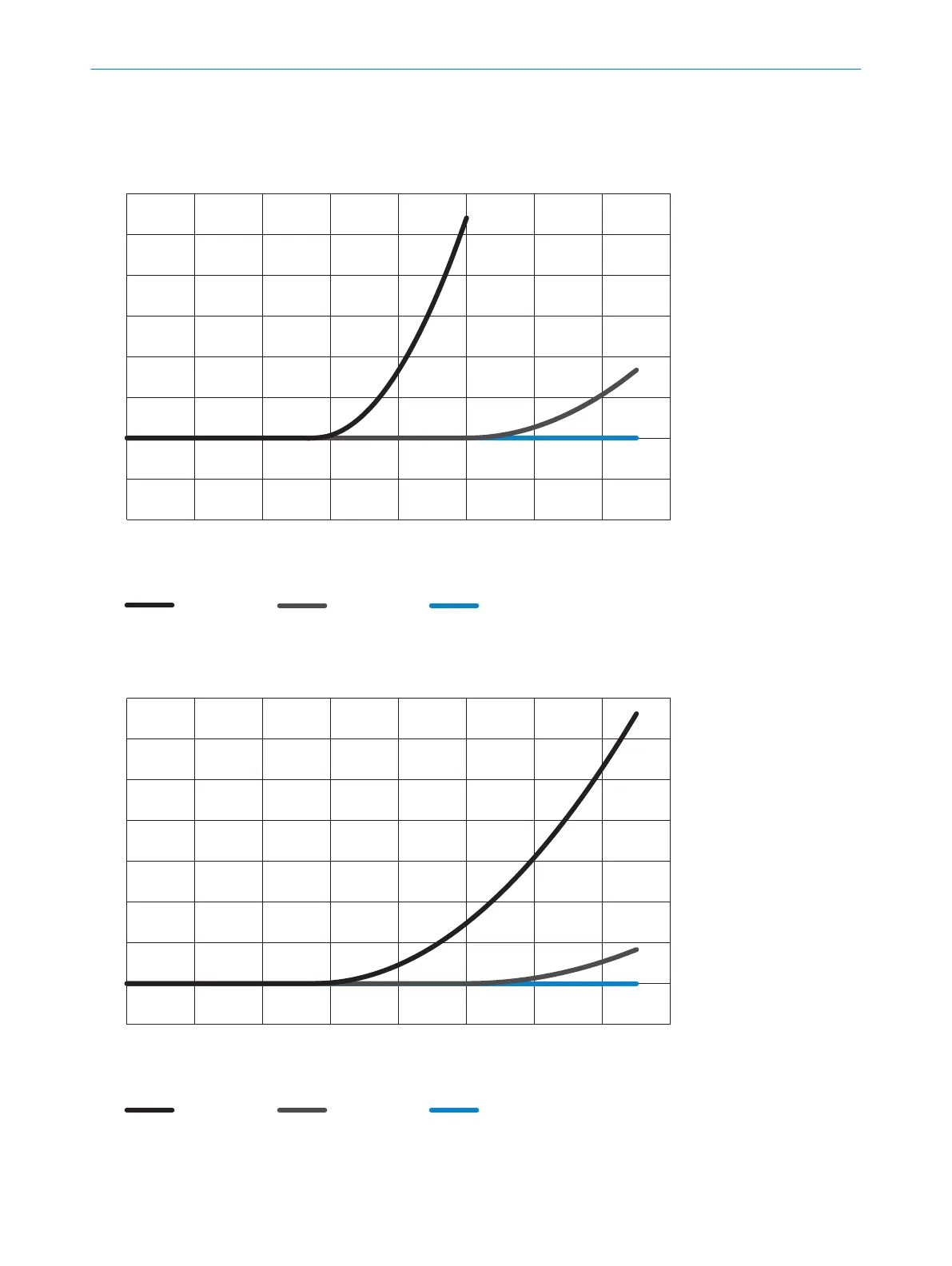

DL1000 repeatability diagram
0
2
(0.08)
4
(0.16)
6
(0.24)
8
(0.31)
10
(0.39)
12
(0.47)
14
(0.55)
16
(0.63)
Typ. repeatability in mm (inch)
a
b
c
0
Distance in m (ft)
a: PL240DG
b: PL560DG
c: PL880DG
200
(656)
400
(1312)
600
(1969)
800
(2625)
1000
(3281)
1200
(3937)
1400
(4593)
1600
(5250)
Figure 31: DL1000 repeatability with 1 ms measurement cycle time
0
2
(0.08)
4
(0.16)
6
(0.24)
8
(0.31)
10
(0.39)
12
(0.47)
14
(0.55)
16
(0.63)
Typ. repeatability in mm (inch)
0
Distance in m (ft)
a: PL240DG
b: PL560DG
c: PL880DG
200
(656)
400
(1312)
600
(1969)
800
(2625)
1000
(3281)
1200
(3937)
1400
(4593)
1600
(5250)
a
b
c
Figure 32: DL1000 repeatability with 4 ms measurement cycle time
TECHNICAL DATA
11
8019329/12TZ/2019-03-28 | SICK O P E R A T I N G I N S T R U C T I O N S | DT1000 and DL1000
99
Subject to change without notice
