7.1.2 Menu groups

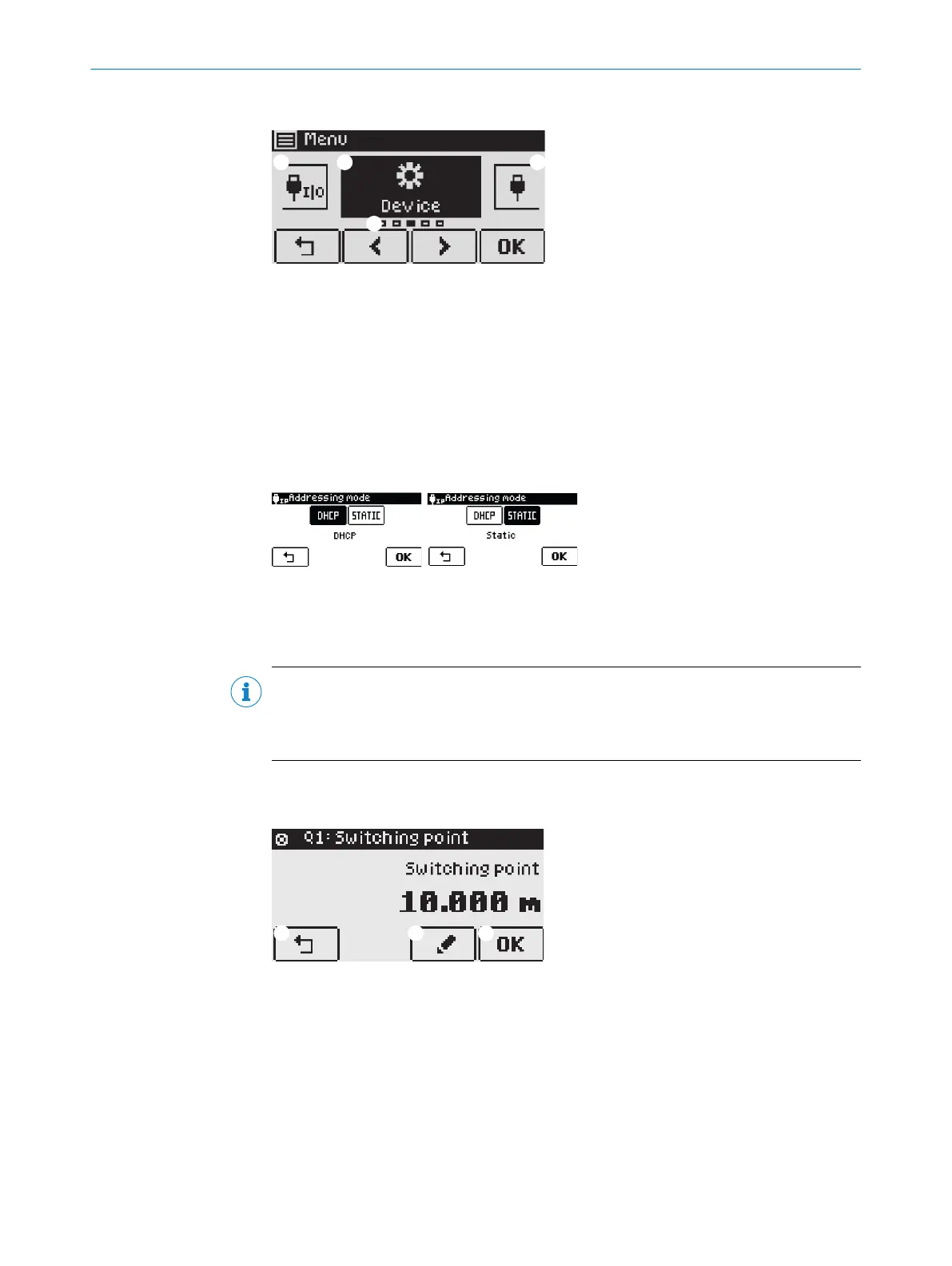

Figure 23: Menu group selection
1
Previous menu group
2
Selected menu group
3
Next menu group
4
Current position within the menu group selection
The first level of the menu contains various menu groups to choose between, which are
arranged by topic. To open the selected menu group, press the OK button.
7.1.3 Menu items
Figure 24: Various menu items
In the next menu level, the individual menu items are represented by buttons. The cur‐
rently active selection is displayed with inverted colors.
NOTE
The inverted button display is also used to show the currently active status of a setting.
In the figure, the DHCP client is active in the screenshot on the left while a static IP
address has been assigned in the screenshot on the right.
7.1.4 Parameter input
Figure 25: Displaying and editing parameters
1
Cancel/Back
2
Edit numerical values
3
OK/Apply values
If numerical parameters can be entered or changed, edit buttons appear on the display.
7 OPERATION
48
O P E R A T I N G I N S T R U C T I O N S | DT1000 and DL1000 8019329/12TZ/2019-03-28 | SICK
Subject to change without notice
