SICK DT1000 User Manual

Parameter Factory setting
1:
1 mm/s
1 mm/s
10:
10 mm/s
100:
100 mm/s
Free input:
0.001 mm/s ... 1000 mm/s

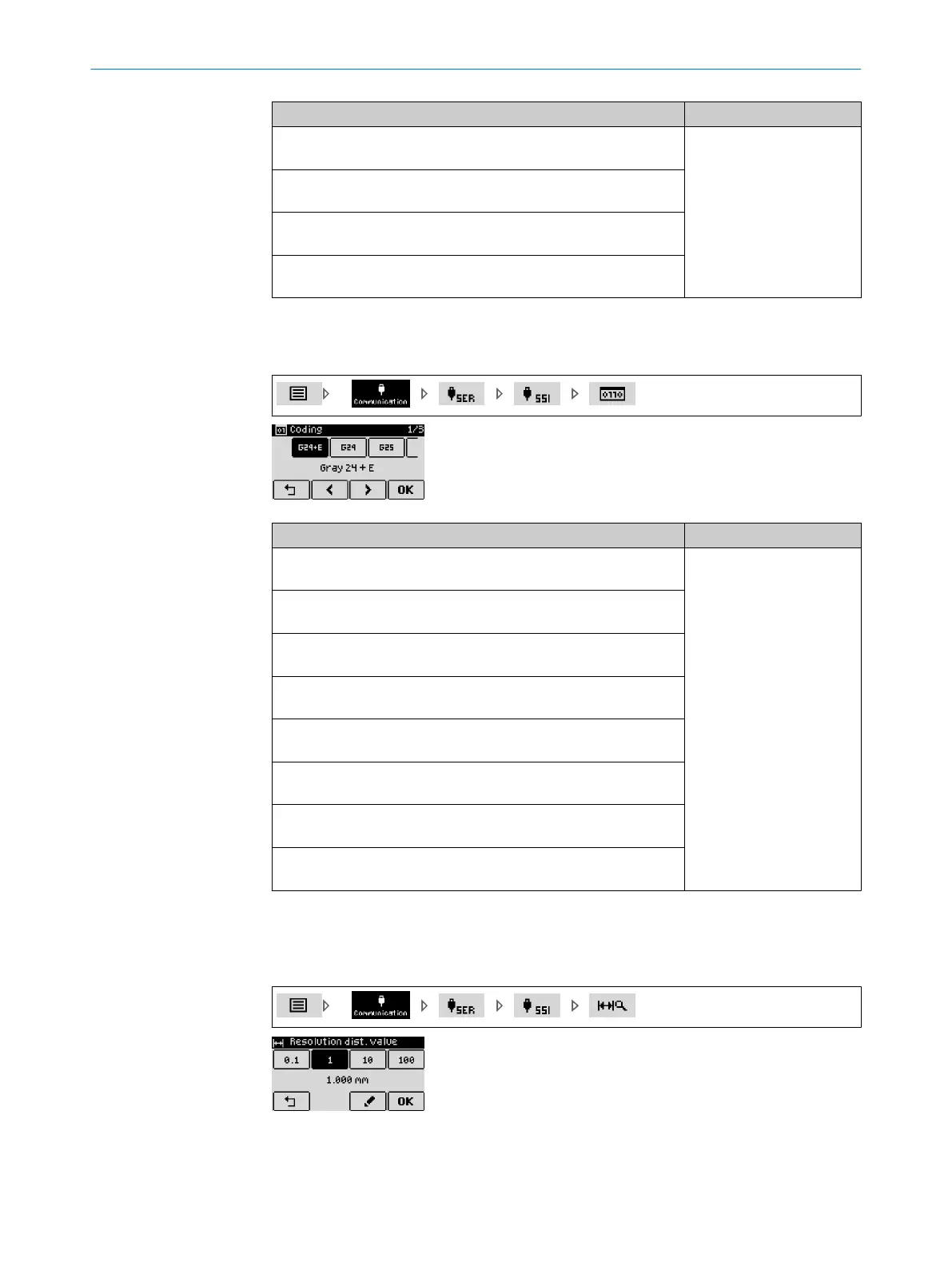

8.5.9 Defining SSI coding
Define the coding, "SSI (synchronous serial interface)", page 19.
Parameter Factory setting
Gray 24+1:
24 measured value bits (gray) +1 error bit (binary)
Gray 24+1
Gray 24:
24 measured value bit (gray)
Gray 25:
25 measured value bit (gray)
Binary 24+1:
24 measured value bits (binary) +1 error bit (binary)
Binary 24:
24 measured value bit (gray)
Binary 25:
25 measured value bit (gray)
Gray 24+8:
24 measured value bits (gray) +8 status bits (binary)
Binary 24+8:
24 measured value bits (binary) +8 status bits (binary)
8.5.10 Defining the distance value resolution for the SSI data transfer
Define the resolution of the output distance measured value. The distance values are
output in multiples of the set resolution.
REFERENCE 8
8019329/12TZ/2019-03-28 | SICK O P E R A T I N G I N S T R U C T I O N S | DT1000 and DL1000
75
Subject to change without notice
