Communication modules
6.5 CP52A0 GDM access module
SIMATIC TDC hardware
System Manual, 08/2017, A5E01114865-AL
161

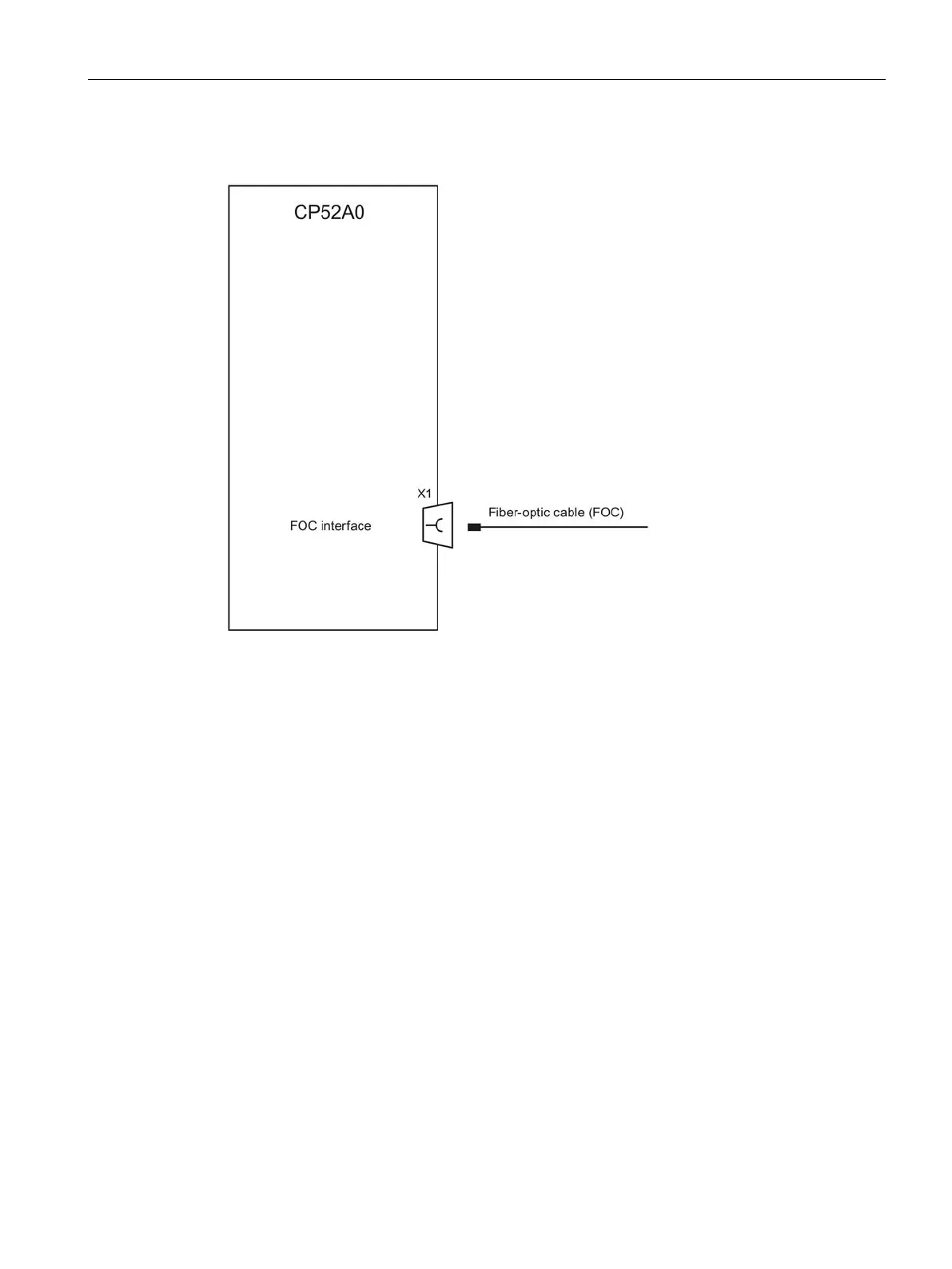

Figure 6-14 Connection options of CP52A0
Additional components
Fiber-optic cable (FOC)
A fiber-optic cable with a
core diameter of 62.5 μm/125 μm
is used to interconnect the
CP52A0 GDM access module with the CP52IO GDM interface module. The cable is
connected by means of
.
The
for the connection between CP52IO and CP52A0 is
.
The fiber-optic cables must be assembled in accordance with the plant topology and can be
ordered from the following supplier:
Ehret GmbH
Über der Elz 2
79312 Emmendingen
