Interface module
7.4 Interface module SB70
SIMATIC TDC hardware
200 System Manual, 08/2017, A5E01114865-AL
The interface module is suitable for vertical and horizontal mounting positions
For more information on EMC and environmental conditions, refer to section "General
technical specifications (Page 37)"!
The following figure shows a typical application:

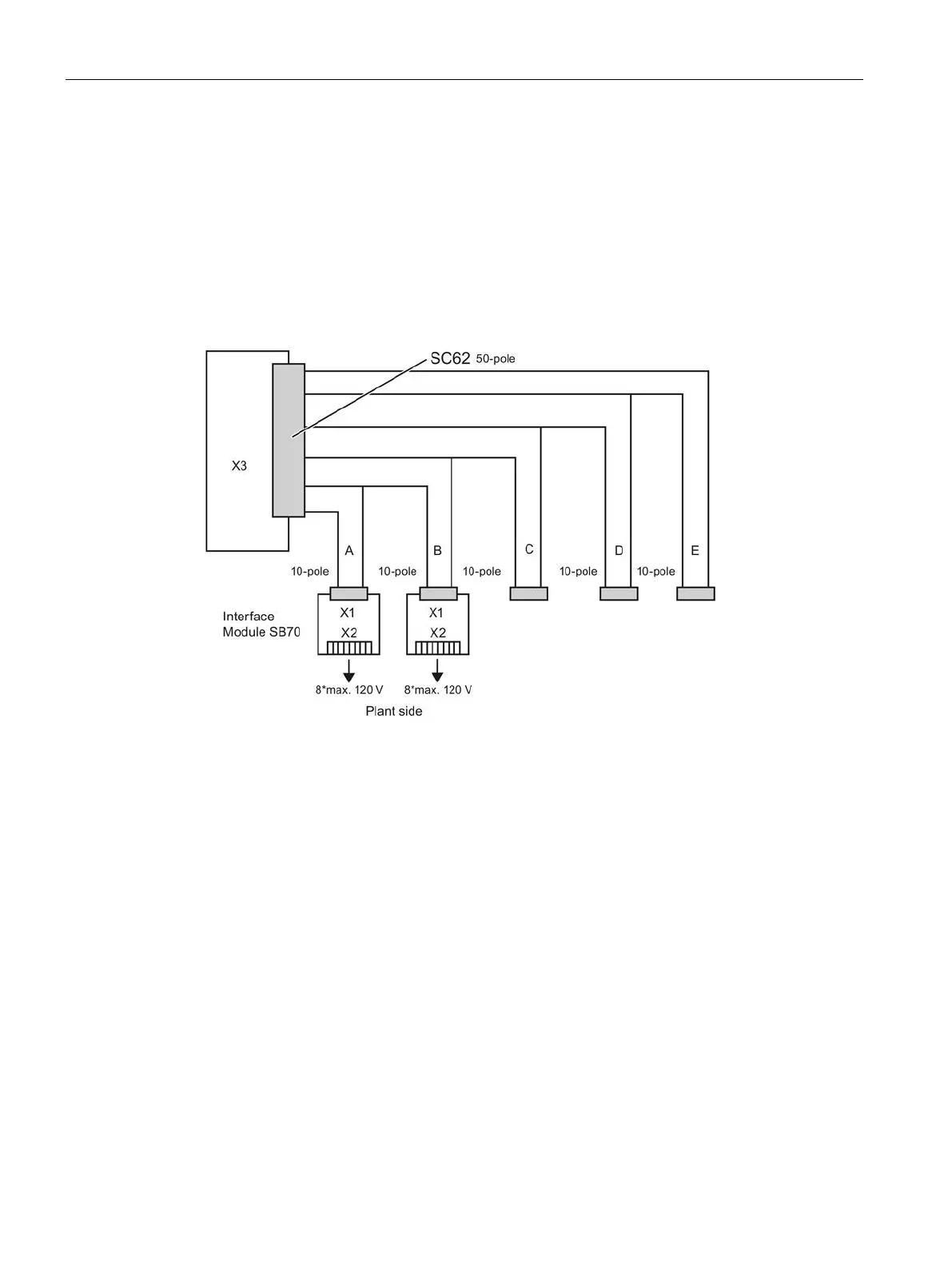

Figure 7-9 Application example of an SB70 interface module on digital I/O module SM500
The digital inputs of the interface module are connected via cable SC62 to the SIMATIC TDC
outputs.
