3.2 Rack UR5213 (6DD1682-0CH2)
SIMATIC TDC hardware
54 System Manual, 08/2017, A5E01114865-AL
3.2
Rack UR5213 (6DD1682-0CH2)
3.2.1
Areas of application
Rack UR5213 with 21 slots forms the mechanical base for SIMATIC TDC and features an
integrated system power supply and integrated system fans. A high-performance 64-bit
backplane bus supports high-speed data exchange between the inserted modules.
3.2.2
Mechanical layout

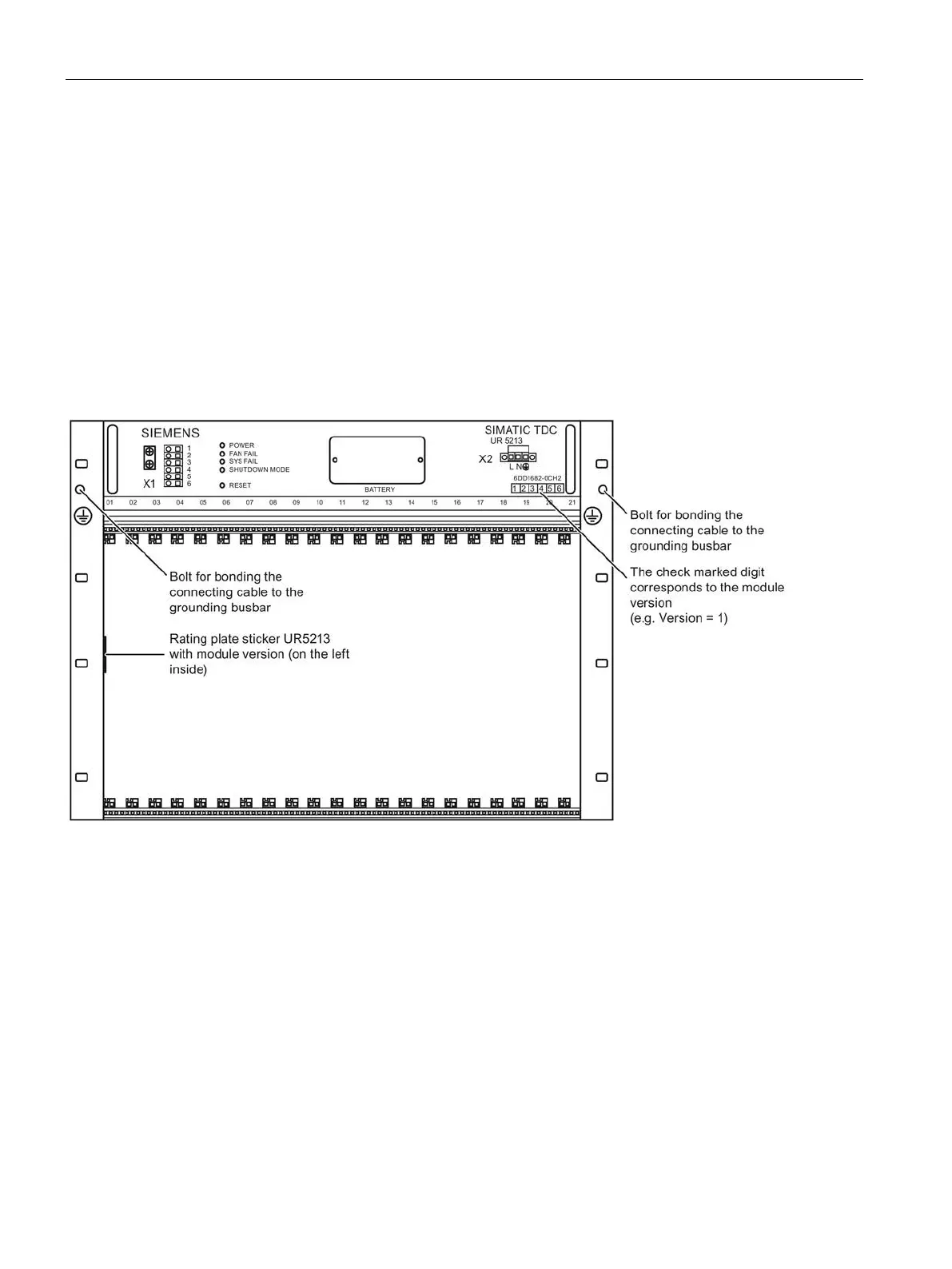

Figure 3-4 Rack UR5213 (front view)
Power supply
The power supply with integrated fan for forced convection is installed in the rear section of
the rack.
