Interface module
7.3 Interface module SB61
SIMATIC TDC hardware
System Manual, 08/2017, A5E01114865-AL
191
Plant/system-side signal voltages of 48V or 24V DC can be processed using the interface
module. The plant/system side of the module has 8 electrically isolated input channels.

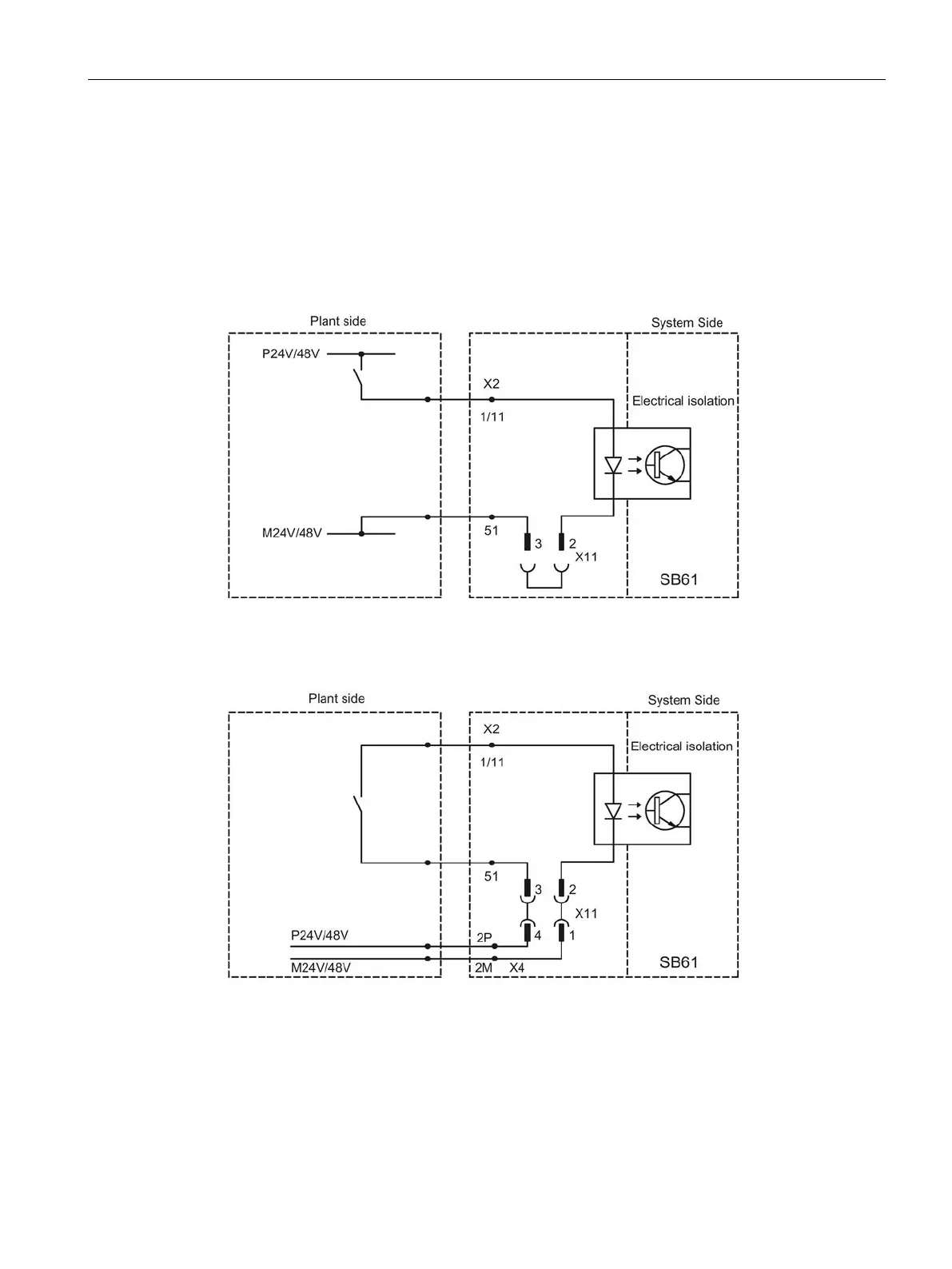

Using short-circuit connectors (X11), the connection of each channel can be electrically
isolated from one another, or connected to a common reference point:
Inputs, electrically isolated
Figure 7-5 Position of the jumpers for electrically isolated inputs
Inputs with common reference potential
Figure 7-6 Position of the jumpers for inputs with common reference potential
