Communication modules
6.6 CP53M0 coupling module
SIMATIC TDC hardware
System Manual, 08/2017, A5E01114865-AL
163
CP53M0 coupling module
6.6.1
Areas of application
Rack coupling
Coupling module CP53M0 is used to couple a SIMATIC TDC system to a SIMADYN D
system for high-speed data exchange, e.g. when expanding SIMADYN D systems.
CP53M0 is equipped with a buffer memory for data exchange between the CPU modules in
the rack.
The CP53M0 can be parameterized as master or slave for data exchange with other racks.
CP53M0 is parameterized in HW Config for operation in slave mode. A CS12/CS13/CS14 in
a SIMADYN D rack can be connected to the FOC connectors X1/X2. Additional CS22 or
CP53M0 can be connected to the other connectors of CS13/CS14.
The FOC connectors X3/X4 do not have any function in this mode.

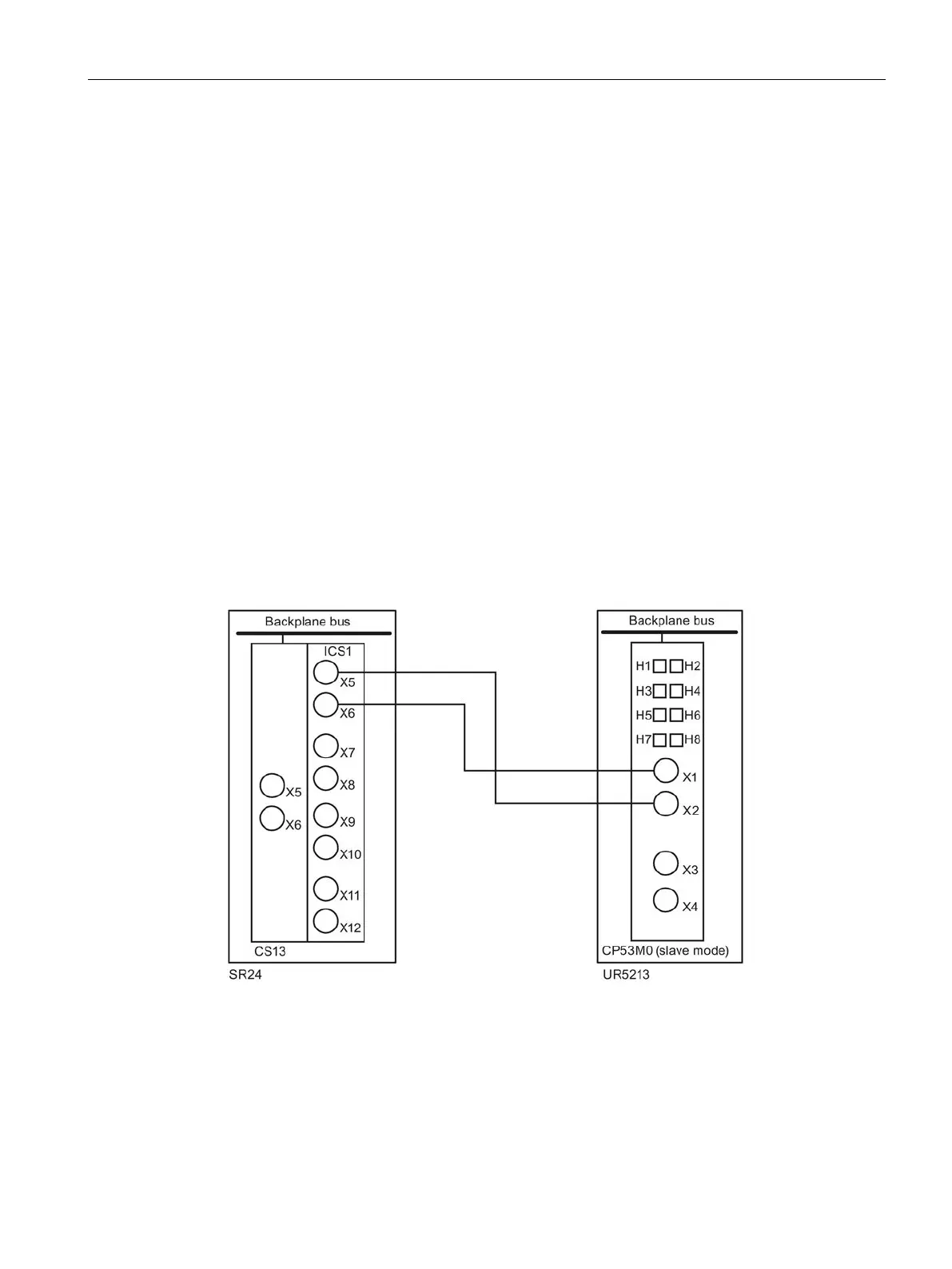

Figure 6-15 Options for connecting CP53M0 as slave to the CS13
