Rack
3.1 Rack UR6021 (6DD1682-0CH3)
SIMATIC TDC hardware
40 System Manual, 08/2017, A5E01114865-AL
3.1.2
Mechanical layout

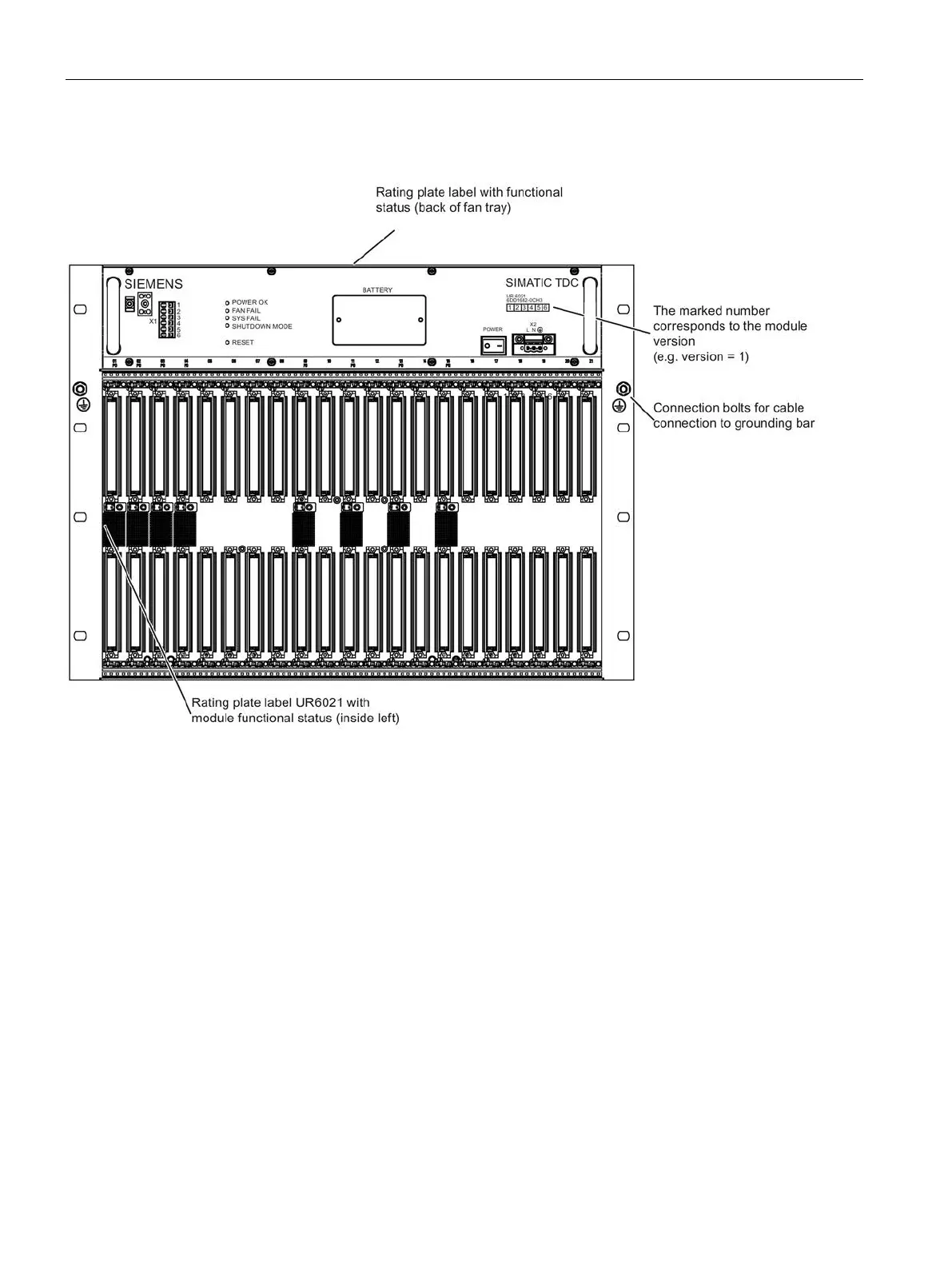

Figure 3-1 Rack UR6021 (front view)
Fan tray (6DD1683-0CH3)
The fan tray is inserted and screwed into the upper part of the rack. The fan tray contains six
fans and the control and monitoring functions for the rack.
