Interface module
7.1 Interface module SB10
SIMATIC TDC hardware
178 System Manual, 08/2017, A5E01114865-AL
The interface module is suitable for vertical
horizontal mounting positions.
For more information on EMC and environmental conditions, refer to section "General
technical specifications (Page 37)"!
The following figure shows a typical application:

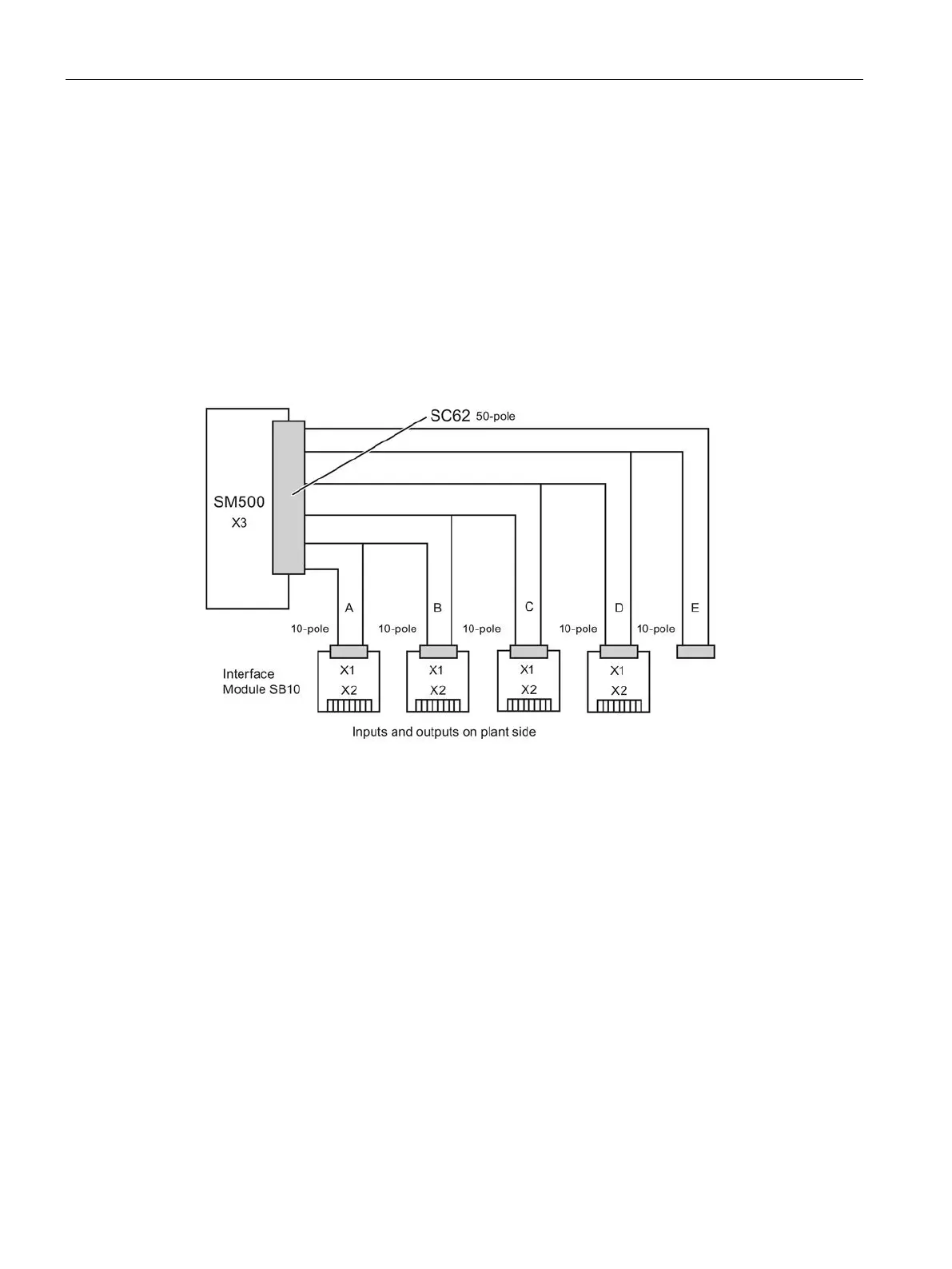

Figure 7-2 Application example of an SB10 interface module on the digital I/O module SM500
The digital signals on system side are connected directly to the SIMATIC TDC modules via
the interface module. A cable SC62 is used accordingly.
