Siemens SINAMICS V90 User Manual

Basic operator panel (BOP)
6.1 BOP overview
SINAMICS V90, SIMOTICS S-1FL6
Operating Instructions, 04/2019, A5E36037884-007
189
6.1.2

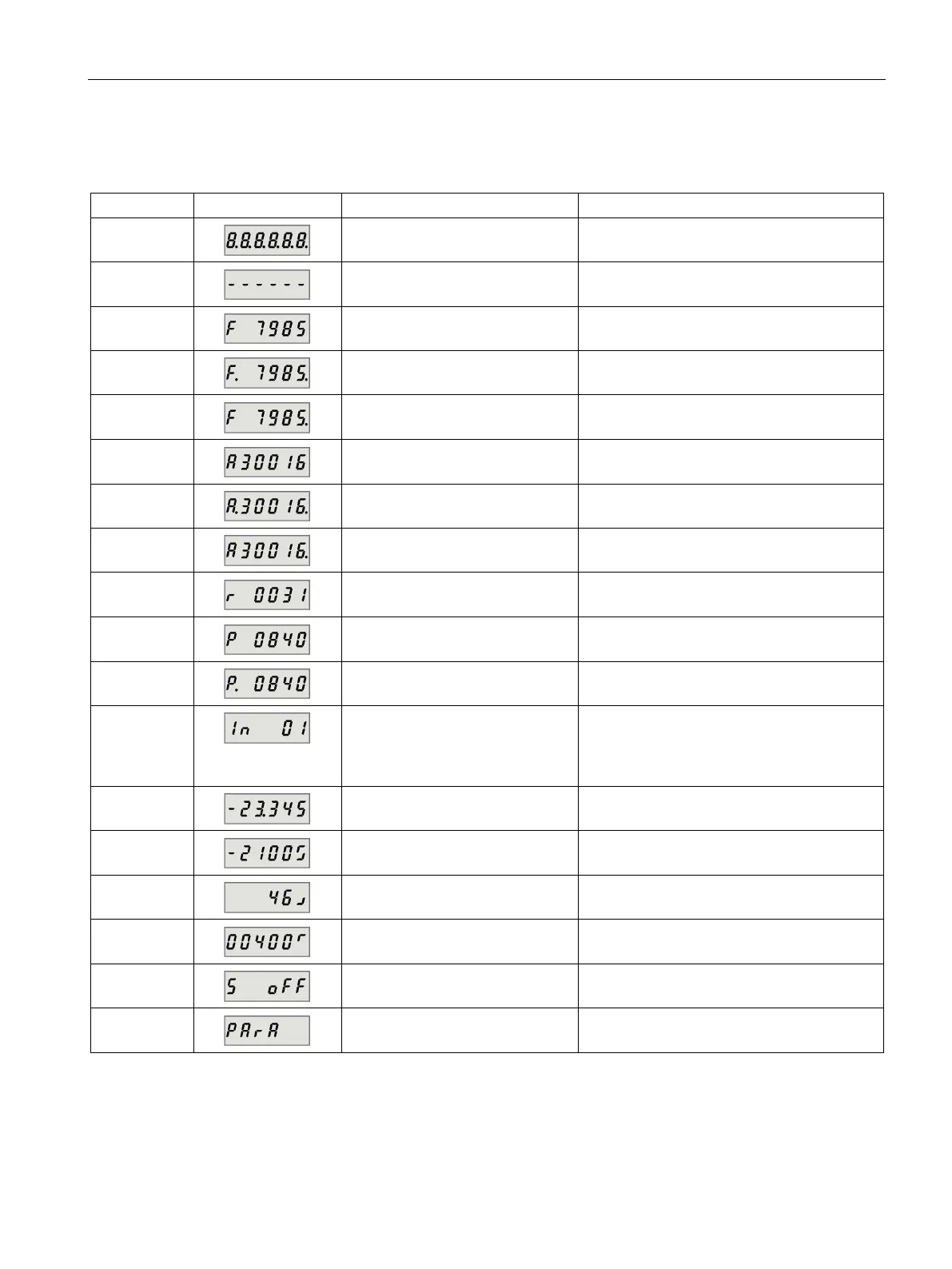

BOP display
Display
Example
Description
Remarks
8.8.8.8.8.8. Drive is in startup state
------ Drive is busy
Fxxxxx Fault code In the case of a single fault
F.xxxxx. Fault code of the first fault In the case of multiple faults
Fxxxxx. Fault code In the case of multiple faults
Axxxxx Alarm code In the case of a single alarm
A.xxxxx. Alarm code of the first alarm In the case of multiple alarms
Axxxxx. Alarm code In the case of multiple alarms
Rxxxxx Parameter number Read-only parameter
Pxxxxx Parameter number Editable parameter
P.xxxxx Parameter number Editable parameter; the dot means that at
least one parameter has been changed
In xx Indexed parameter Figure after "
In
" indicates the number of indi-
ces.
For example, "
In 01
" means that this indexed
parameter is 1.
xxx.xxx Negative parameter value
xxx.xx<> Current display can be moved to
left or right
xxxx.xx> Current display can be moved to
right
xxxx.xx< Current display can be moved to
left
S Off Operating display: servo off
Para Editable parameter group Refer to the section "Editing parameters
(Page 196)".

Siemens SINAMICS V90 Specifications

General

Power Range	0.05 kW to 7.0 kW
Protection Class	IP20
Communication	USS/Modbus RTU
Feedback	Incremental encoder
Input Voltage	1AC 200 V to 240 V, 3AC 380 V to 480 V
Control Modes	Position, Speed, Torque
Operating Temperature	0 °C to +40°C
Storage Temperature	-40°C to +70°C
Relative Humidity	5% to 95% (non-condensing)
Altitude	Up to 1000 m above sea level
