2.5 Accessories
SINAMICS V90, SIMOTICS S-1FL6
Operating Instructions, 04/2019, A5E36037884-007
45
2.5
Accessories
2.5.1

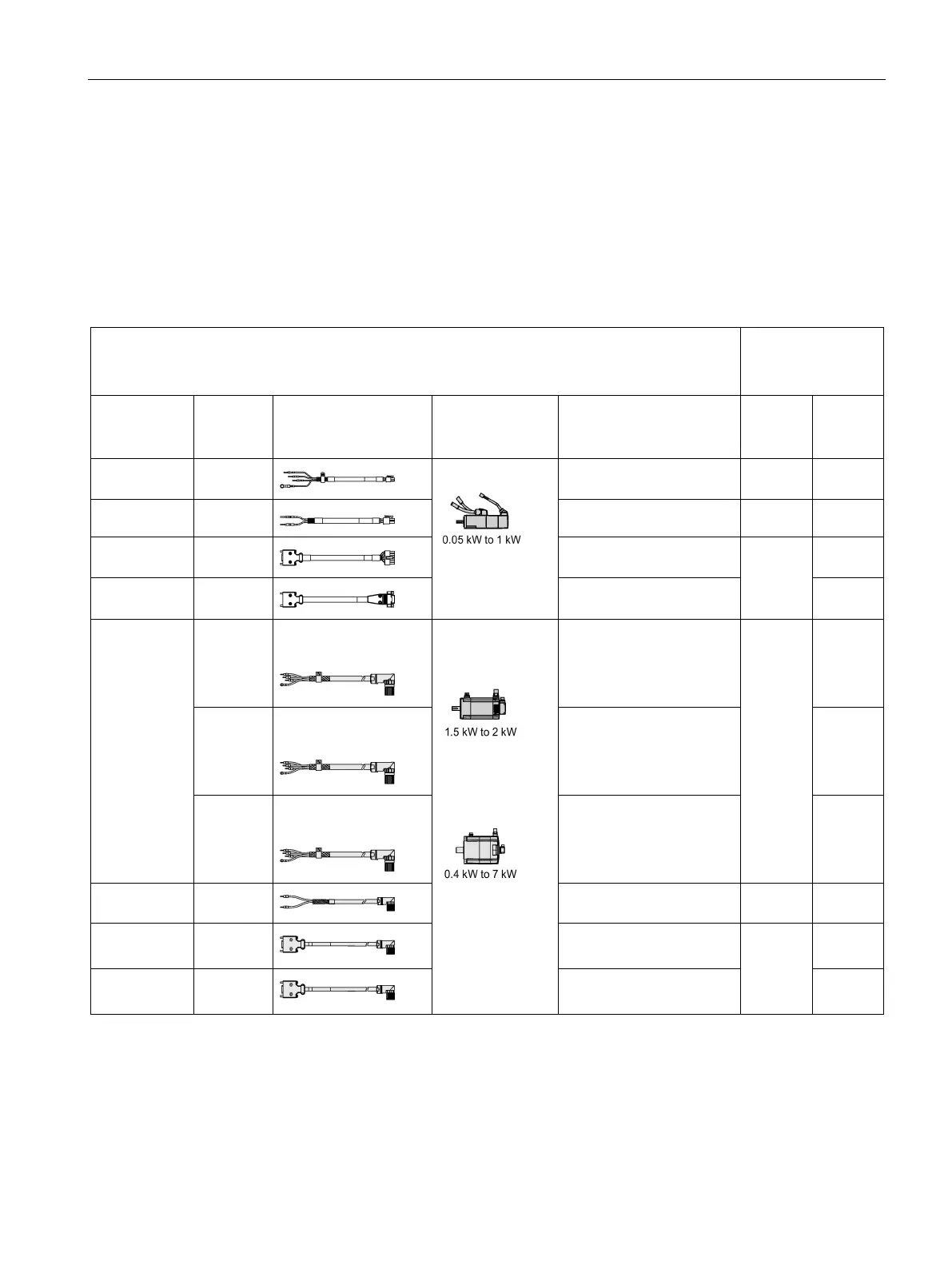

MOTION-CONNECT 300 cables and connectors
Overview of Cables
MOTION-CONNECT 300 cables
Connectors
(6FX2003-)
Type
Article No.
6FX3002-
1)
Illustration (left: drive
side; right: motor side)
Used for
(SIMOTICS S-
1FL6)
Cross-section of cores
(mm
2
)
Drive
side
Motor
side
Power cable 5CK01-....
Low inertia: 4 × 0.75 - 0LL12
Brake cable 5BK02-....
2 × 0.75 - 0LL52
Incremental
encoder cable
2CT20-....
3 × 2 × 0.20 + 2 × 2 × 0.25 0SB14 0SL12
Absolute
encoder cable
2DB20-....
3 × 2 × 0.20 + 2 × 2 × 0.25 0DB12
Power cable 5CK31-.... For low inertia motors
of 1.5 kW to 2 kW:
Low inertia (with
straight connect-
ors):
High inertia (with
straight connect-
ors):
4 × 2.5 - 0LL11
5CL01-.... For high inertia motors
of 0.4 kW to 1 kW:
4 × 1.5 0LL11
5CL11-.... For high inertia motors
of 1.5 kW to 7 kW:
4 × 2.5 0LL11
Brake cable 5BL02-....
2 x 0.75 - 0LL51
Incremental
encoder cable
2CT10-.... 3 x 2 x 0.22 + 2 x 2 x 0.25 0SB14 0SL11
Absolute
encoder cable
2DB10-.... 3 x 2 x 0.22 + 2 x 2 x 0.25 0DB11

Siemens SINAMICS V90 Specifications

General

Power Range	0.05 kW to 7.0 kW
Protection Class	IP20
Communication	USS/Modbus RTU
Feedback	Incremental encoder
Input Voltage	1AC 200 V to 240 V, 3AC 380 V to 480 V
Control Modes	Position, Speed, Torque
Operating Temperature	0 °C to +40°C
Storage Temperature	-40°C to +70°C
Relative Humidity	5% to 95% (non-condensing)
Altitude	Up to 1000 m above sea level
