Siemens SINAMICS V90 User Manual

Mounting
3.1 Mounting the drive
SINAMICS V90, SIMOTICS S-1FL6
82 Operating Instructions, 04/2019, A5E36037884-007
3.1.1
Mounting orientation and clearance
The SINAMICS V90 200 V variant servo drives with rated power of 400 W and 750 W
support vertical mounting and horizontal mounting. Other drives support vertical mounting
only.
Mount the drive in a shielded cabinet by observing the mounting orientation and clearance
specified in the following illustrations.

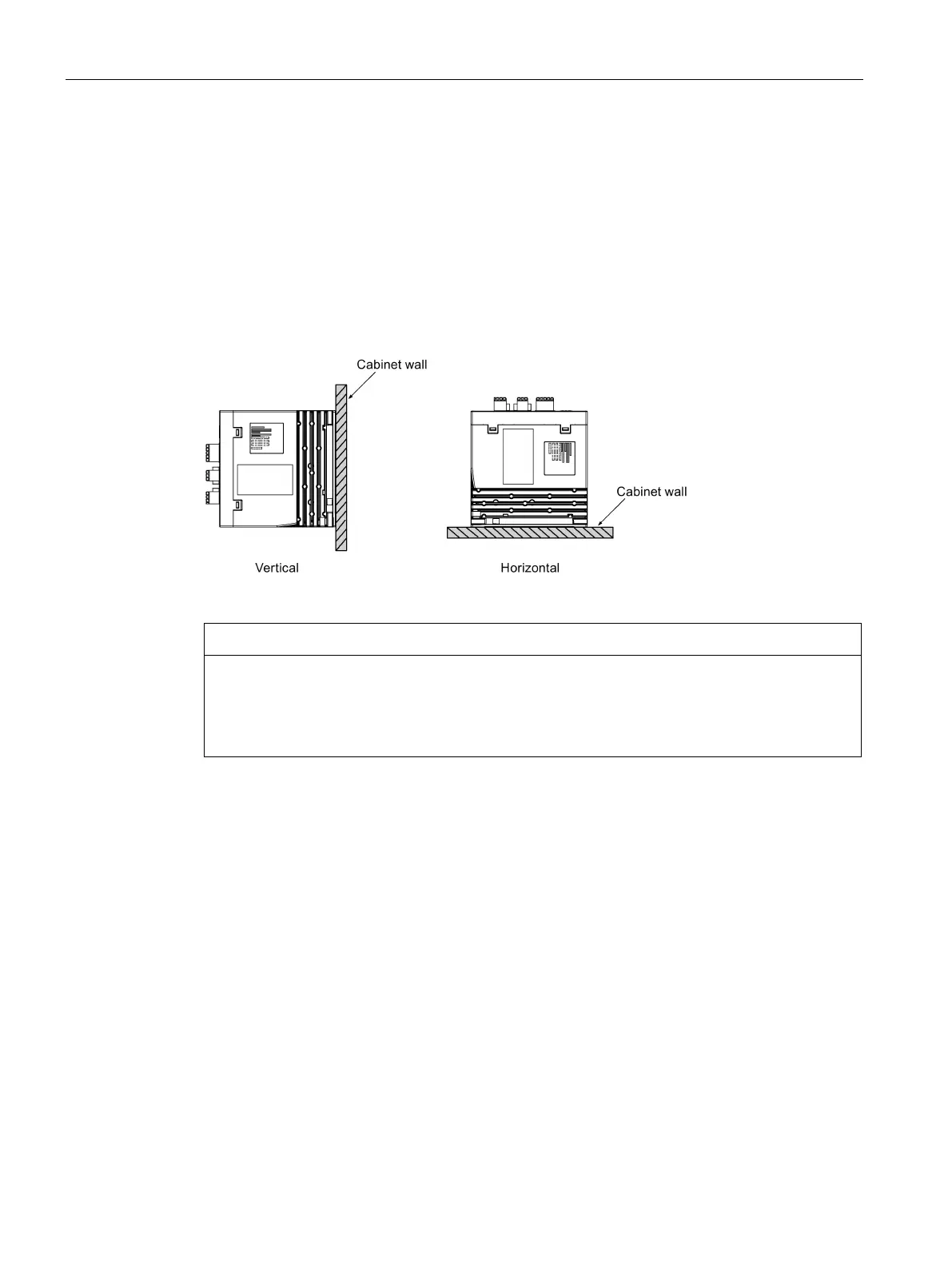

Mounting orientation
NOTICE
Overheating due to inadmissible mounting orientation
If you use an inadmissible mounting orientation, the drives can overheat and therefore be
damaged.
• Always observe the mounting orientation required in the instruction.

Siemens SINAMICS V90 Specifications

General

Power Range	0.05 kW to 7.0 kW
Protection Class	IP20
Communication	USS/Modbus RTU
Feedback	Incremental encoder
Input Voltage	1AC 200 V to 240 V, 3AC 380 V to 480 V
Control Modes	Position, Speed, Torque
Operating Temperature	0 °C to +40°C
Storage Temperature	-40°C to +70°C
Relative Humidity	5% to 95% (non-condensing)
Altitude	Up to 1000 m above sea level
