Siemens SINAMICS V90 User Manual

General information
2.1 Scope of delivery
SINAMICS V90, SIMOTICS S-1FL6
30 Operating Instructions, 04/2019, A5E36037884-007
2.1.2
Motor components

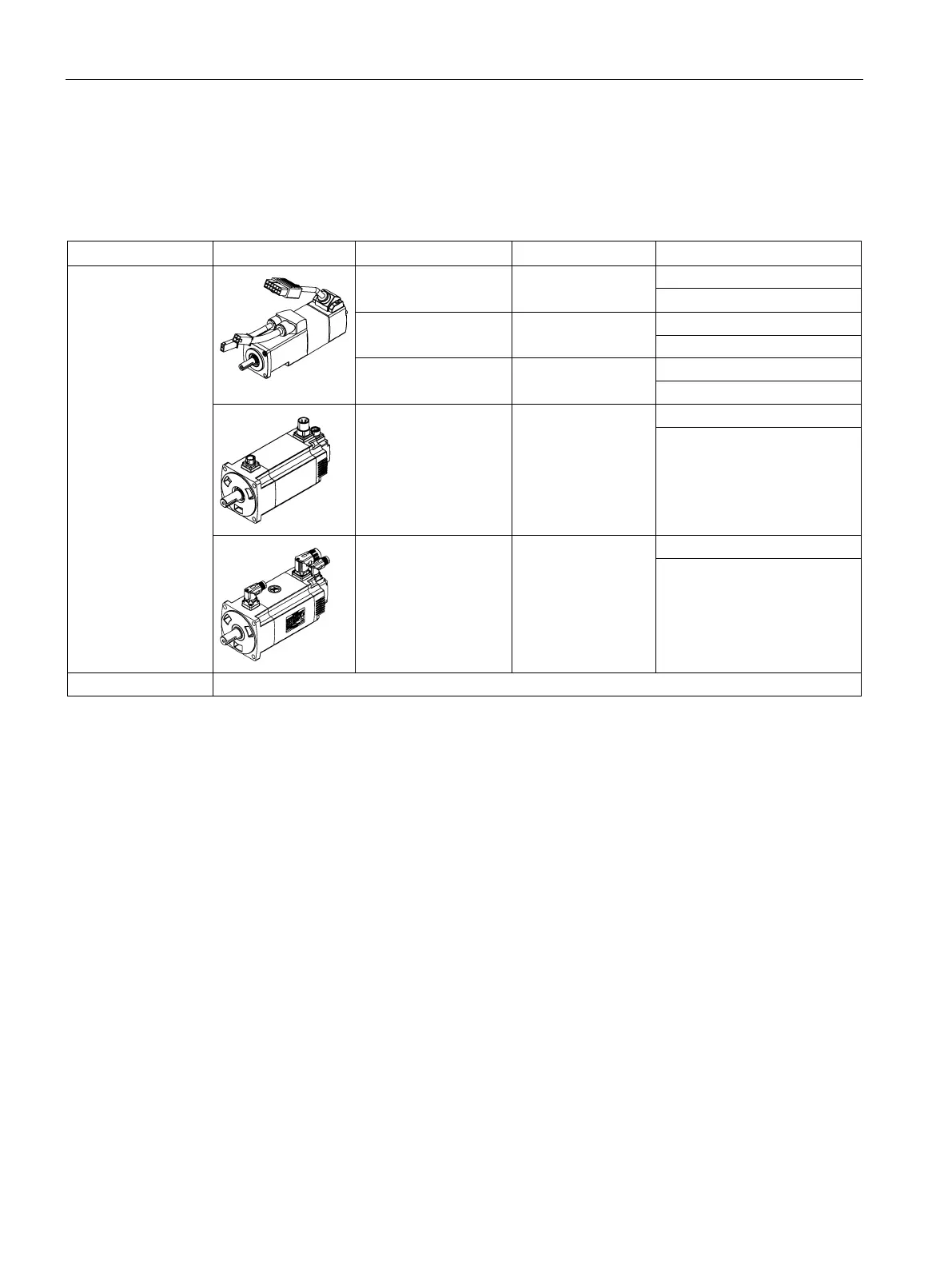

Components in the SIMOTICS S-1FL6 low inertia motor package
Component
Illustration
Rated power (kW)
Shaft height (mm)
Article number
SIMOTICS S-1FL6,
low inertia
0.05/0.1 20
1FL6022-2AF21-1❑❑1
1FL6024-2AF21-1❑❑1
0.2/0.4 30
1FL6032-2AF21-1❑❑1
1FL6034-2AF21-1❑❑1
0.75/1.0 40
1FL6042-2AF21-1❑❑1
1FL6044-2AF21-1❑❑1
1.5/2.0 50
1FL6052-2AF21-0❑❑1
1FL6054-2AF21-0❑❑1
1.5/2.0 50
1FL6052-2AF21-2❑❑1
1FL6054-2AF21-2❑❑1
User documentation
SIMOTICS S-1FL6 Servo Motors Installation Guide
Note: For the SH50 motors with a multi-turn absolute encoder, only angular connector version is available.

Siemens SINAMICS V90 Specifications

General

Power Range	0.05 kW to 7.0 kW
Protection Class	IP20
Communication	USS/Modbus RTU
Feedback	Incremental encoder
Input Voltage	1AC 200 V to 240 V, 3AC 380 V to 480 V
Control Modes	Position, Speed, Torque
Operating Temperature	0 °C to +40°C
Storage Temperature	-40°C to +70°C
Relative Humidity	5% to 95% (non-condensing)
Altitude	Up to 1000 m above sea level
