Siemens SIWAREX WP251 User Manual

Errors and messages
9.6 Operating errors
SIWAREX WP251
Manual, 12/2015, A5E37203357A
177
9.6.5

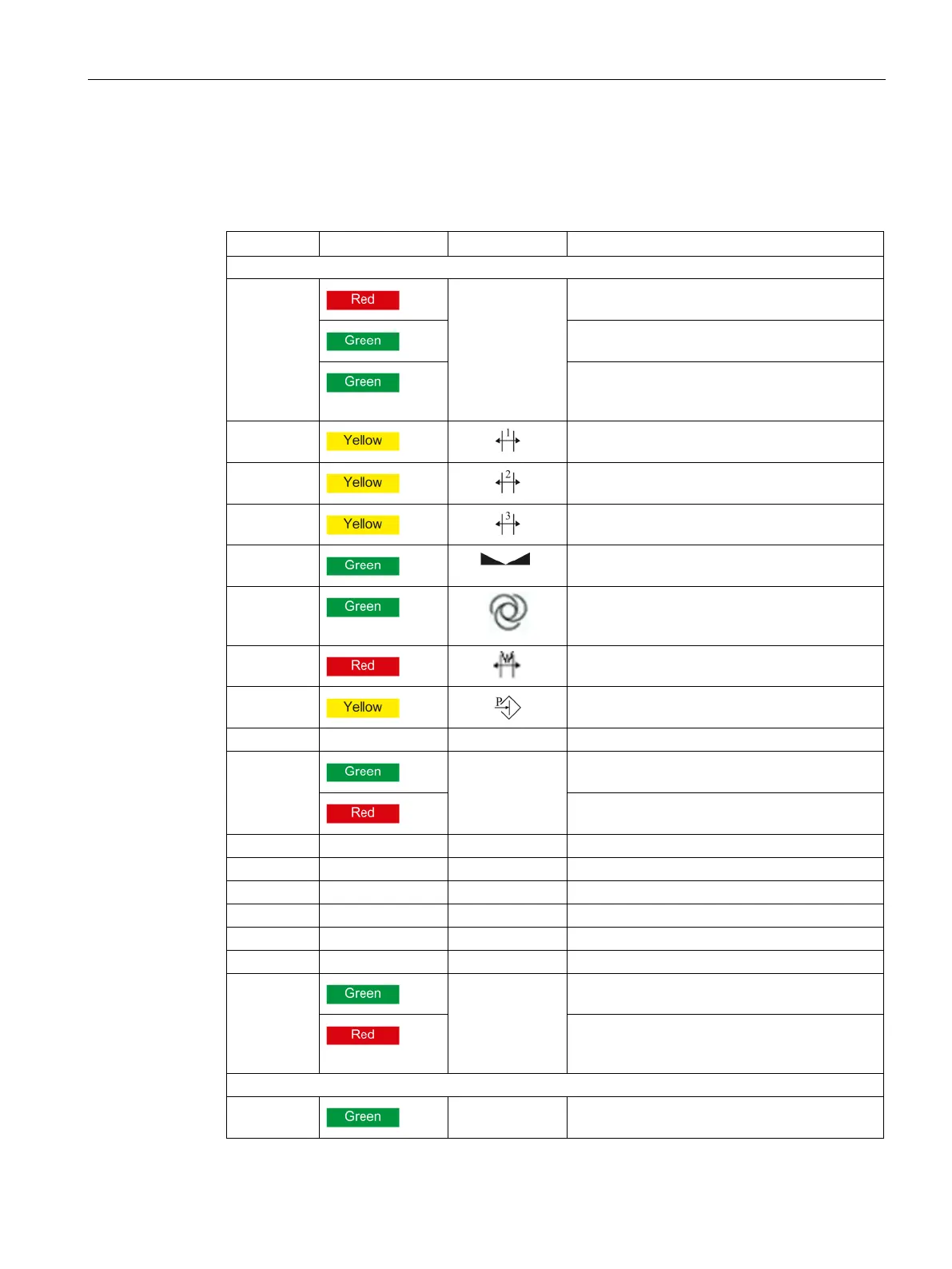

Messages by LEDs on the module
The LEDs on the front of the SIWAREX module signal the following status and error
messages.
Item
Color
Labeling
Function
Line 1
LED 0
DIAG
System fault
Ready
Flashing
Service mode is switched on
LED 1
Limit 1 responded
LED 23
Limit 2 responded
LED 3
Limit 3 responded (empty limit)
LED 4 Standstill status
LED 5
Flashing
Automatic weighing active
LED 6 Outside of weighing range
LED 7
Parameter input blocked (write protection)
LED 8
Not used
LED 19
LC
Load cell(s) OK
Load cell(s) faulty
LED 10
Not used
LED 11
Not used
LED 12
Not used
LED 13
Not used
LED 14
Not used
LED 15
Not used
LED 16
AQ
Analog output active
Flashing
Analog output faulty
Line 2
LED 1
LINK
LAN connection exists
