Communication with SIMATIC S7-1200
11.1 Integration in SIMATIC S7-1200
SIWAREX WP251
Manual, 12/2015, A5E37203357A
187
TIA Portal automatically assigns a separate I/O start address and a HW ID for every
SIWAREX present in the project. These two parameters are relevant for calling the function
block, and can be obtained from the properties of the respective module.

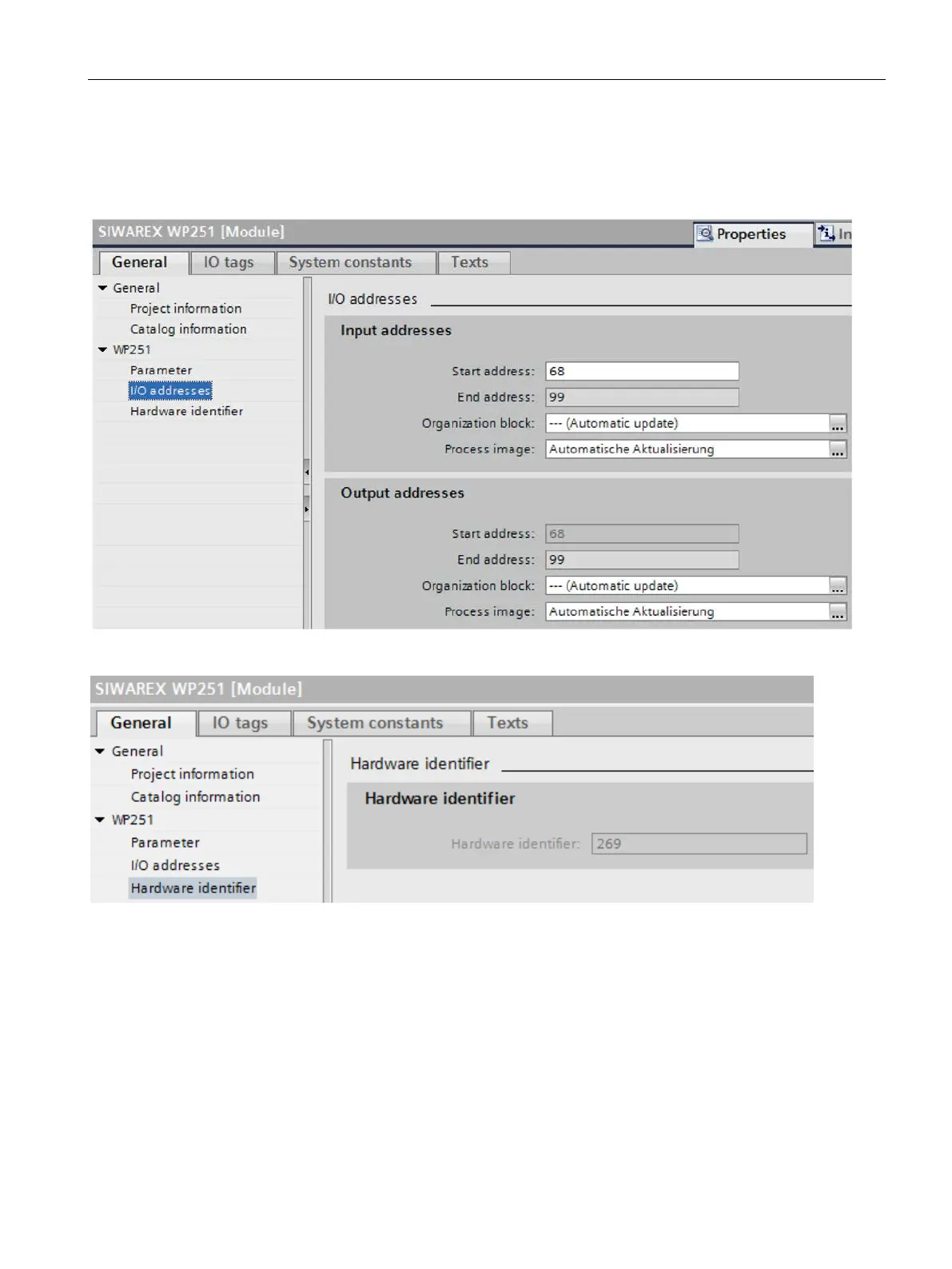

Image 11-3 Start address of the module
Image 11-4 Hardware identifier
Diagnostic interrupts can be optionally enabled or deactivated in the module properties.
