Commissioning
7.5 Service with the SIWATOOL program
SIWAREX WP251
50 Manual, 12/2015, A5E37203357A

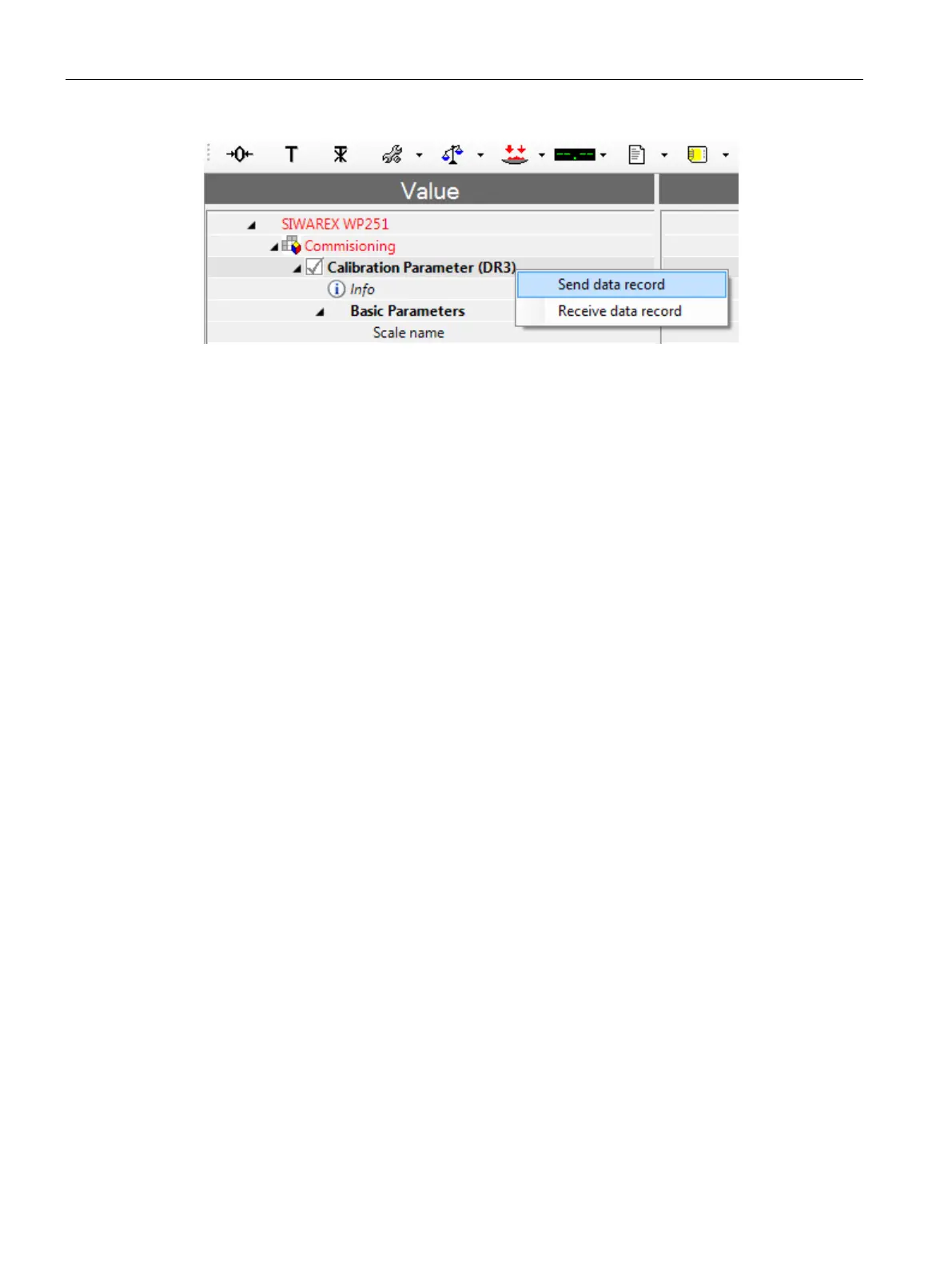

Image 7-6 Sending/receiving a data record in SIWATOOL V7
Offline parameter assignment
All scale parameters can be edited and saved without an electronic weighing system.
This reduces the setup time. You can thus prepare the parameters for several scales in your
office, and subsequently transfer them to the electronic weighing system during setup.
Data from one scale currently in operation can be exported and used to set up another scale.
IP address for SIWAREX
7.5.4.1
The factory-set IP address is 192.168.0.21. This address is also preset in SIWATOOL. The
connection to a SIWAREX module can be established immediately. The network card used
must be configured for this network.
If the connection is to be established to a specific SIWAREX module, its IP address must be
set in SIWATOOL. The setting is made in menu item "Communication/Define Network
Settings...".
If the IP address of a SIWAREX module is unknown, it can be determined using the
additional program "Primary Setup Tool". The program is included in the SIWAREX
configuration package.
During the setup, a new IP address can be assigned to the module using SIWATOOL.
The assignment of a new IP address to a SIWAREX module is necessary if several
SIWAREX modules are present in one network.
The following ports are used by SIWAREX:
● SIWATOOL port: 23006
● MODBUS TCP/IP port: 502
● TFTP for firmware download port: 69
