Siemens SIWAREX WP251 User Manual

SIWAREX WP251
Manual, 12/2015, A5E37203357A
29
Connection
6
6.1
Overview
All external connections (with the exception of the Ethernet interface) are made by means of
the screw connectors (terminal block 1 to 4).
①
24 V connection
⑥
Digital input connection
②
Analog output connection
⑦
Ethernet interface connection
③
Load cell connection
⑧
Calibration bridge connection
④
RS485 interface connection
⑨
Mounting terminals for the calibration protection plate
⑤
Digital output connection

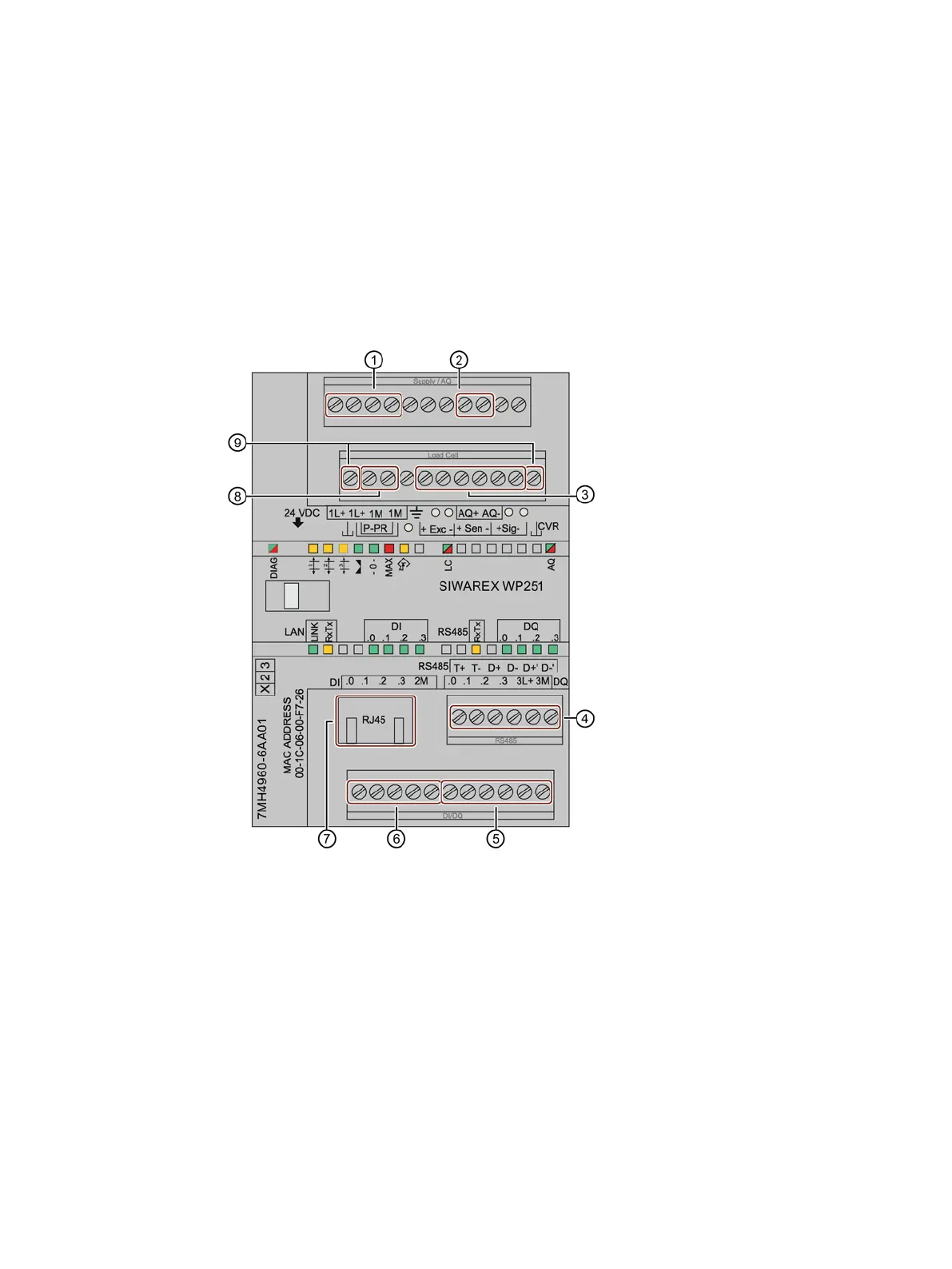

Image 6-1 SIWAREX WP251 connection areas
