Adds a border to
the image frame.
You can adjust the
width (or thickness)
of the border, its
color, and the
softness of the
border edges.
Crops away the
edges of the image.
You can crop the
top, bottom, left,
and right sides
individually or all
together. You can
also soften the
cropped edges.
Chapter
10
DME
Operations

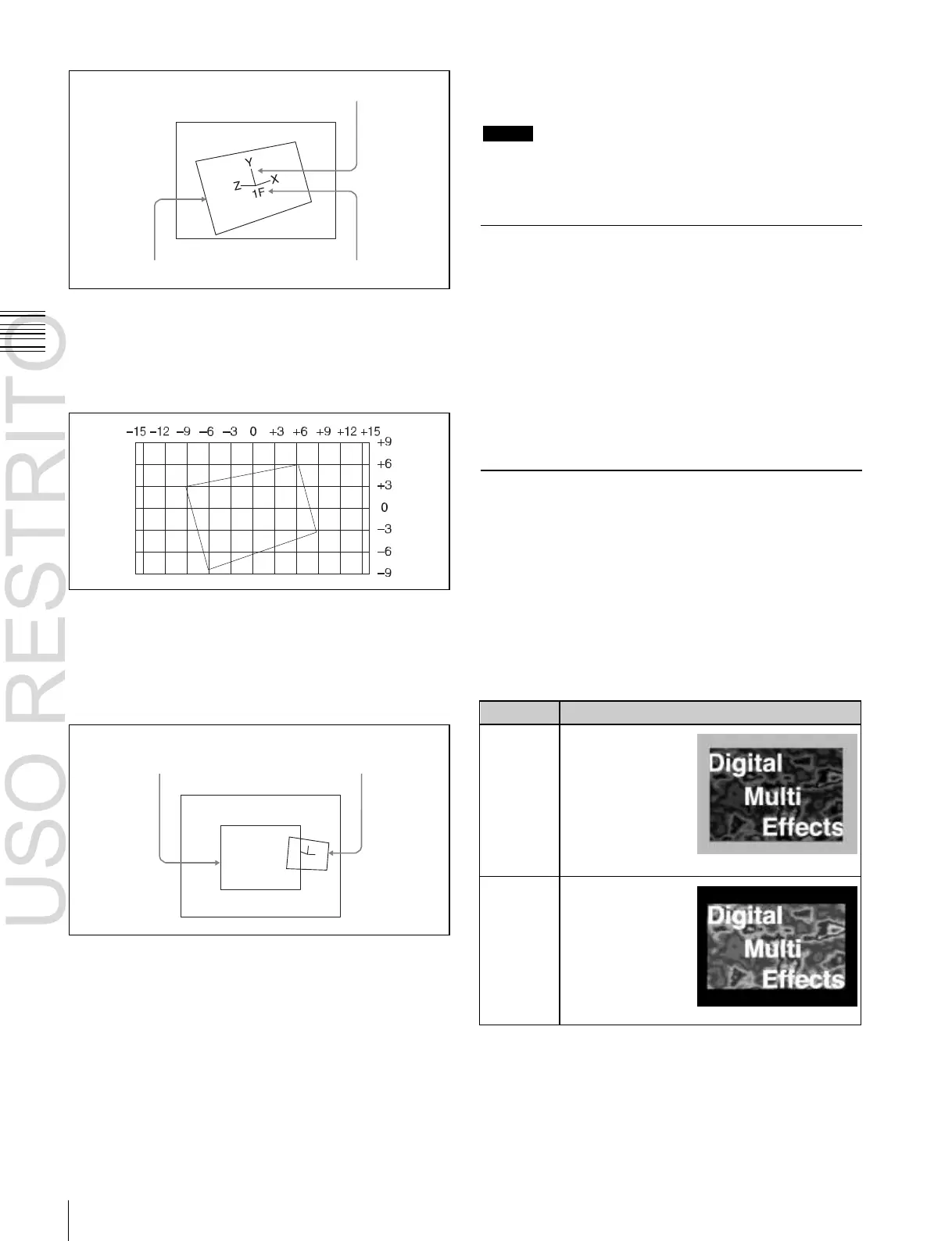

Local coordinate space axes
axis. This is an effective function for making Flex Shadow
settings.
Notes
The Flex Shadow center axis function is not supported by
the MKS-6570 and the MVE-8000A.
Grid
Wire frame
Channel ID
Three-Dimensional Parameter
Display
You can display a three-dimensional parameter list for the
This is a grid pattern representing the whole of the monitor
screen.
The grid makes it easy to set the position of an image in
two-dimensional coordinates.
currently controlled image.
When more than one DME channel is selected, the status
of the reference channel is displayed.
For details about how to display a parameter list and an
example display,
1
“Viewing the three-dimensional
parameter details” (p. 171).
Special Effects
You can use DME to add a variety of special effects.
The following special effects can be applied.
Shrinking the graphics display
You can shrink the graphics display so that you can see
beyond the range displayed on the normal monitor screen.
This makes it possible to visually set the location of images
in a larger space. The range displayed on a normal monitor
screen is indicated by a frame.
Range displayed
Functions that can be used differ with the models of DME.
For details,
1
“Functional Differences with DME
Models” (p. 420).
Edge effects
on normal monitor
screen
Wire frame
To automatically erase the graphic display
Turn [Auto Erase] on. The graphic display is erased
automatically whenever a keyframe is executed. It is
displayed again after the keyframe ends, after the time set
in Recover Time.
Flex Shadow center axis
When using the flex shadow function
(
1
p. 178), turn on
[Flex Shadow Axis] to display the Flex Shadow center
To Next Page
