Independent
key transition
Insert/delete DSK1 to
DSK8 using
independent key
transitions.
Set DSK1 to DSK8
independent key
transitions.
Save/recall DSK1 to
DSK8 key snapshots.
Select DSK5 to DSK8
in the Flexi Pad.
Select DSK5 to DSK8
using the menu VF
buttons.
Select DSK5 to DSK8
in the device control
block.
Select to set key 1 to 4
or key 1 to 8 as the
key wipe position
adjustment keys.
Select key 5 or key 6
resizer on the device
control block.
Selecting DSK1 to DSK8 using the
Next Transition Selection Buttons
In order to select DSK5 to DSK8 using the next transition
buttons, it is first necessary to assign the buttons required
for operation in the Engineering Setup >Panel >Transition
Module menu (7321.9).
For details,
1
“Setting Transition Control Block Button
Assignments” (p. 327).

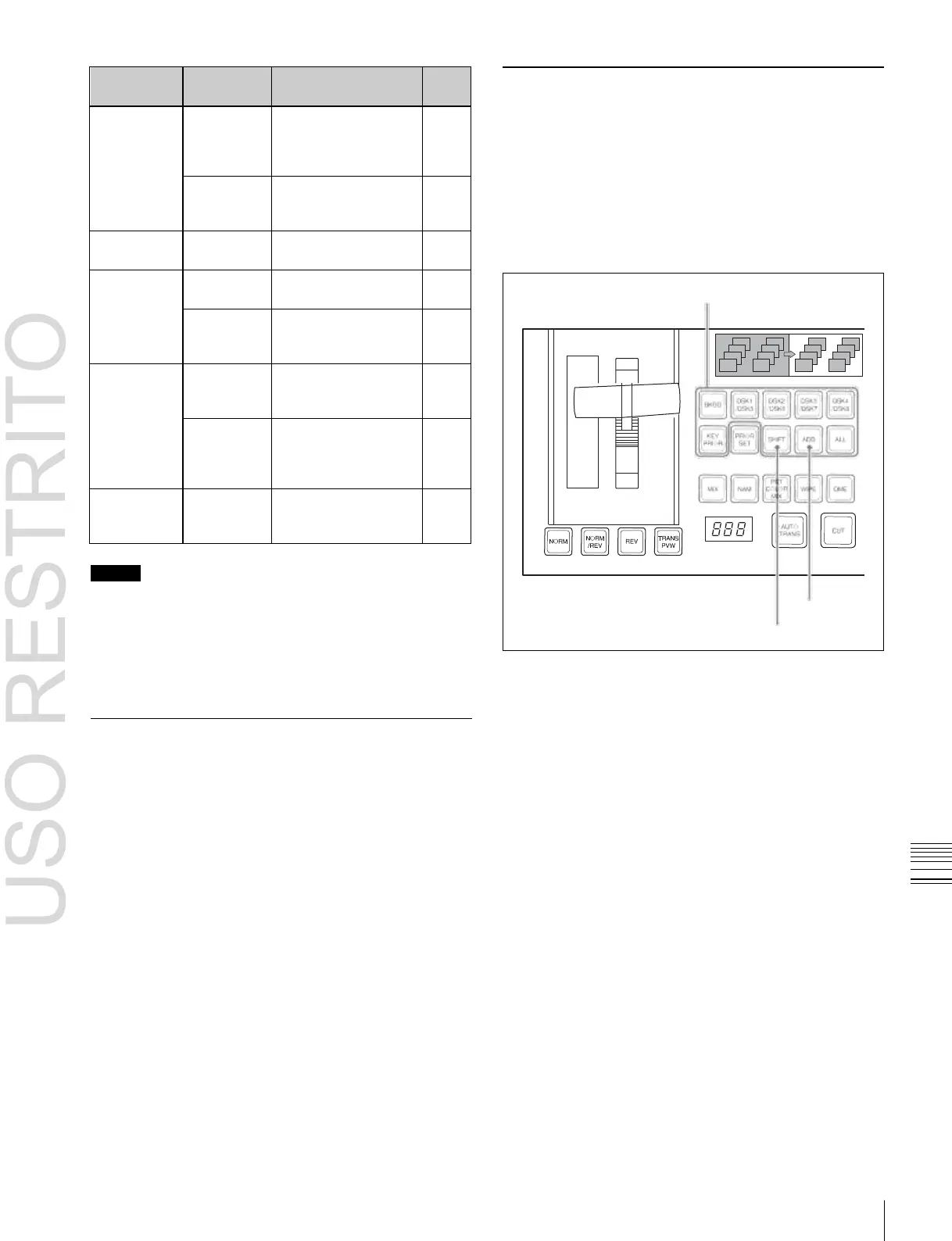

Next transition selection buttons
Notes
The transition control block on the ICP-3000/3016 does
not have buttons for inserting and deleting DSK5 to DSK8
independent key transitions. You can insert and delete
DSK5 to DSK8 using the [KEY ON] and [AUTO TRNS]
buttons on the Flexi Pad when in key snapshot mode.
ADD button
SHIFT button
8-
keyer transition control block
(PGM/PST bank)
The following describes how to select DSK1 and DSK5 as
Selecting DSK5 to DSK8 Signals in
the 2nd Row of the Cross-Point
Control Block
To select the DSK5 to DSK8 signals using 2nd row cross-
point buttons, it is necessary to assign the keyer delegation
buttons to the 1st row beforehand.
You assign them in the same way as key 1 to key 4 in the
Engineering Setup >Panel >Operation >Key/AUX/
Function Assign menu (7326.13).
For details,
1
“Assigning a Bus or Function to 1st Row
Buttons” (p. 340).
1
In the 1st row, press the button assigned to one of
DSK5 to DSK8.
2
In the 2nd row, select the desired signal.
an example.
To select DSK1
With the [SHIFT] button off, press the [DSK1/DSK5]
button.
To select DSK5
Press [SHIFT], turning it on, then press the [DSK1/DSK5]
button.
To select DSK1 and DSK5 simultaneously
1
With the [SHIFT] button off, press the [DSK1/DSK5]
button.
DSK1 is selected.
2
Press the [SHIFT] button, turning it on.
3
Press and hold the [ADD] button, then press the
[DSK1/DSK5] button.
DSK1 and DSK5 are both selected.
