USO RESTRITO
Menu Access by Pressing a Button Twice 417
Appendix

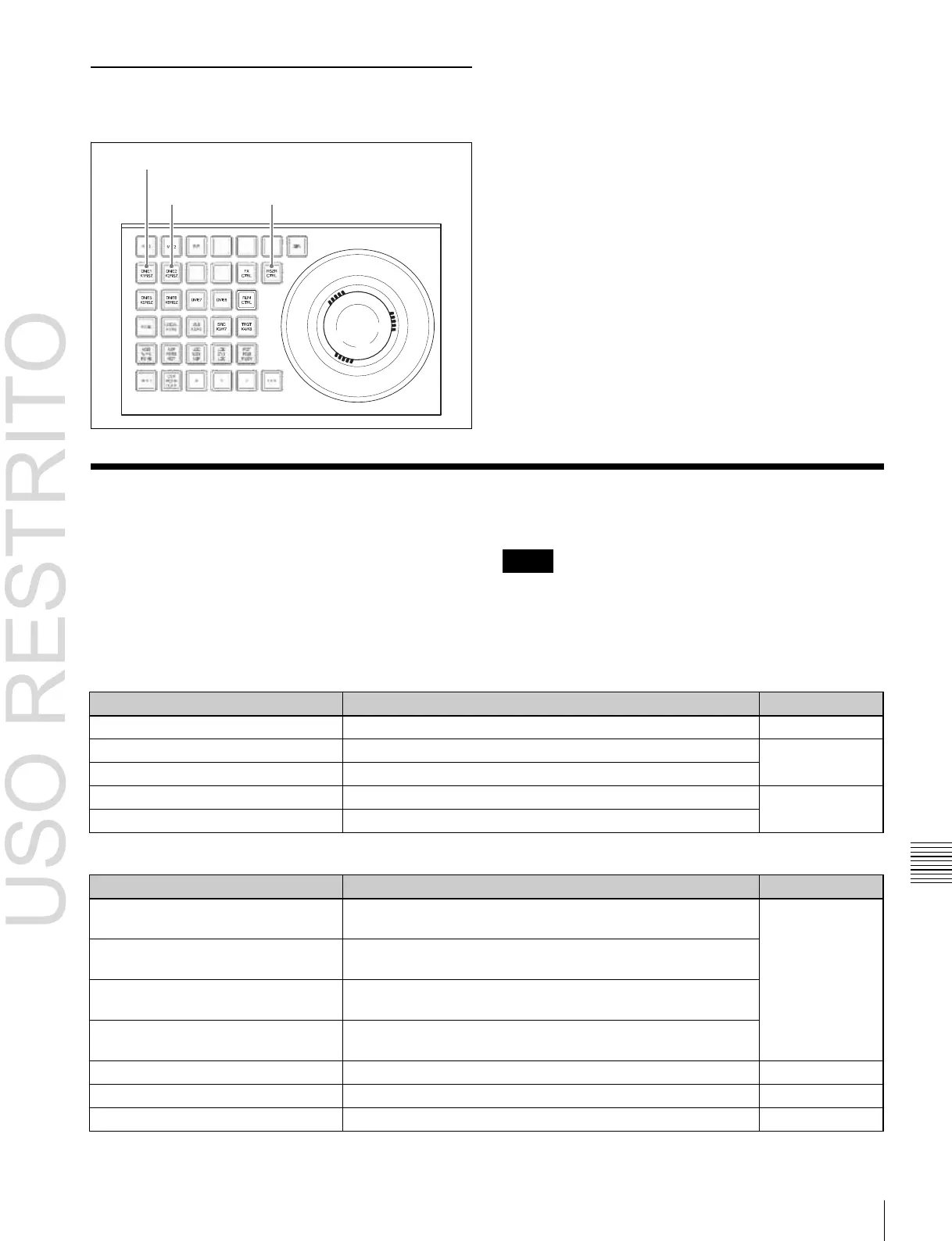

Selecting Key 5 or Key 6 Resizer in
the Device Control Block
1 Press the [RSZR CTRL], turning it on.
2 Press either the [K5RSZ] or [K6RSZ] button to select
the key.
K5RSZ button
K6RSZ button RSZR CTRL button
Keyers that support resizer/key edge
In an 8-keyer PGM/PST bank, the following four keyers
support the resizer and key edge functions.
DSK1, DSK2, DSK5, and DSK6
Menu Access by Pressing a Button Twice
For relevant buttons other than the top menu selection
buttons, pressing twice in rapid succession directly recalls
a related menu page. The following table lists these buttons
of each control block, together with the menus they recall.
XX indicates the last recalled page in each menu.
Notes
Some buttons may be disabled and menus may not appear,
depending on the system configuration.
Cross-point control block
Button
Double-press Menu
Refer to
FM1 to 8 signals assigned buttons
Frame Memory >Still >Recall
p. 131
Color Bkgd1 signal assigned button
Color Bkgd >Color Bkgd1
p. 146
Color Bkgd2 signal assigned button
Color Bkgd >Color Bkgd2
FMS1
Frame Memory >Still >Recall
p. 131
FMS2
Frame Memory >Still >Recall
Transition control block
Button
Double-press Menu
Refer to
KEY1 (DSK1)
• M/E-1 >Key1 >XX
• PGM/PST >DSK1 >XX
p. 82
KEY2 (DSK2)
• M/E-1 >Key2 >XX
• PGM/PST >DSK2 >XX
KEY3 (DSK3)
• M/E-1 >Key3 >XX
• PGM/PST >DSK3 >XX
KEY4 (DSK4)
• M/E-1 >Key4 >XX
• PGM/PST >DSK4 >XX
WIPE
M/E-1, PGM/PST >Wipe >Main Pattern
p. 101
DME
M/E-1, PGM/PST >DME Wipe >XX
p. 115
SUPER MIX
M/E-1, PGM/PST >Misc >Transition
p. 67
