Names and Functions of Parts of the Control Panel
Chapter
2
Names
and
Functions
of
Parts
Transition Control Block
In the transition control block, you can modify the output
of the M/E bank or PGM/PST bank, and perform
transitions. Both common transition and independent key
transition operations are possible.
6 PRIOR SET button
1 Next transition selection buttons
7 Key priority display
2 Transition type selection buttons
9 Key delegation buttons
qs K-SS STORE button
qa Key snapshot
buttons
3 Transition execution
section
8 Independent key transition
execution section
q; Independent key transition type selection buttons
5 TRANS PVW button
4 Wipe direction selection buttons
Shown above is the right-hand type transition control
block (with the right-hand fader lever).

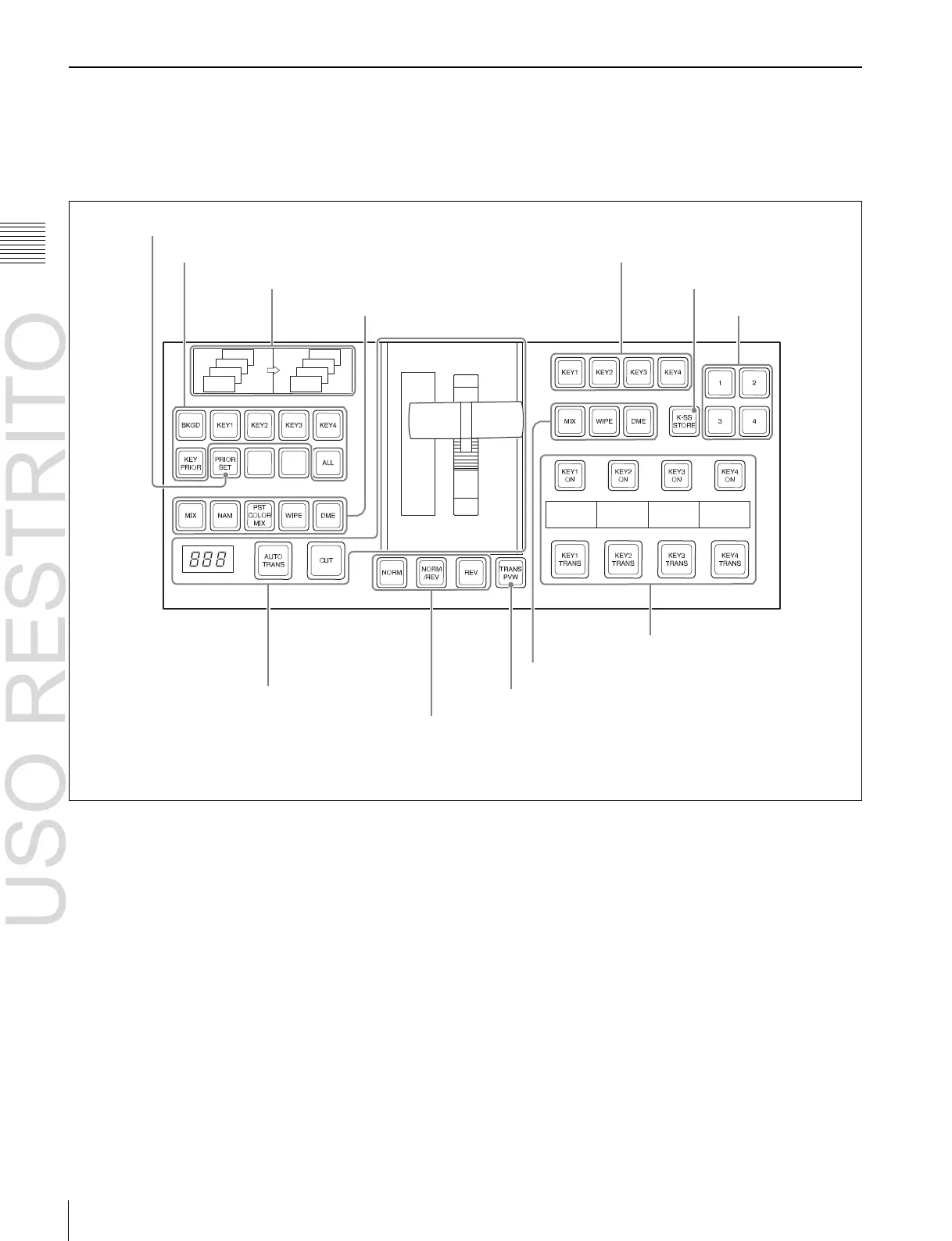

Transition control block
(ICP-6520/6530 M/E banks, ICP-3000/3016 M/E and PGM/PST banks)
