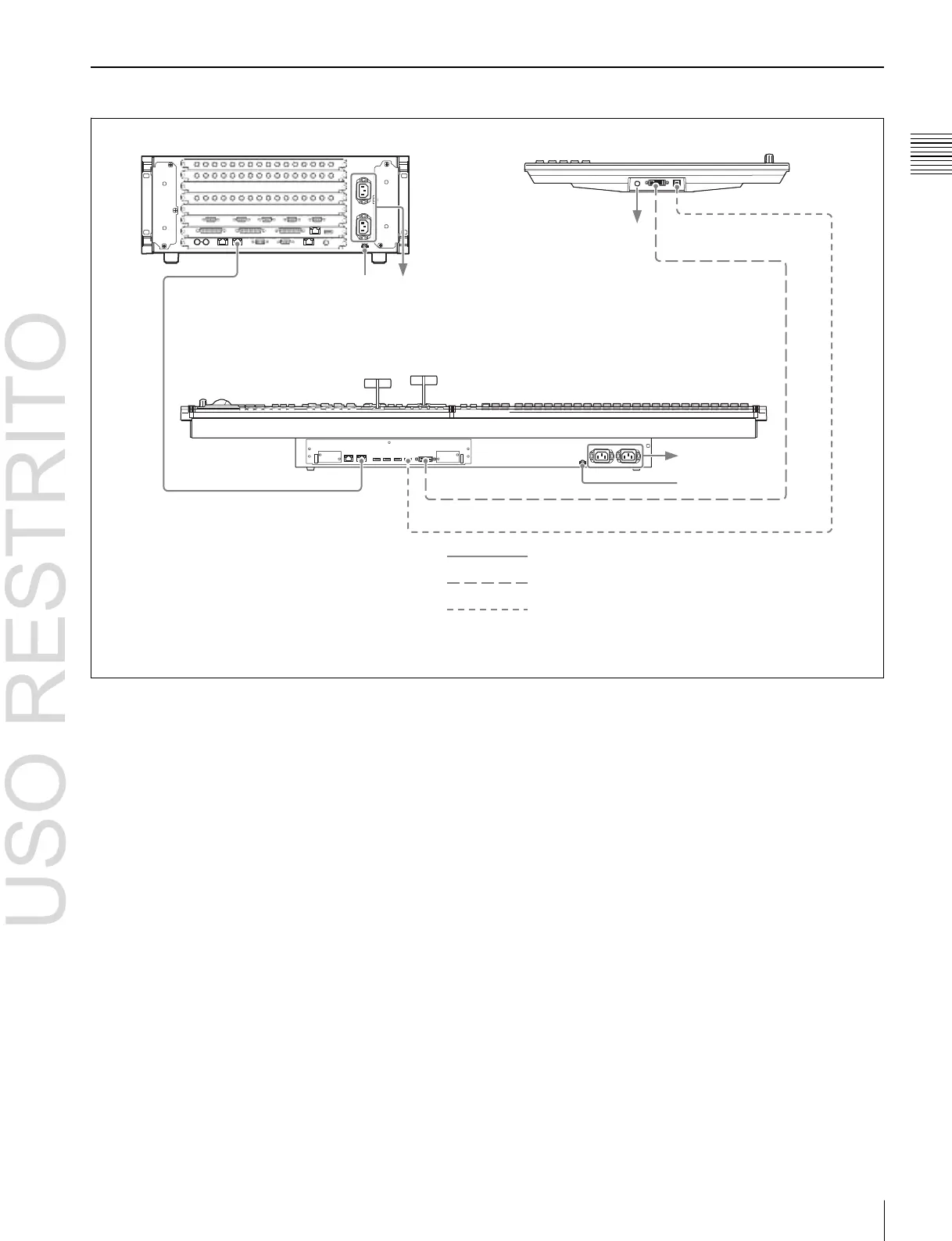

Connection Example
MVS-6520/6530/3000A/3000 Multi Format Switcher Processor
a)
ICP-6511 Menu Panel
DEVICE
MVS
U
AC power supplies
AC power adaptor
DVI-D
ICP-6520/6530/3000/3016 Control Panel
b)
MVS
DVI-D
AC power
supplies
U
DEVICE 1
a)
MVS-6520/3000A/3000 diagram shown.
b)
ICP-6520 diagram shown.
LAN cable (straight type)
DVI cable
USB cable
In addition to these devices, a DCU (MKS-8700/2700) or DME processor
(MVE-
8000A/9000) can be used to extend the system.
To Next Page
