Independent Key Transitions 75
Chapter
3
Signal
Selection
and
Transitions
transition is still not completed, the two end
simultaneously.
Example 2: When the common transition [AUTO TRANS]
button is pressed later
Example: When the independent key transition [AUTO
TRANS] button is pressed later
Independent key
transition (mix)
Common transition (wipe)
The key is deleted, even
if the independent key
transition has not
completed.
Independent key
transition (mix)
The transition
completes with the
key deleted.
Common
transition (wipe)
Time offset execution with the key not inserted: With
the key not inserted, the key is gradually inserted using
the transition type whose [AUTO TRANS] button is
pressed first.
Since the key is then in the inserted state, the transition
whose [AUTO TRANS] button is pressed later will
delete the key. When the key is completely deleted,
both transitions complete.
Basic Independent Key Transition
Operations
Switching keys with independent key
transitions
To set independent transitions for the keyers on a switcher
bank, use the transition control block.

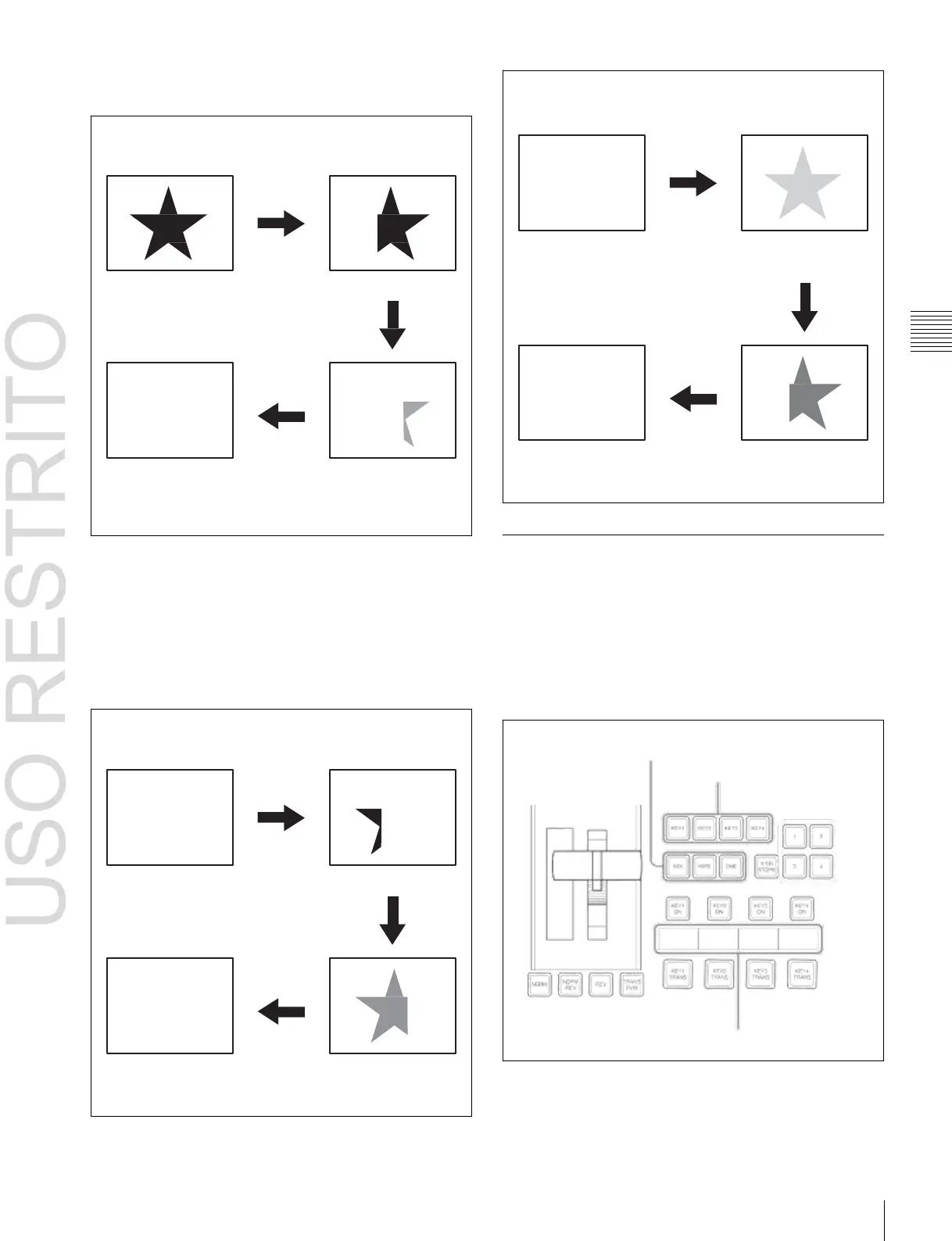

Example 1: When the independent key transition [AUTO TRANS]
button is pressed later
Common transition (wipe)
Independent key transition type selection buttons
Key delegation buttons
Key source name display
The transition
completes with the
key deleted.
Independent key
transition (mix)
Transition control block
(ICP-6520/6530 M/E banks, ICP-3000/3016 M/E and
PGM/PST banks)
