Sony ICP-6530 User Manual

USO RESTRITO
Global Effect Operations 223
No.
Parameter
Adjustment
1
Soft2
Softness of edges of channel 7
and channel 8 crossed section
No.
Parameter
Adjustment
1
Height
Height of brick
2
Front
Overlap
Front overlap
3
Side H
Overlap
Side H overlap
4
Side V
Overlap
Side V overlap
Chapter
10
DME
Operations
Crossing images from channels 5 and 6,
and channels 7 and 8 in three dimensions
Notes
Three-dimensional image crossing is not supported on the
MKS-6570 or MVE-8000A.
1 In the Global Effect >Ch5-Ch8 >Combiner Priority
menu (4221), press [Combiner1 Depth], turning it on.
2 Adjust the following parameter.
No.
Parameter
Adjustment
1
Soft1
Softness of edges of channel 5
and channel 6 crossed section
3 Press [Combiner2 Depth], turning it on.
4 Adjust the following parameter.
Applying the Brick effect
1 Open the Global Effect >Ch5-Ch8 >Brick menu
(4222).
2 Press [Brick], turning it on.
The Brick effect is enabled, and a rectangular
parallelepiped (brick) showing the images of three
channels appears. You can adjust parameters for the
height of the brick and the overlap between the three
images.
Notes
• When the Brick effect is enabled, the Z-axis position of the front image in the source coordinate frame is
shifted by the amount of half the height. Therefore,
the image is somewhat magnified.
• The flex shadow function ( 1 p. 178) cannot be
enabled when Brick is enabled.
3 Set the following parameters.

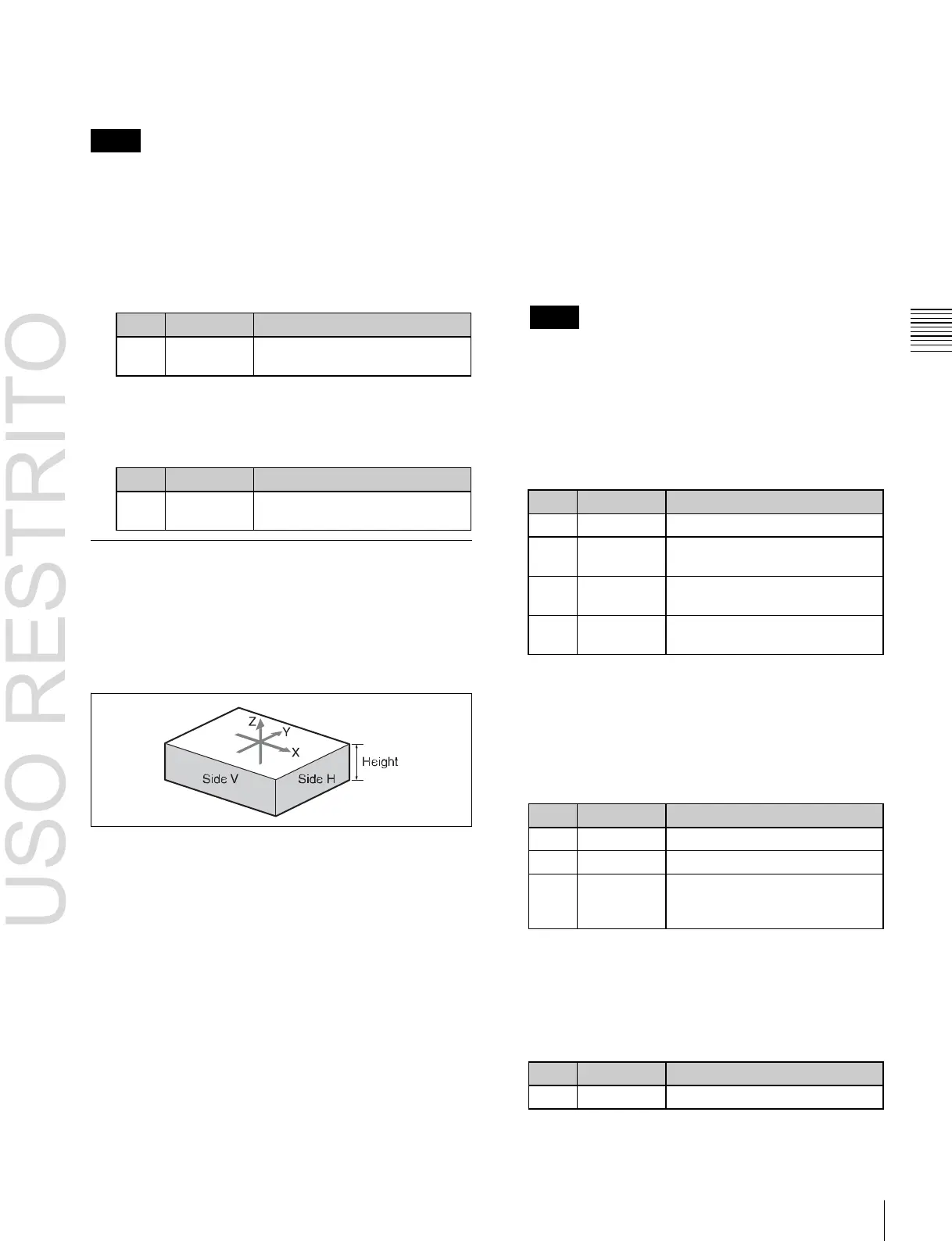

Brick Settings
Brick allows you to create a rectangular parallelepiped by
using images of three consecutive channels.
The Brick effect can combine Ch5, Ch6, and Ch7, or
combine Ch6, Ch7, and Ch8. The three images are
displayed as shown in the following figure.
Combination of Ch5, Ch6, and Ch7
Upper side: Ch5 image
Side V: Ch6 image
Side H: Ch7 image
Combination of Ch6, Ch7, and Ch8
Upper side: Ch6 image
Side V: Ch7 image
Side H: Ch8 image
You can adjust the height of the brick, the overlap between
the three images and the way to insert the side images.
4 Specify the way to insert the side images when the
height is changed by pressing one of the following
buttons in the <Side V> group or the <Side H> group.
Crop: Crop the parts that do not fit into the side
without shrinking the picture. You can set the
following parameters.
No.
Parameter
Adjustment
1
H
Crop position on left side
2
V
Crop position on top side
3
Rotation
Angle of rotation, when rotated
around the Z-axis of the source
space
The set position becomes the upper left corner of Side
V or Side H. The right and bottom sides of the inserted
image are set automatically.
Compress: Images are inserted after being
compressed. You can set the following
parameters.
No.
Parameter
Adjustment
1
Top
Crop position on top side
