Creation of Special Effects and Management of Data and Operations 21
•
DME channel settings
•
Format converter input settings (copy only)
•
Format converter output settings (copy only)
For details, see “Copy and Swap”
(
1
p. 147) in chapter
8.
Color Corrector
The color corrector enables video signal color correction
(black balance/white balance adjustment, gamma
correction, knee correction, etc.).
The color corrector includes the following adjustments.
•
Input video processing
•
Primary color correction
•
RGB clip
For details, see “Configuring the Color Corrector”
(
1
p. 347) in chapter 19.

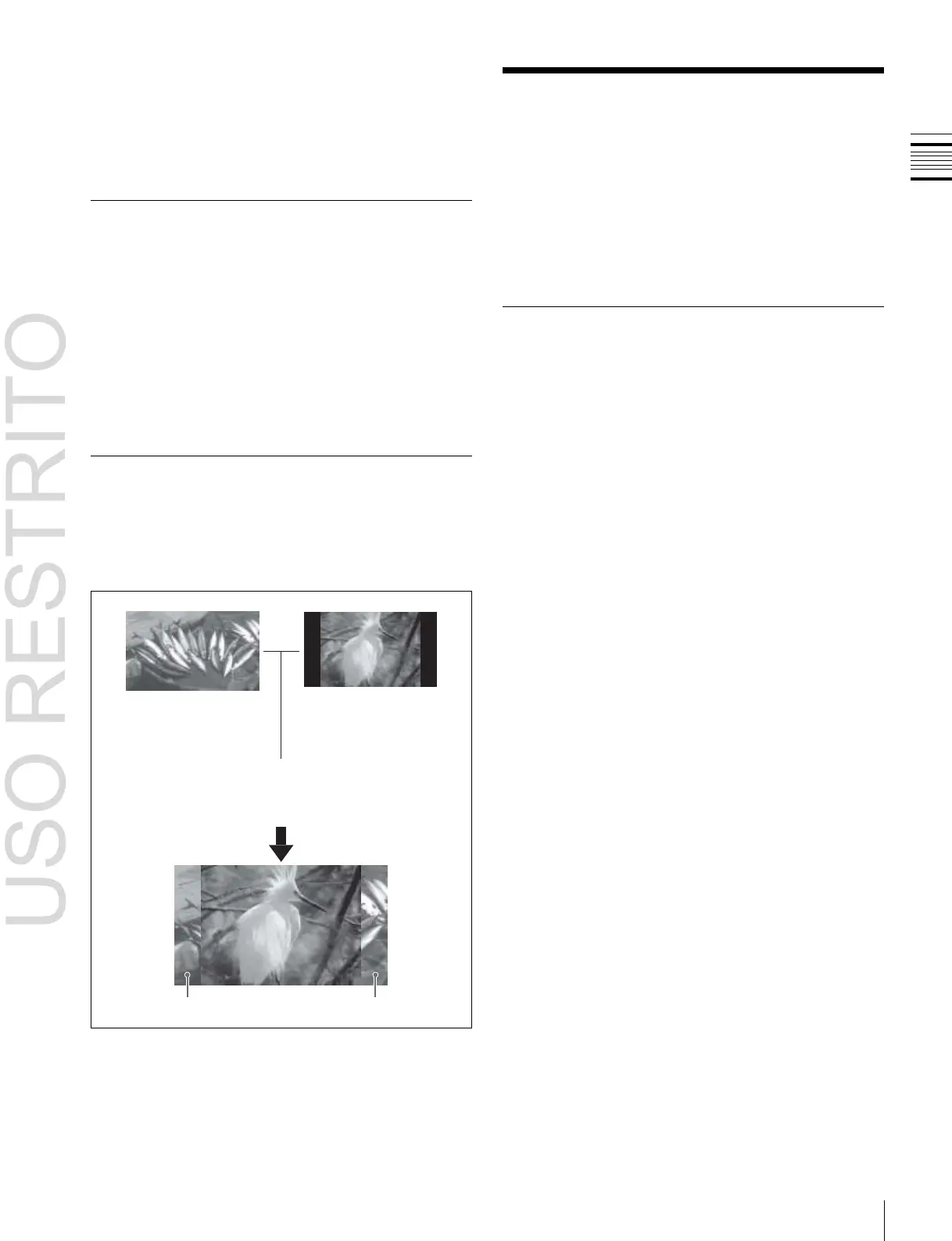

Side Flags
The term “side flags” refers to the areas to left and right of
an image with aspect ratio 4:3 embedded within a 16:9
frame, when these areas are filled with a separate image
selected from the utility bus.
Creation of Special
Effects and Management
of Data and Operations
This section introduces functions used for creation of
special effects, control of external devices or switcher
operations, and data management.
Digital Multi Effects (DME)
When used with the switcher, DME allows you to add
three-dimensional effects such as image movement,
rotation, magnification and shrinking, as well as a wide
variety of special effects.
Each channel can be used on its own or in combination
with other channels, which allows you to create advanced
effects with more complexity.
The following types of DME special effects are available.
•
Edge effects: Border, Crop, Beveled Edge, Key Border,
Art Edge, Flex Shadow, Drop Shadow
•
Effects for entire image: Defocus, Blur, Multi Move
•
Effects for video image: Sepia, Mono, Posterization,
Solarization, Nega, Contrast, Mosaic, Mask, Sketch,
Metal, Dim and Fade, Glow
•
Freeze effects
•
Nonlinear effects: Wave, Mosaic Glass, Flag, Twist,
Ripple, Rings, Broken Glass, Flying Bar, Blind, Split,
Image to fill the side flag
areas (selected from
utility bus)
Input source with 4:3
aspect ratio
Split Slide, Mirror, Multi Mirror, Kaleidoscope, Lens,
Circle, Panorama, Page Turn, Roll, Cylinder, Sphere,
Explosion, Swirl, Melt, Character Trail
•
Lighting effects: Lighting, Spotlighting
Turn on the side
flag function
•
Recursive effects: Trail, Motion Decay, Keyframe
Strobe
•
Background color
•
Separate Sides (effects for front and back sides)
•
Signal inversion (Invert effect)
•
Key density adjustment
•
Key source selection
Side flag area
Side flag area
Global Effects
Global effects are special effects created by combining the
images of successive channels. Combiner, Brick, and
Shadow global effects are available.
For details, see Chapter 10 “DME Operations”
(
1
p. 157).
For details, see “Side Flags”
(
1
p. 154) in chapter 9.
