2-3-2. Loupe Assembly

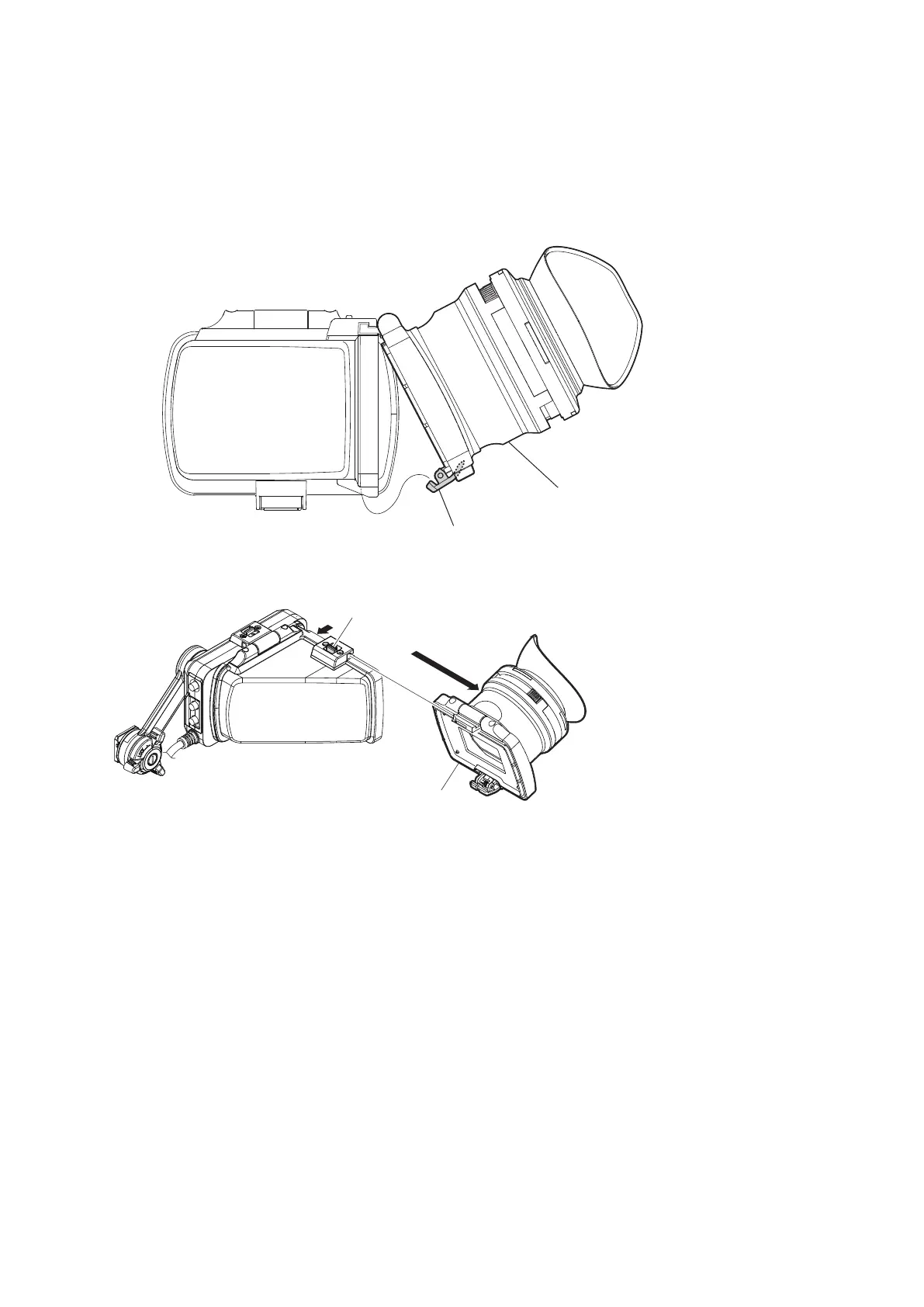

Procedure
1. Release the lock lever and open the loupe assembly.
Lock lever
Side view
Loupe assembly
2. Remove the loupe assembly in the arrow B direction while sliding the slide switch in the arrow A direction.
A
B
Slide switch
Loupe assembly
3. Install the removed parts by reversing the steps of removal.
