2-3-7. IF-1242 Board/LCD Module

Note

The following parts are not reusable. when replacing the LCD module, prepare new parts in advance.

• LCD frame sheet

Preparation

1. Remove the elbow assembly. (Refer to “2-3-4. Elbow Assembly”)

2. Remove the SW-1603 board/VR-351 board. (Refer to “2-3-6. SW-1603 Board/VR-351 Board”)

Procedure

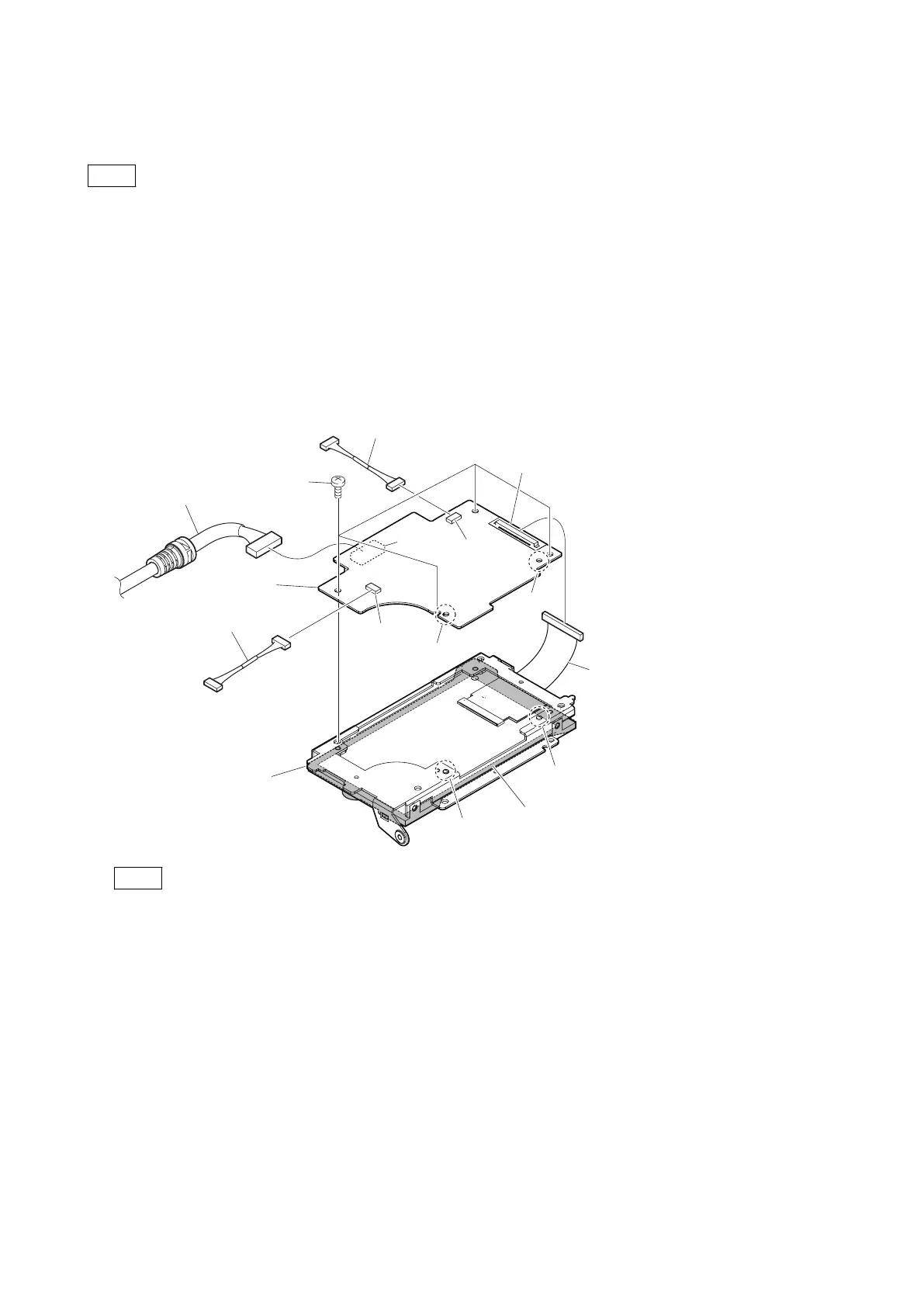

1. Disconnect the three harnesses from the three connectors (CN200, CN301, and CN302) on the IF-1242 board.

2. Remove the four screws to detach the IF-1242 board.

3. Disconnect the VF cable from the connector (CN300) on the IF-1242 board.

P2 x 3

Harness

VF cable

IF-1242 board

Hole

CN301

CN300

CN302

CN200

Harness

Hole

Boss

LCD module

LCDframesheet

Note

When installing the IF-1242 board, fit the two bosses with the two holes.

4. Install the removed parts by reversing the steps of removal.

PMW-300

2-16
