2-3-5. Elbow Sub Assembly/VF Mirror Assembly
Preparation
1. Remove the VF assembly. (Refer to “2-3-1. VF Assembly”)
2. Remove the loupe assembly. (Refer to “2-3-2. Loupe Assembly”)
3. Remove the elbow assembly. (Refer to “2-3-4. Elbow Assembly”)
Procedure

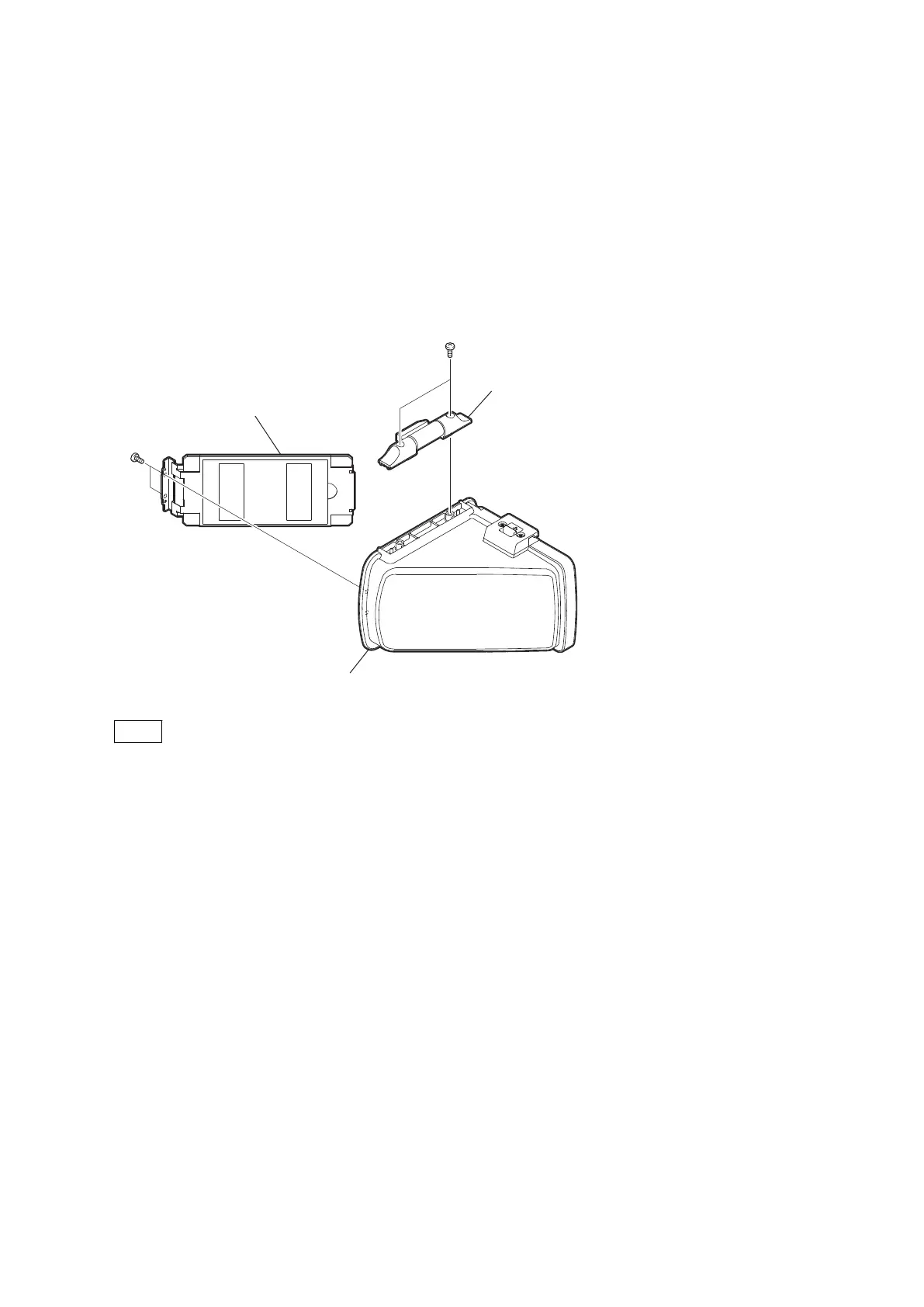

1. Remove the two screws (P2.6 x 4) to detach the switching hinge block.
2. Remove the two screws (B2 x 5) to detach the VF mirror assembly from the elbow sub assembly.
VF mirror assembly
P2.6 x 4
Switching hinge block.
Elbow sub assembly
B2 x 5
Note
Do not touch the mirror surface. If it is contaminated, clean it with a wiping cloth.
3. Install the removed parts by reversing the steps of removal.
