2-19. Lens Unit
Preparation
1. Remove the bottom panel assembly. (Refer to “2-5. Bottom Panel Assembly”)
2. Remove the inside panel assembly. (Refer to “2-6-1. Inside Panel Assembly”)
3. Remove the outside panel assembly. (Refer to “2-7-1. Outside Panel Assembly”)
4. Remove the rear panel assembly. (Refer to “2-8. Rear Panel Assembly”)
5. Remove the handle assembly. (Refer to “2-11-1. Handle Assembly”)
6. Remove the IO block. (Refer to “2-10. IO Block”)
7. Remove the DCP-64 board. (Refer to “2-14. DCP-64 Board”)
8. Remove the front lens assembly. (Refer to “2-15. Front Lens Assembly”)
Procedure

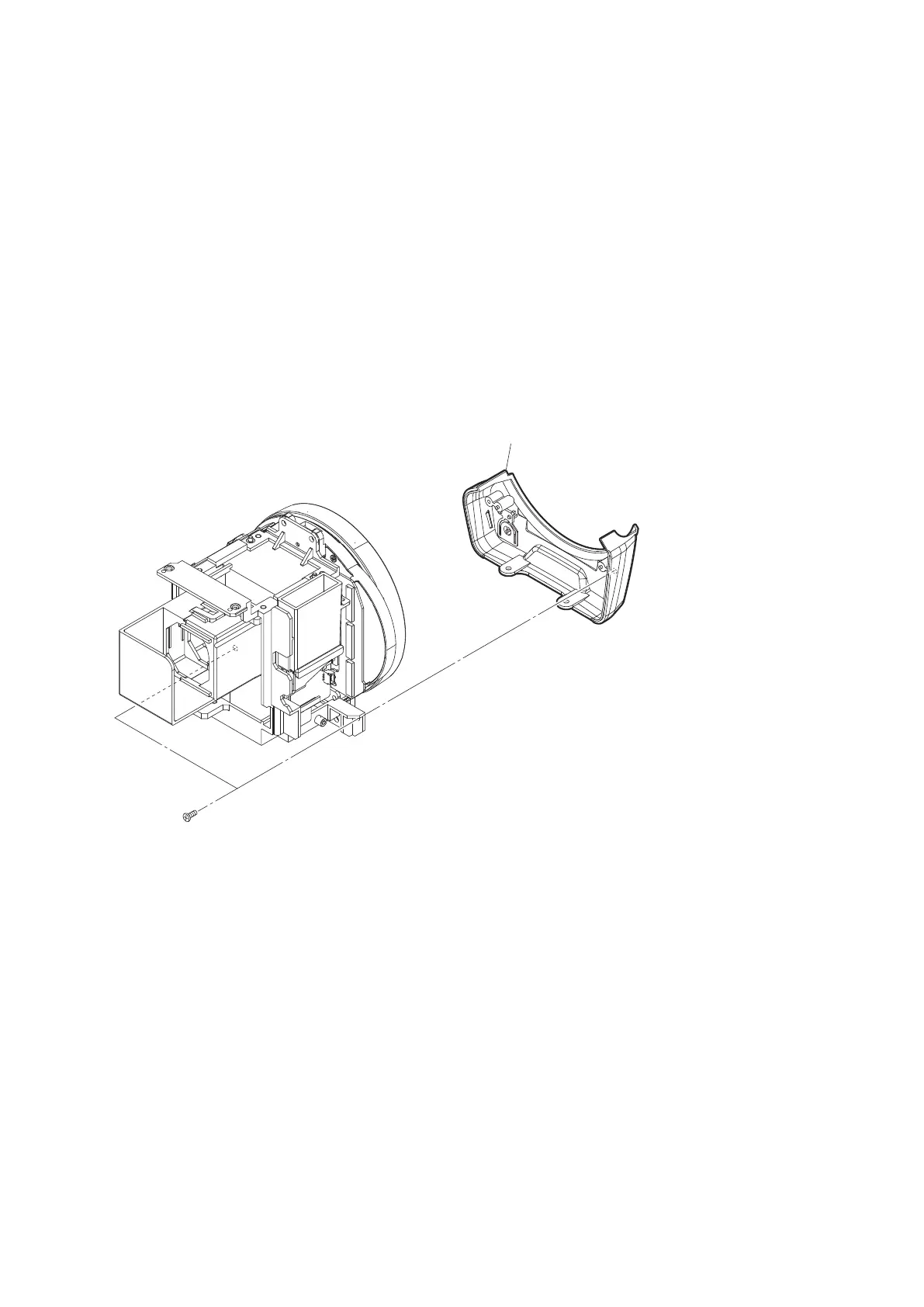

1. Remove the two screws to detach the front switch panel assembly.
TP2 x 4
Front switch panel assembly
2. Remove the CMOS harness guide sheet.
3. Remove the screw (P2 x 4) to detach the front harness cover.
PMW-300
2-53
