2-13. VPR-124 Board

Preparation

1. Remove the bottom panel assembly. (Refer to “2-5. Bottom Panel Assembly”)

2. Remove the inside panel assembly. (Refer to “2-6-1. Inside Panel Assembly”)

3. Remove the outside panel assembly. (Refer to “2-7-1. Outside Panel Assembly”)

4. Remove the rear panel assembly. (Refer to “2-8. Rear Panel Assembly”)

5. Remove the handle assembly. (Refer to “2-11-1. Handle Assembly”)

Procedure

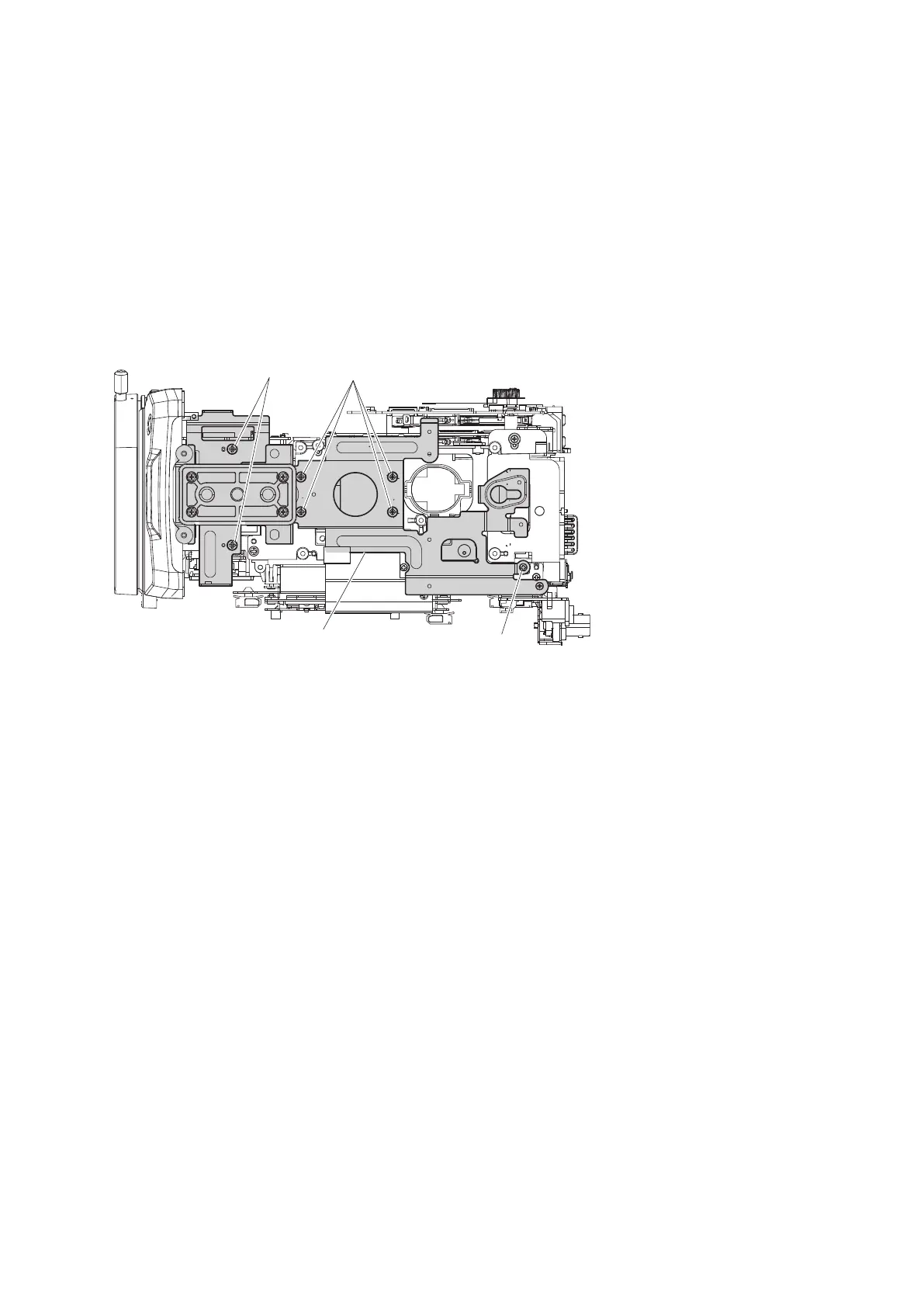

1. Remove the six screws (B2.6 x 5) and the screw (P2 x 4) to detach the bottom frame.

B2.6 x 5

P2 x 4

B2.6 x 5

Bottom frame

2. Remove the two screws to detach the top radiation sheet metal.

3. Remove the screw to detach the outside radiation plate.

4. Open the clamp and release the harness.

PMW-300

2-42
