2-11-3. KSW-65 Board

Preparation

1. Remove the bottom panel assembly. (Refer to “2-5. Bottom Panel Assembly”)

2. Remove the inside panel assembly. (Refer to “2-6-1. Inside Panel Assembly”)

3. Remove the outside panel assembly. (Refer to “2-7-1. Outside Panel Assembly”)

4. Remove the rear panel assembly. (Refer to “2-8. Rear Panel Assembly”)

5. Remove the handle assembly. (Refer to “2-11-1. Handle Assembly”)

6. Remove the handle U-case assembly. (Refer to “2-11-2. Handle U-case Assembly”)

Procedure

1. Disconnect the flexible flat cable from the connector (CN101) on the KSW-65 board.

2. Remove the five screws and lift up the KSW-65 board.

3. Disconnect the HN-413 board from the connector (CN400) on the KSW-65 board.

4. Disconnect the flexible flat cable from the connector (CN100) on the KSW-65 board.

5. Remove the JS knob from the KSW-65 board.

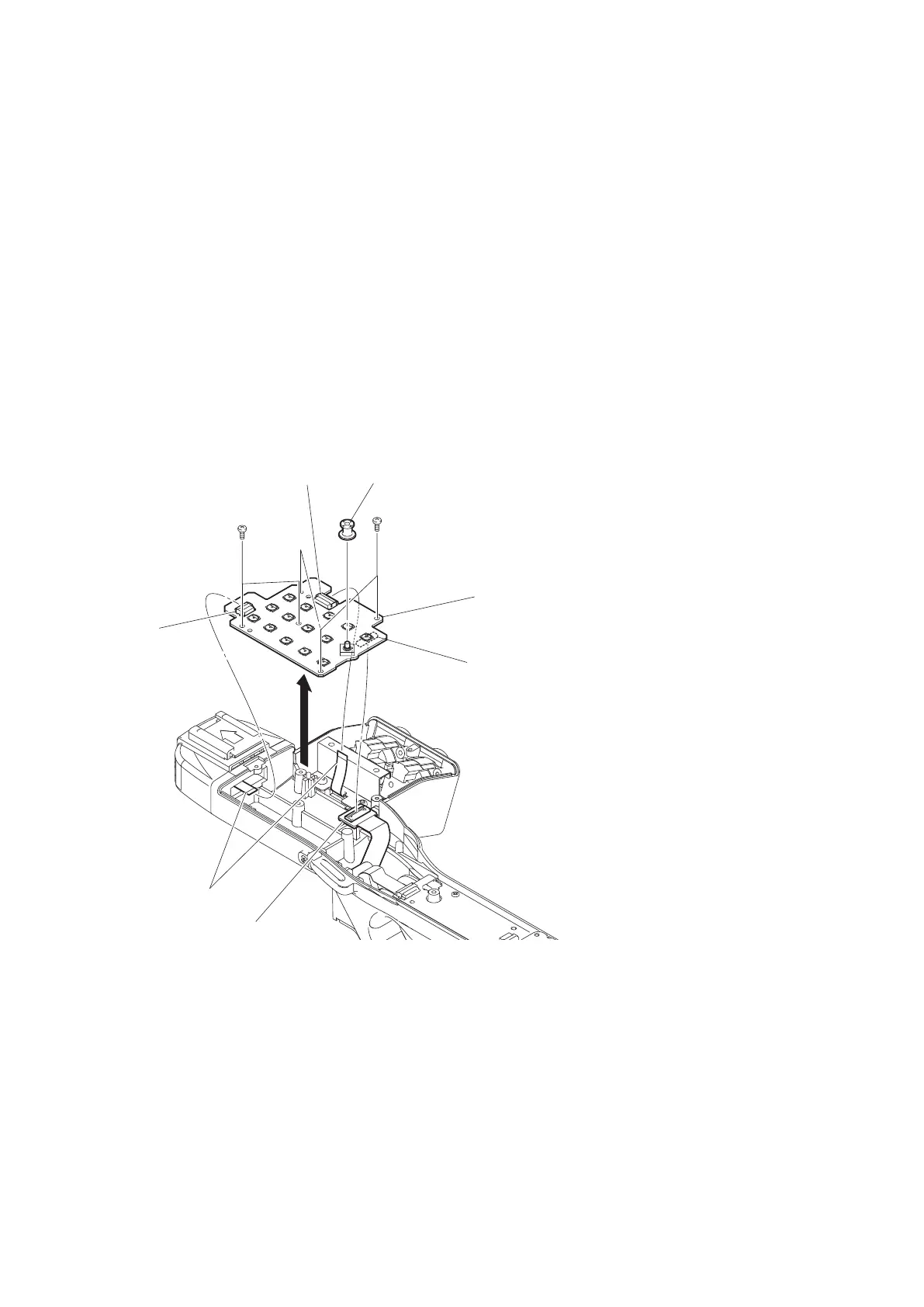

KSW-65 board

CN400

P2 x 4

JS knobCN101

P2 x 4

CN100

Flexible flat cables

HN-413 board

6. Install the removed parts by reversing the steps of removal.
