Section 4

Electrical Adjustment

4-1. Preparation

4-1-1. Notes on Adjustments

• When making electrical adjustment or self-diagnosis, contact your local Sony Sales Office/Service Center.

• When adjusting this unit, use an AC adapter or a fully-charged battery pack.

• When disconnecting the AC adapter or the battery pack after adjustment, turn off the power switch and

wait for at least 10 seconds.

4-1-2. Service Tools and Equipment

Measuring Equipment

Equipment Model name

HD waveform monitor LEADER ELECTRONICS CORP. LV5152DA or equivalent

Color monitor Sony HDM-20E1U/14E1U/14E5U or equivalent

Luminance meter Konica Minolta LS-110 or equivalent

Tools

Tool Part No.

Grayscale chart (reflective type) (16:9) Commercially available

Star chart (reflective type) Commercially available

Grayscale chart (transparent type) (16:9) J-6394-080-A

Pattern box PTB-500 J-6029-140-B

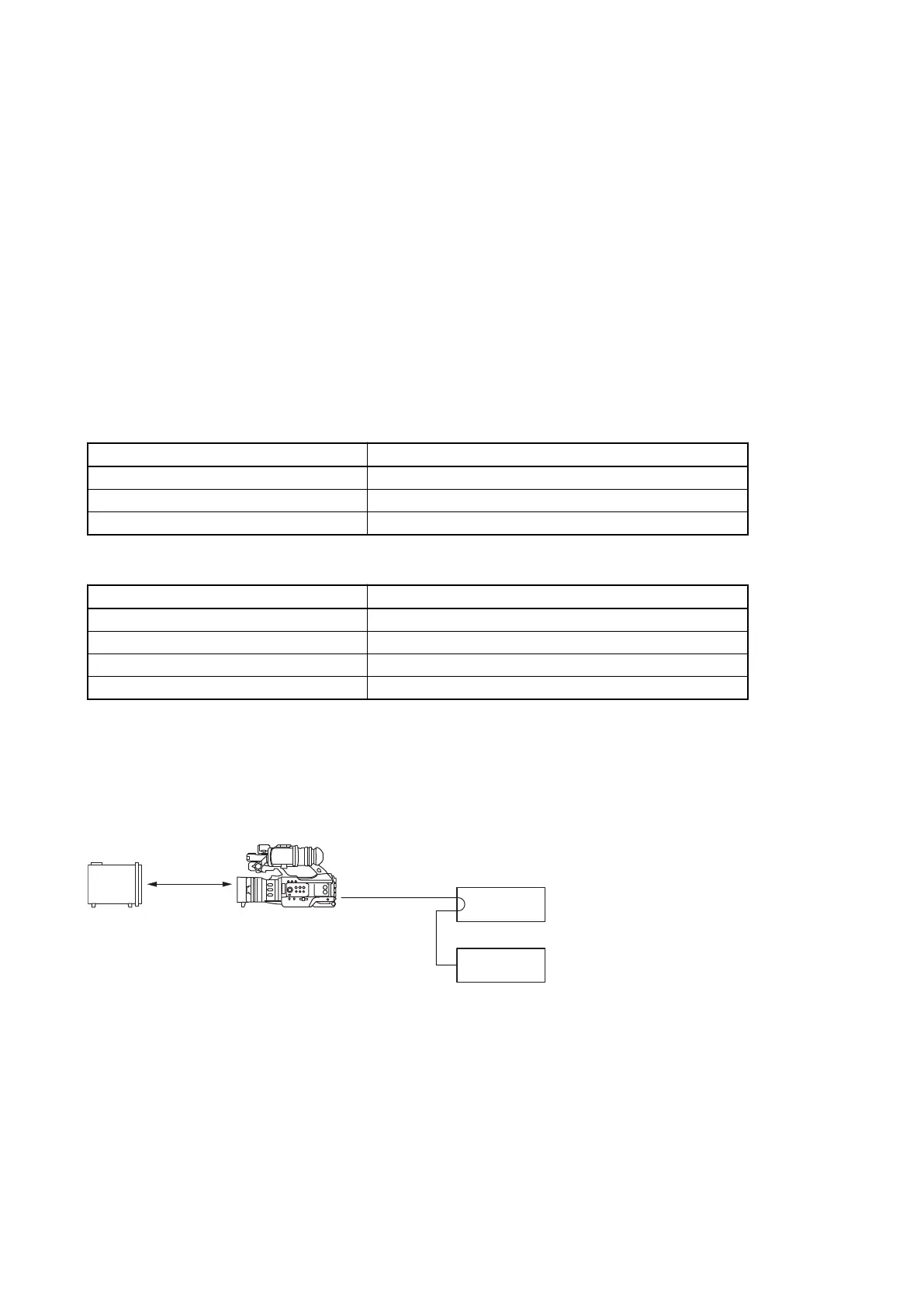

4-1-3. Connection

Connect an HD waveform monitor to the SDI OUT connector of the unit.

Pattern box

PTB-500

SDI OUT

HD-SDI

PMW-300

HD waveform monitor

Color monitor

2 to 3 m

PMW-300

4-1
