2-3-3. VF Loupe
Preparation
1. Remove the VF assembly. (Refer to “2-3-1. VF Assembly”)
2. Remove the loupe assembly. (Refer to “2-3-2. Loupe Assembly”)
Procedure

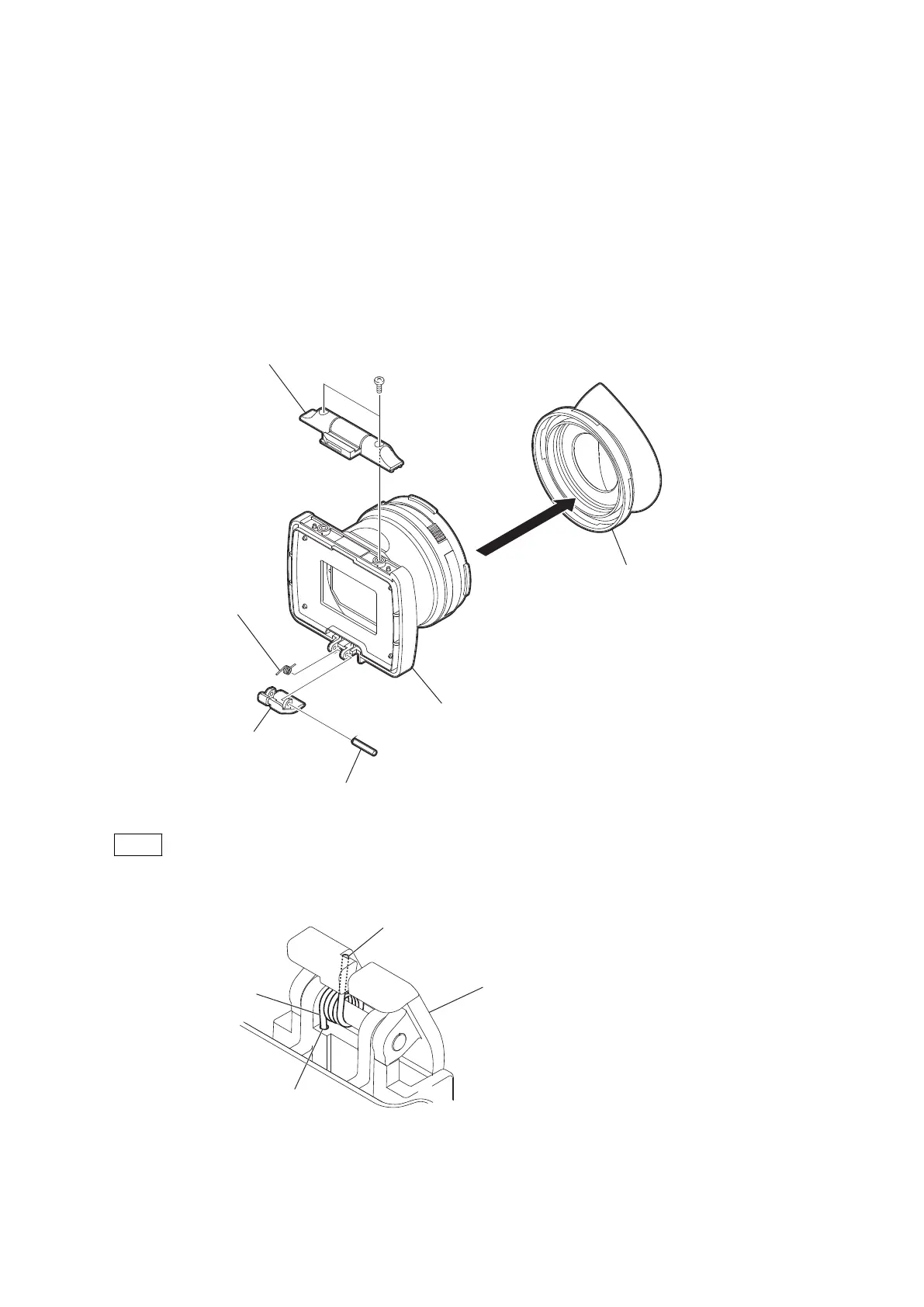

1. Detach the eye cup.
2. Remove the two screws to detach the switching hinge block.
3. Remove the spring pin, spring, and lock lever from the VF loupe.
Lock lever
Spring pin
Spring
Switching hinge block
P2.6 x 4
Eye cup
VF loupe
Note
When installing the spring, pay attention to its orientation.
Long
Short
Hole
Lock lever
4. Install the removed parts by reversing the steps of removal.
