2-10. IO Block

Preparation

1. Remove the bottom panel assembly. (Refer to “2-5. Bottom Panel Assembly”)

2. Remove the inside panel assembly. (Refer to “2-6-1. Inside Panel Assembly”)

3. Remove the outside panel assembly. (Refer to “2-7-1. Outside Panel Assembly”)

4. Remove the rear panel assembly. (Refer to “2-8. Rear Panel Assembly”)

Procedure

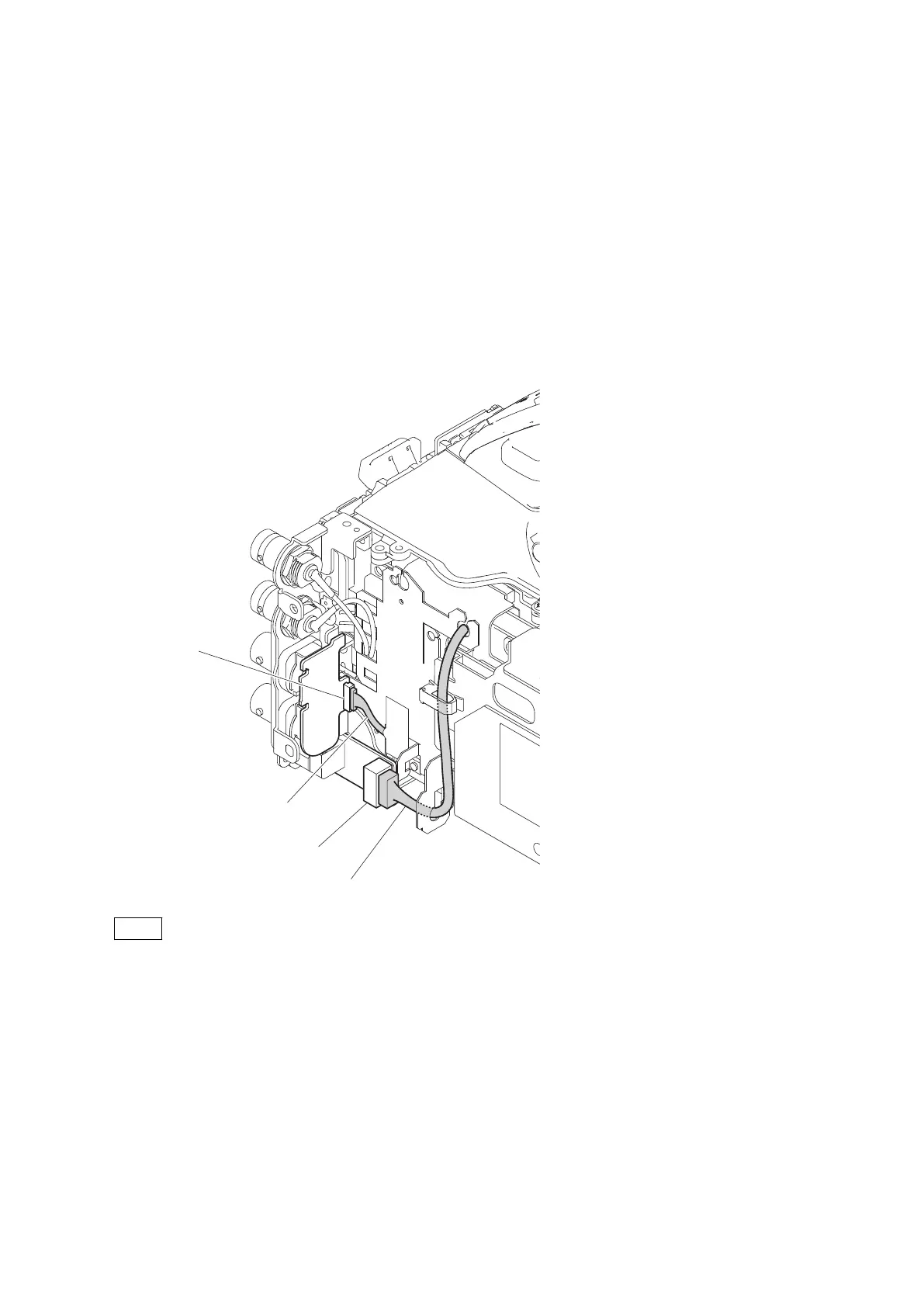

1. Disconnect the harness from the connector on the IO-259 board.

2. Disconnect the harness from the connector on the DC-169 board.

Connector

(IO-259 board)

Connector

(DC-169 board)

Harness

Note

When connecting the harnesses, arrange the harnesses as shown in the figure.

3. Remove the two screws and pull out the IO block.

PMW-300

2-31
