2-20. Prism Block Assembly

Preparation

1. Remove the bottom panel assembly. (Refer to “2-5. Bottom Panel Assembly”)

2. Remove the inside panel assembly. (Refer to “2-6-1. Inside Panel Assembly”)

3. Remove the outside panel assembly. (Refer to “2-7-1. Outside Panel Assembly”)

4. Remove the rear panel assembly. (Refer to “2-8. Rear Panel Assembly”)

5. Remove the handle assembly. (Refer to “2-11-1. Handle Assembly”)

6. Remove the IO block. (Refer to “2-10. IO Block”)

7. Remove the DCP-64 board. (Refer to “2-14. DCP-64 Board”)

8. Remove the front lens assembly. (Refer to “2-15. Front Lens Assembly”)

9. Remove the lens unit. (Refer to “2-19. Lens Unit”)

Procedure

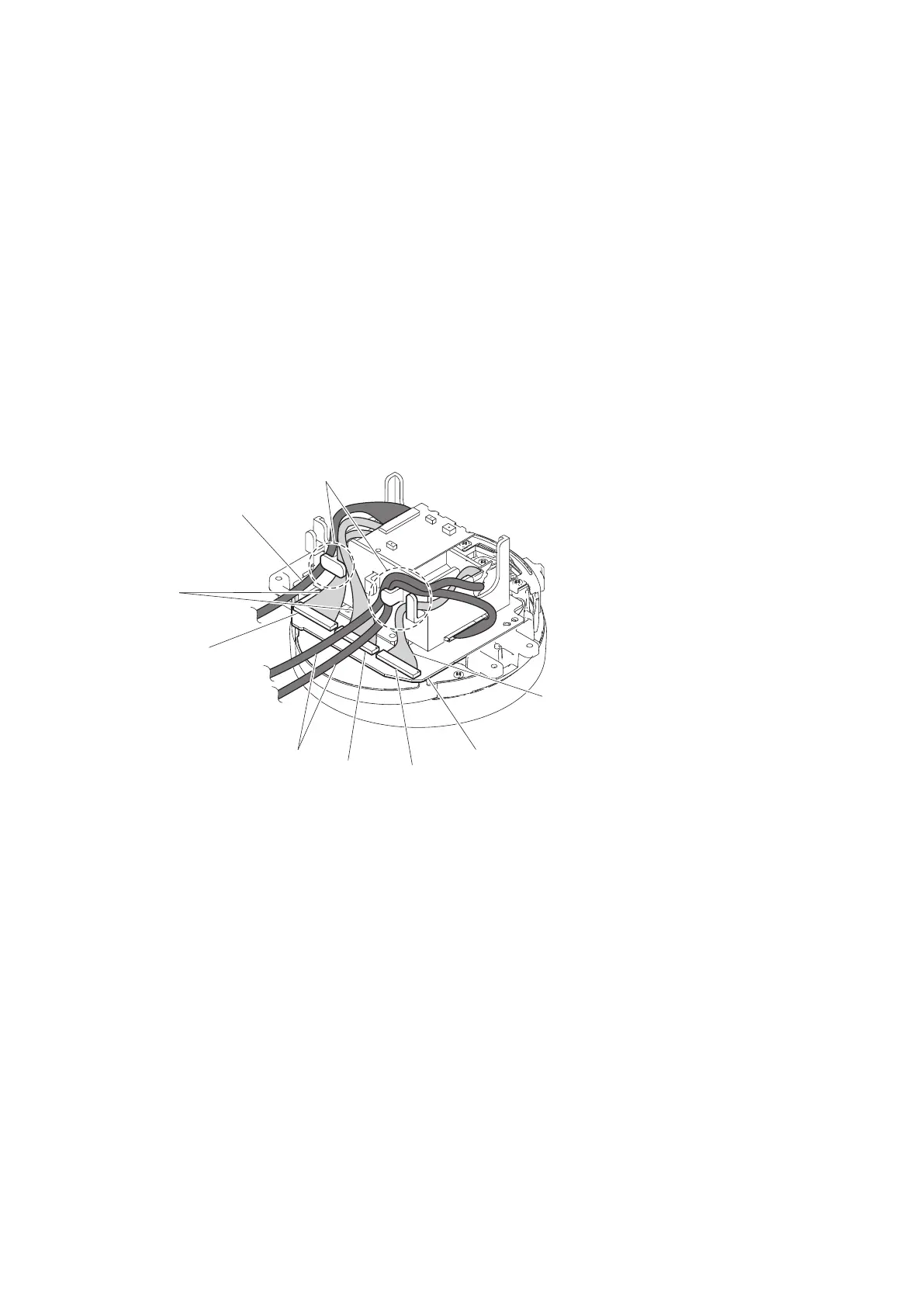

1. Disconnect the three harnesses from the three connectors (CN100, CN101, and CN102) on the SE-1139 board.

2. Release the three harnesses and the three fine-wire coaxial cables from the three claws.

Claws

CN101

Harnesses

CN100

CN102

SE-1139 board

Fine-wire coaxial cables

Fine-wire coaxial cable

Harness

PMW-300

2-55
