2-9. SxS Block

2-9-1. SxS Slot Assembly

Preparation

1. Remove the bottom panel assembly. (Refer to “2-5. Bottom Panel Assembly”)

2. Remove the inside panel assembly. (Refer to “2-6-1. Inside Panel Assembly”)

Procedure

1. Disconnect the flexible flat cable from the connector on the SWC-56 board.

2. Disconnect the two fine-wire coaxial cables from the connector on the SWC-56 board and the connector on the

EC-78 board.

3. Disconnect the harness from the connector on the IF-1244 board.

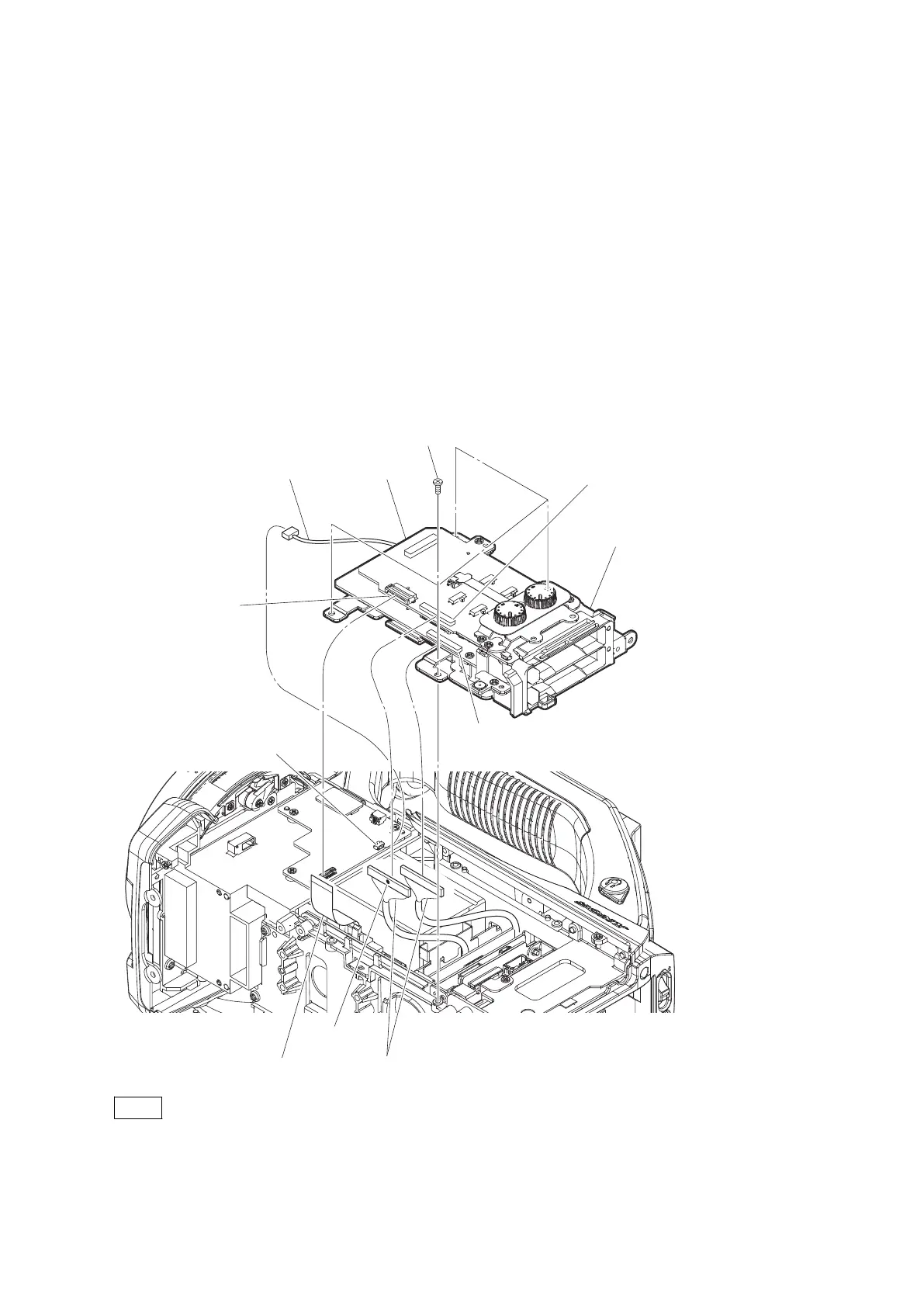

4. Remove the four screws to detach the SxS slot assembly.

Precision screws

(P2 x 4)

Connector

(IF board)

Harness SWC board

Connector

(EC board)

Connector

SxS slot assembly

Fine-wire coaxial cables

Mark

Flexible flat cable

Note

When reconnecting the fine-wire coaxial cables, connect correct connectors.

5. Install the removed parts by reversing the steps of removal.

PMW-300

2-28
