2-11. Handle Block

2-11-1. Handle Assembly

Preparation

1. Remove the bottom panel assembly. (Refer to “2-5. Bottom Panel Assembly”)

2. Remove the inside panel assembly. (Refer to “2-6-1. Inside Panel Assembly”)

3. Remove the outside panel assembly. (Refer to “2-7-1. Outside Panel Assembly”)

4. Remove the rear panel assembly. (Refer to “2-8. Rear Panel Assembly”)

Procedure

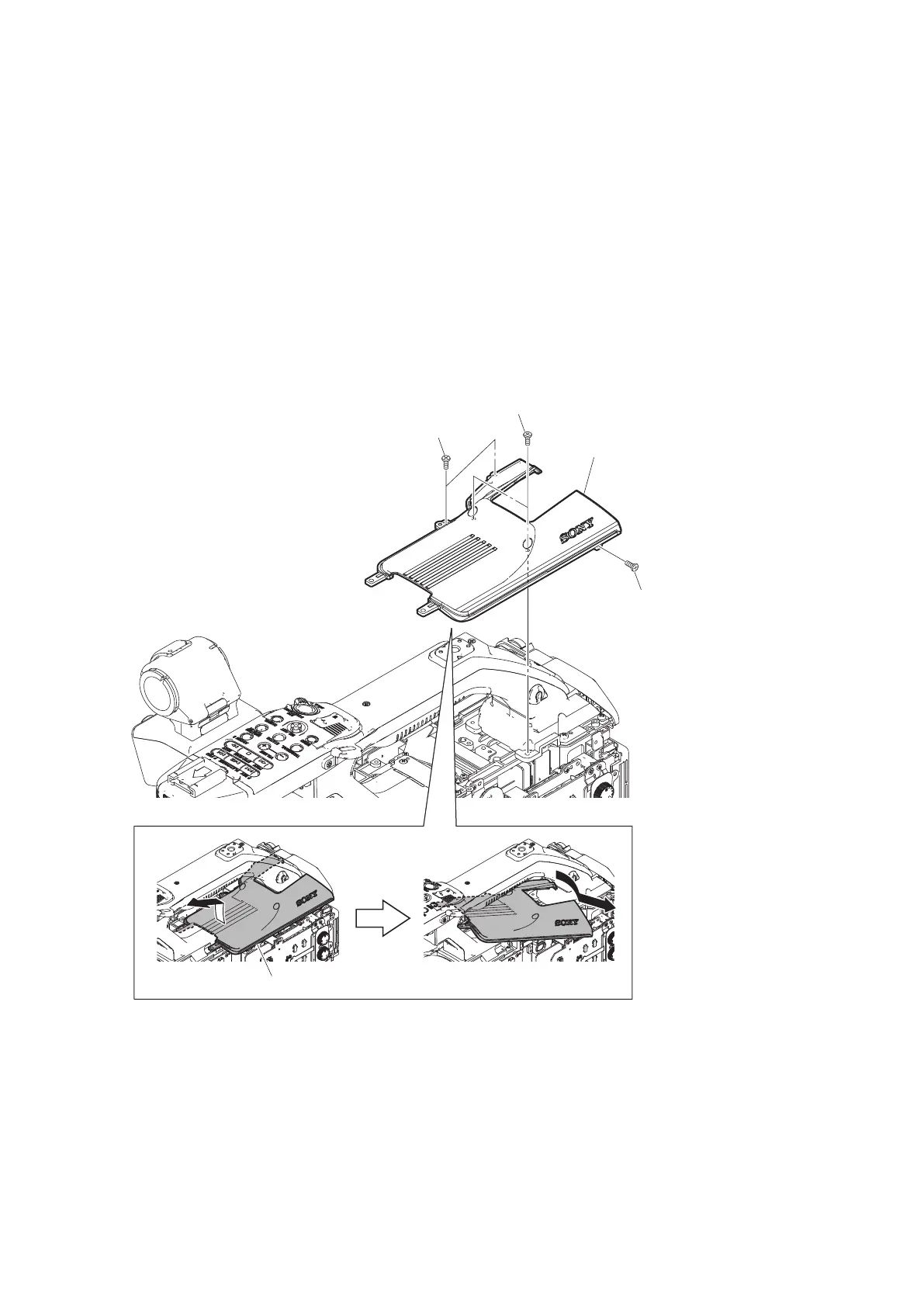

1. Remove the five screws to detach the top panel in the direction of the arrow.

Precision screws

(P2 x 5)

Precision screws

(P2 x 5)

Precision screw

(P2 x 5)

Top panel

2. Disconnect the HN-413 board from the connector in the IF-1244 board.

PMW-300

2-33
