2-7. Outside Section

2-7-1. Outside Panel Assembly

Preparation

1. Remove the VF assembly. (Refer to “2-3-1. VF Assembly”)

2. Remove the bottom panel assembly. (Refer to “2-5. Bottom Panel Assembly”)

Procedure

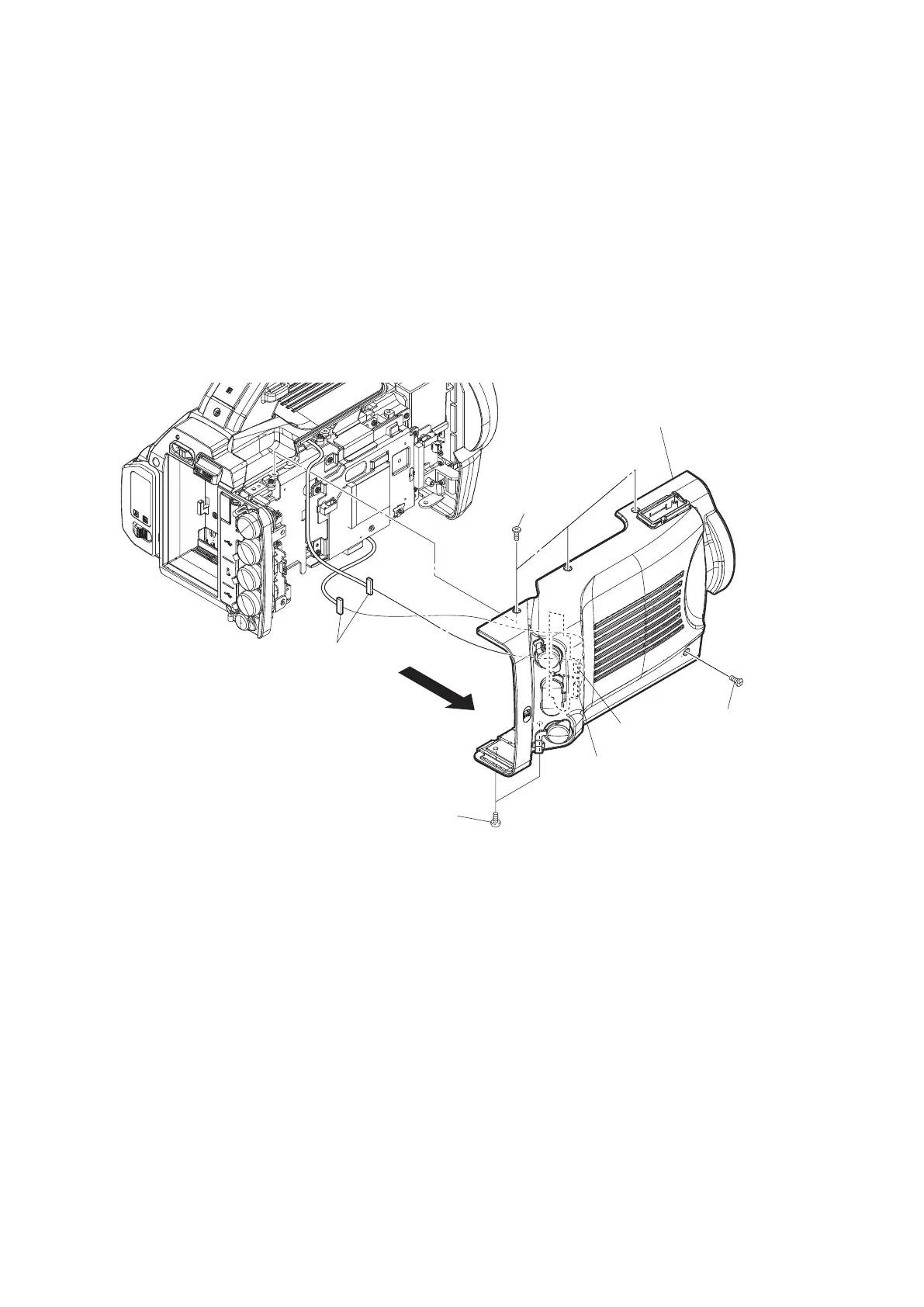

1. Remove the six screws and pull out the outside panel assembly in the direction of the arrow.

2. Disconnect the two harnesses from the connector on IO-258 board and connector on IO-260 board and detach the

outside panel assembly.

Connector

(IO-258 board)

Connector

(IO-260 board)

P2 x 5

Outside panel assembly

Harnesses

3. Install the removed parts by reversing the steps of removal.

PMW-300

2-25
