2-3-4. Elbow Assembly

Preparation

1. Remove the VF assembly. (Refer to “2-3-1. VF Assembly”)

2. Remove the loupe assembly. (Refer to “2-3-2. Loupe Assembly”)

Procedure

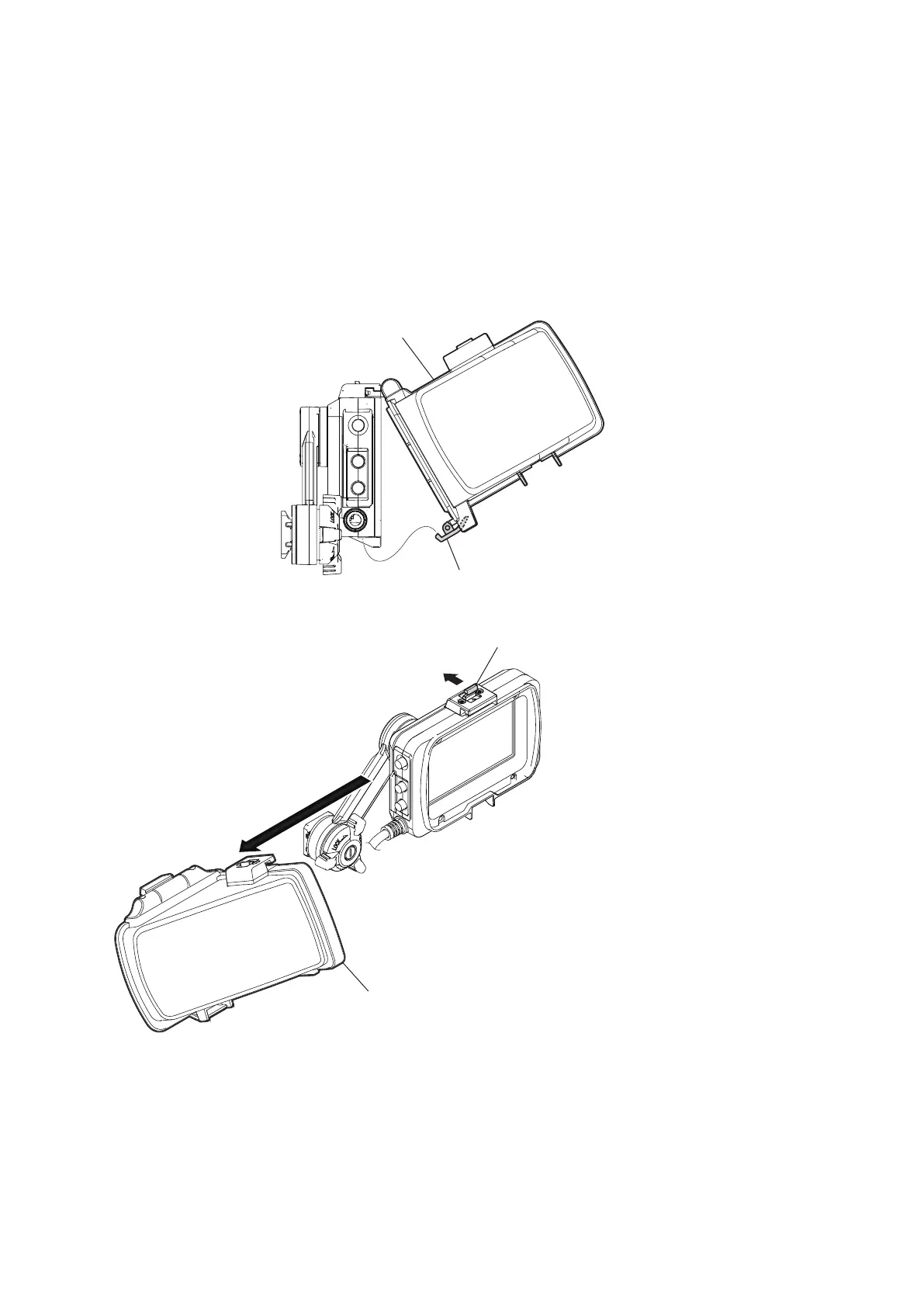

1. Release the lock lever and open the elbow assembly.

Elbow assembly

Front View

Lock lever

2. Remove the elbow assembly in the arrow B direction while sliding the slide switch in the arrow A direction.

Elbow assembly

Slide switch

3. Install the removed parts by reversing the steps of removal.

PMW-300

2-12
