2-3-6. SW-1603 Board/VR-351 Board

Preparation

1. Remove the elbow assembly. (Refer to “2-3-4. Elbow Assembly”)

Procedure

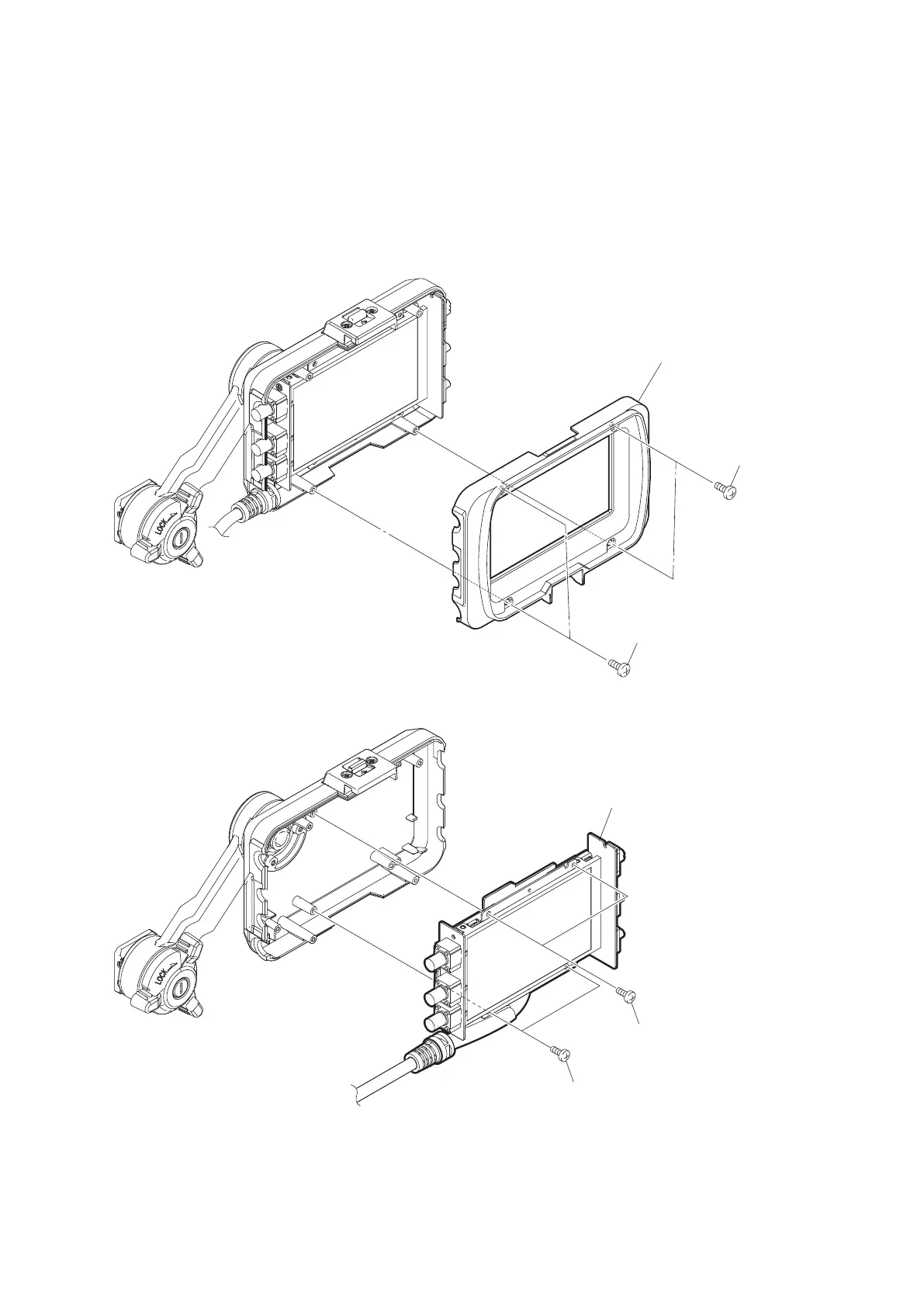

1. Remove the four screws to detach the VF case (front).

VF case (front)

B2 x 5

2. Remove the four screws to detach the LCD block.

P2 x 3

LCD block

P2 x 3

3. Disconnect the harness from the connector (CN100) on the VR-351 board.

4. Remove the screw to detach the VR-351 board.

5. Disconnect the harness from the connector (CN100) on the SW-1603 board.

6. Remove the three switch knobs (VF).

PMW-300

2-14
