2-11-5. HN-411 Board

Preparation

1. Remove the bottom panel assembly. (Refer to “2-5. Bottom Panel Assembly”)

2. Remove the inside panel assembly. (Refer to “2-6-1. Inside Panel Assembly”)

3. Remove the outside panel assembly. (Refer to “2-7-1. Outside Panel Assembly”)

4. Remove the rear panel assembly. (Refer to“2-8. Rear Panel Assembly”)

5. Remove the handle assembly. (Refer to “2-11-1. Handle Assembly”)

6. Remove the handle U-case assembly. (Refer to “2-11-2. Handle U-case Assembly”)

Procedure

1. Remove the four screws to detach the rear shoe.

2. Disconnect the two flexible flat cables from the two connectors (CN100, CN102) on the HN-411 board.

3. Remove the two screws to detach the HN-411 board.

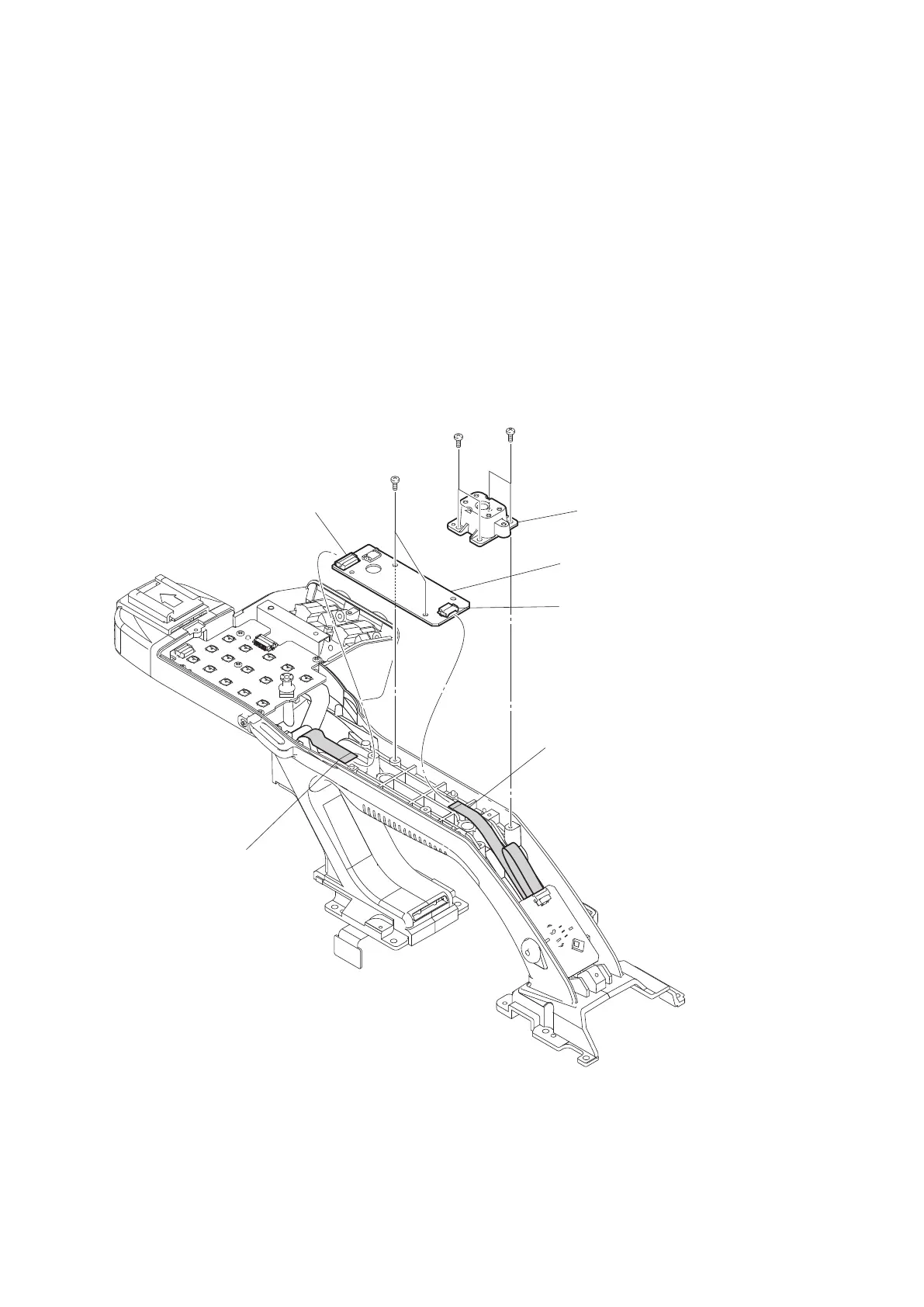

Flexible flat cable

CN102

HN-411 board

Rear shoe

CN100

P2 x 4

4. Install the removed parts by reversing the steps of removal.

PMW-300

2-40
